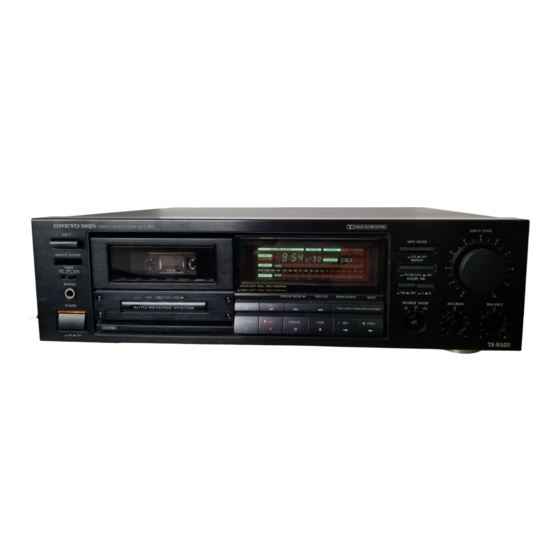

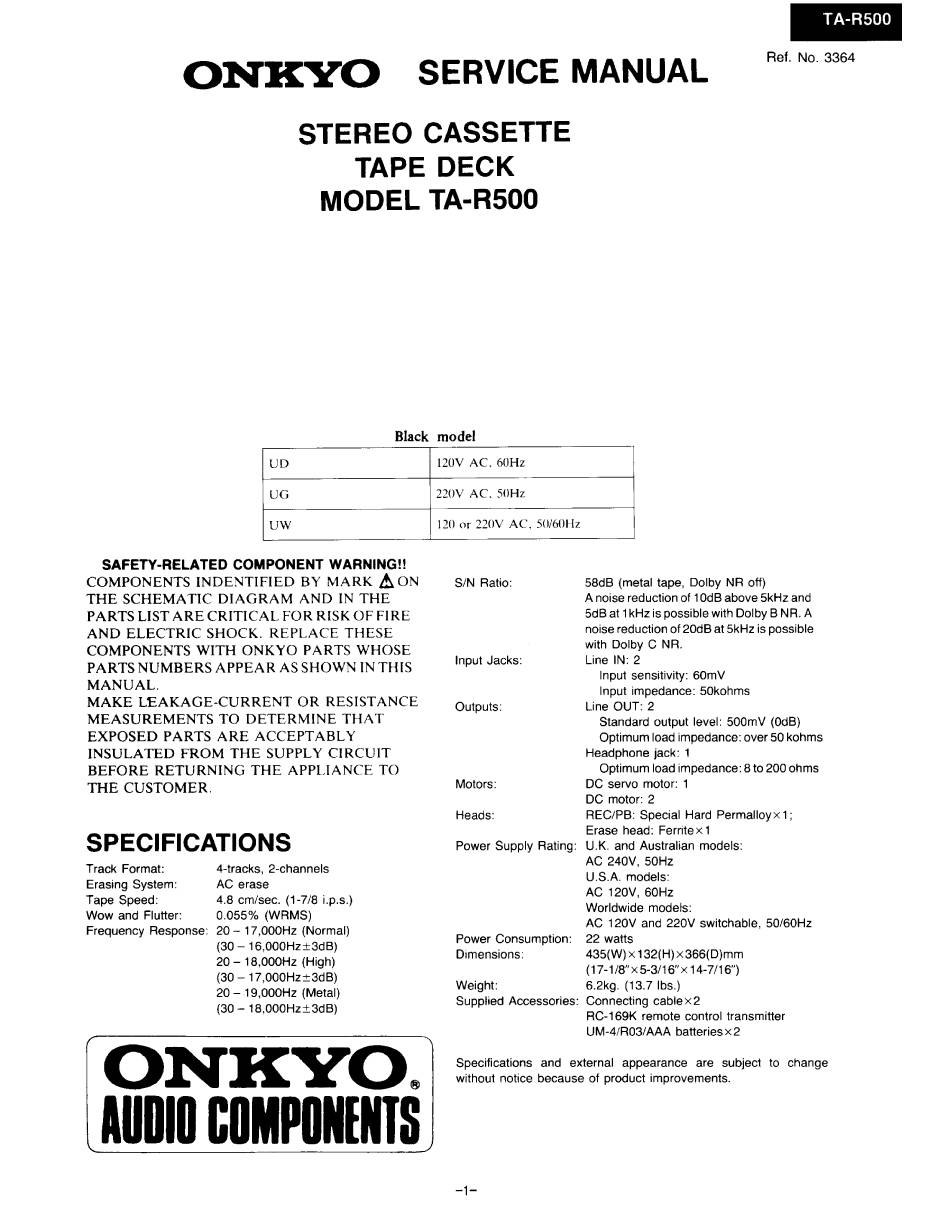

Onkyo TA-R500 Service Manual

TA-R500
Ref. No. 3364
Black model
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS INDENTIFIED BY MARK AON
THE SCHEMATIC DIAGRAM AND IN THE
PARTS LIST ARE CRITICAL FOR RISK OF FIRE
AND ELECTRIC SHOCK. REPLACE THESE
COMPONENTS WITH ONKYO PARTS WHOSE
PARTS NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY
INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
SPECIFICATIONS
Track Format: 4-tracks, 2-channels
Erasing System: AC erase
Tape Speed: 4.8 cm/sec. (1-7/8 i.p.s.)
Wow and Flutter: 0.055% (WRMS)
Frequency Response: 20 — 17,000Hz (Normal)
(30 — 16,000Hz+3dB)
20 — 18,000Hz (High)
(30 — 17,000Hz+3dB)
20 — 19,000Hz (Metal)
(30 — 18,000Hz+ 3dB)
ONKYO.
AUDIO COMPONENTS
120V AC, 60Hz
220V AC, S50Hz
120 or 220V AC, 50/60Hz
S/N Ratio: 58cB (metal tape, Dolby NR off)
A noise reduction of 10dB above 5kHz and
5dB at 1kHz is possible with Dolby BNR. A
noise reduction of 20dB at 5kHz is possible
: with Dolby C NR.
Input Jacks: Line IN: 2
Input sensitivity: 6OmMV
Input impedance: 50kohms
Outputs: Line OUT: 2
Standard output level: 500mV (OdB)
Optimum load impedance: over 50 kohms
Headphone jack: 1
Optimum load impedance: 8 to 200 ohms
Motors: DC servo motor: 1
DC motor: 2
Heaas: REC/PB: Special Hard Permalloy x 1;
Erase head: Ferrite x 1
Power Supply Rating: U.K. and Australian models:
AC 240V, 50Hz
U.S.A. models:
AC 120V, 60Hz
Worldwide models:
AC 120V and 220V switchable, 50/60Hz
Power Consumption: 22 watts
Dimensions: 435(W) x 132(H) x 366(D)mm
(17-1/8" x 5-3/16" x 14-7/16")
Weight: 6.2kg. (13.7 Ibs.)
Supplied Accessories: Connecting cablex2
RC-169K remote control transmitter
UM-4/R03/AAA batteries x2
Specifications and external appearance are subject to change
without notice because of product improvements.
