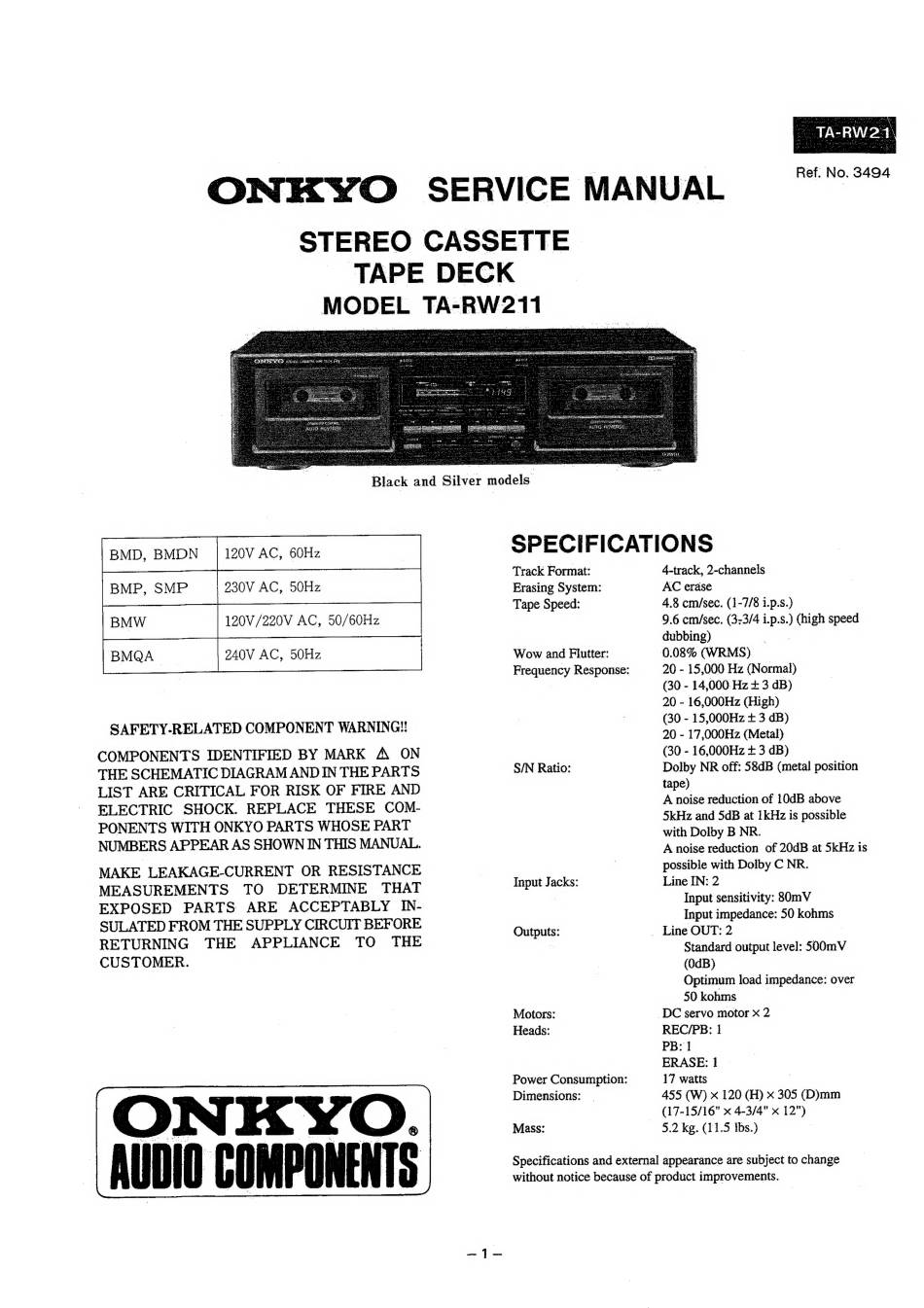

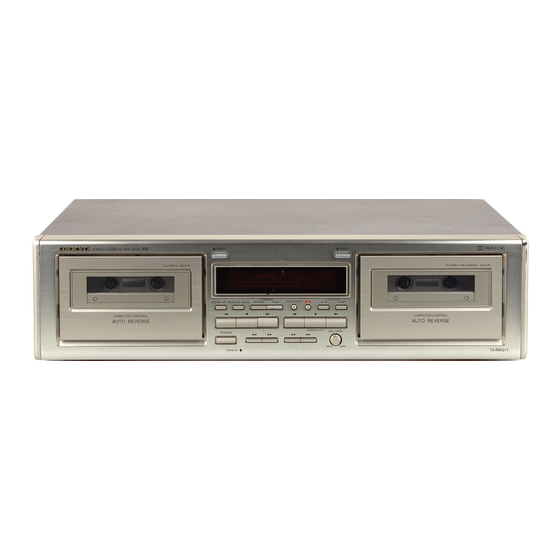

Onkyo TA-RW211 Service Manual

ONKYO
SERVICE MANUAL
STEREO CASSETTE
TAPE DECK
MODEL TA-RW211
Black and Silver models
Ref. No. 3494
SPECIFICATIONS
Track Format: 4-track, 2-channels
Erasing System: AC erase
Tape Speed: 4.8 cm/sec. (1-7/8 1.p.s.)
Wow and Flutter:
Frequency Response:
S/N Ratio:
Input Jacks:
Outputs:
Motors:
Heads:
Power Consumption:
Dimensions:
Mass:
9.6 cm/sec. (3-3/4 i.p.s.) (high speed
dubbing) ,
0.08% (WRMS)
20 - 15,000 Hz (Normal)
(30 - 14,000:Hz + 3 dB)
20 - 16,000Hz (High)
(30 - 15,000Hz + 3 dB)
20 - 17,000Hz (Metal)
(30 - 16,000Hz + 3 dB)
Dolby NR off: 58dB (metal position
tape)
A noise reduction of 10dB above
5kHz and 5dB at 1kHz is possible
with Dolby B NR.
A noise reduction of 20dB at 5kHz is
possible with Dolby C NR.
Line IN: 2
Input sensitivity: 80mV
Input impedance: 50 kohms
_ Line OUT: 2
Standard output level: 500mV
(OdB)
Optimum load impedance: over
50 kohms |
DC servo motor x 2
REC/PB: 1
PB: 1
ERASE: 1 |
17 watts
455 (W) x 120 CH) x 305 (D)mm
(17-15/16" x 4-3/4" x 12")
5.2 kg. (11.5 Ibs.)
Specifications and external appearance are subject to change
without notice because of product improvements.
