2.3 coNTrol PaNEl

24
25
26
27
28
29

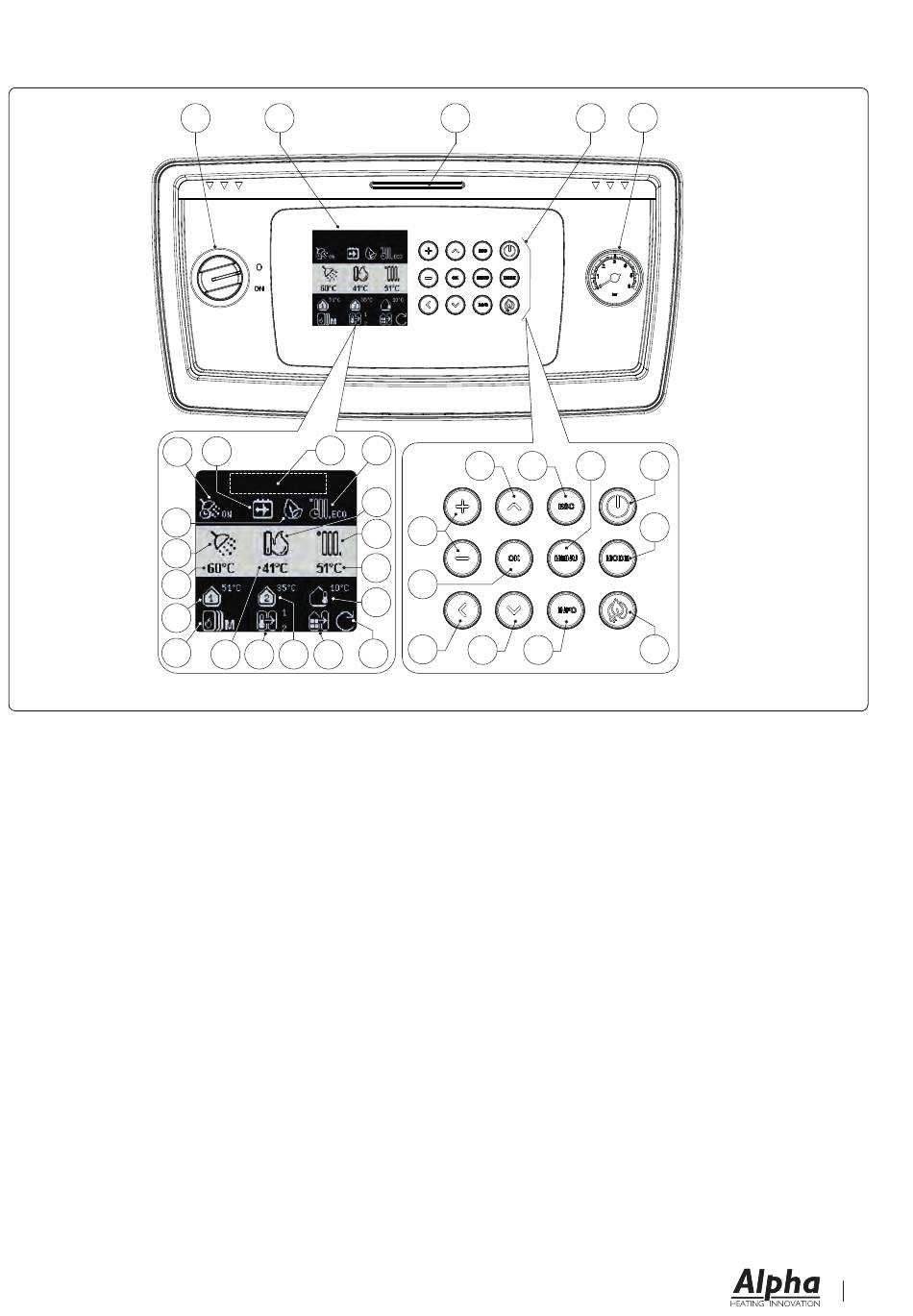

Key (Fig. 34):
1 - Main switch
2 - Multifunction display (main screen)
3 - Sliding door
4 - Function keys
5 - Instrument pressure gauge
6 - Menu scroll buttons
7 - Return to main screen button
8 - Menu button. Used to allow access to the User and Installer menu
9 - Standby button. Used to put the boiler in standby mode; press
approx. 3 seconds to change the operating state.
10 - Mode button. Used to enable/disable central heating and/or
DHW sequentially; press approx. 1 second to change operating
status.
11 - Eco button. Used to manually enable the Eco function; press
approx. 1 second to change the operating state.
12 - Info button. Used to display diagnostic elements directly
13 - Back function button
14 - OK button
15 - Increases and decreases the selected value
16 - Active when updating parameters
17 - Active when external probe connected
1 2
23 22
30 31 32 33
3
21
6 7
20
15
19
18
14
17
13 6 12
16
18 - Indicates the central heating setpoint temperature
19 - Central heating mode enabled
20 - Indicates burner on and relative output scale
21 - Hourly heating programming active mode (ON, OFF, ECO) of
central heating schedule
22 - Indicates date and time or alarm with error
23 - Active holiday mode
24 - Hourly programming of active DHW
- Active mode (ON, OFF, ECO) of DHW schedule
25 - Active when ECO mode is manually activated
26 - DHW mode enabled
27 - Indicates the DHW setpoint with probe
28 - Icon and setpoint Zone 1
29 - Indicates the presence of the simple cascade
- Indicates the role of the boiler in the simple cascade
30 - Boiler flow temperature
31 - Indicates the presence of an OpenTherm device
- Indicates the zone for the OpenTherm device
32 - Icon and setpoint Zone 2
33 - Indicates the presence of an external device connected via BUS
4 5
8 9
10
11
Fig. 34
