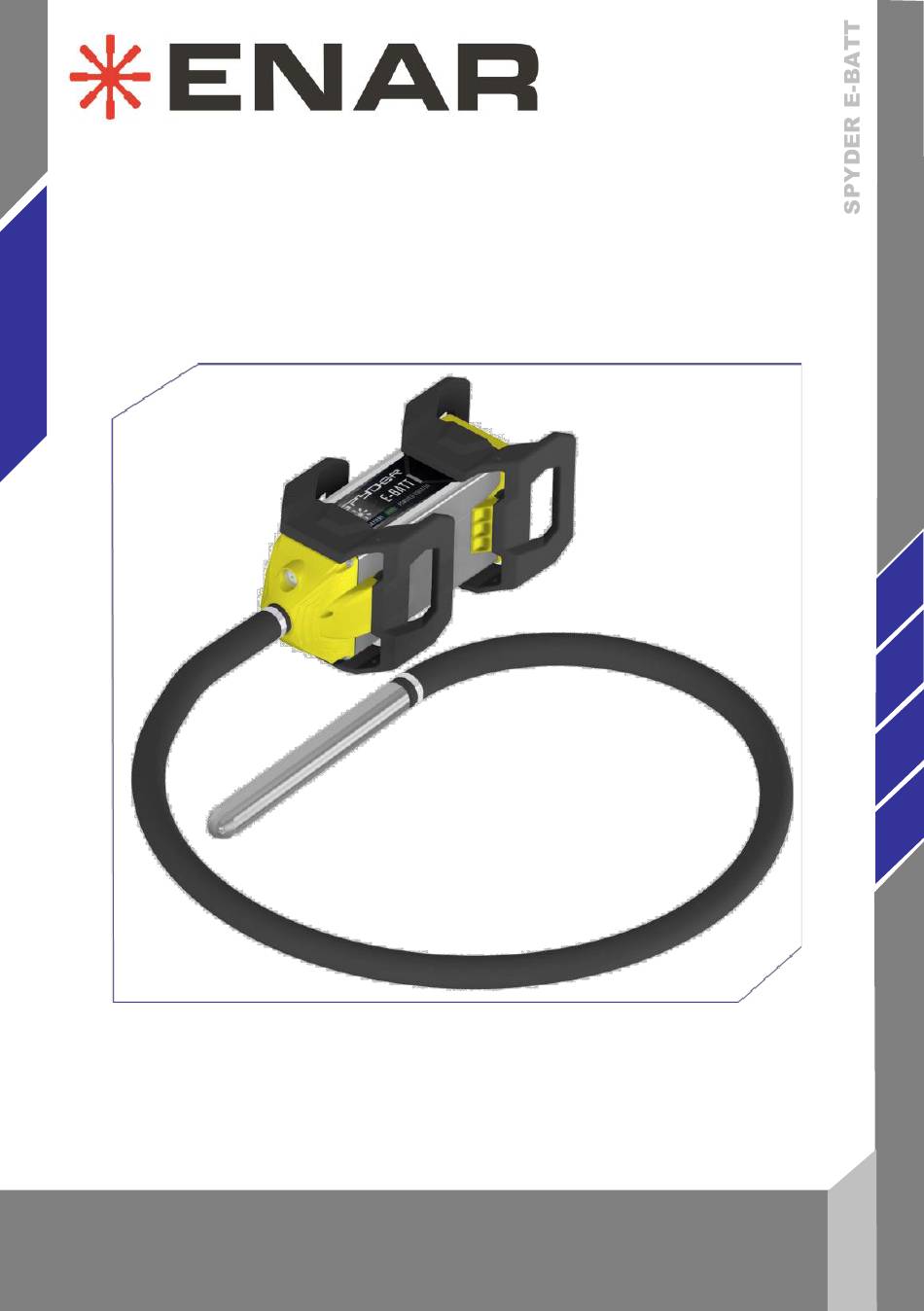

- Page 1 FRECUENCY CONVERTER AND POKERS Instruction manual MX-805-0907 MX-811-2401 MX-805-1301...
-
Page 3: Table Of Contents
4.5 MAINTENANCE 4.6 STORAGE 4.7 TRANSPORTATION 4.8 WASTE DISPOSAL 4.9 MAINTENANCE OF THE VIBRATING POKERS LOCATING MALFUNCTIONS INSTRUCTIONS TO ORDER SPARE PARTS 6.1 INSTRUCTIONS TO ORDER SPARE PARTS 6.2 INSTRUCTIONS TO REQUEST WARRANTIES USAGE RECOMMENDATIONS BATTERY POWERED ELECTRONIC CONVERTER SPYDER E-BATT... -
Page 4: Introduction
INTRODUCTION Thank you for trusting the ENAR brand. For the maximum performance of the equipment, we recommend to read carefully the safety recommendations, maintenance, and usage listed in this manual. Defective parts must be replaced immediately to avoid major problems. -
Page 5: Characteristics
Detachable 7Ah 57,6V Li-ion type. - HOUSING Aluminium and polyamide housing that protects the electronic board and the battery from external agents. Handles with rubber reinforcement to absorb impacts. 2.1 CHARACTERISTICS OF THE FREQUENCY CONVERTER MODEL: SPYDER E-BATT POKER HOSE BATTERY ACCESS DOOR... - Page 6 Beschleunigung Force centrifuge MODELL Stromstärke (Leistung) Vibrationsleistung Fliehkraft Aceleração MODELO Intensidade (potência) Capacidade vibratória (m/s Força centrífuga SPYDER E-BATT M38 8 (580W) 12.000 1,73 SPYDER E-BATT M5 10,5 (850W) 12.000 2,34 SPYDER E-BATT M6 15 (1000W) 12.000 1,99 *According to ISO5349, hanging the hose at 2m. of the poker and working unloaded the poker.
-
Page 7: Battery Description
2.3 CHARGER DESCRIPTION The SPYDER E-BATT charger has a connector for the battery and a cable with a plug that connects the charger to the mains. It includes a LED indicator by which the user can check the state ot the charge, red when charging and green when the battery is fully charged. -
Page 8: Usage Conditions
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. BATTERY POWERED ELECTRONIC CONVERTER SPYDER E-BATT... -
Page 9: Use Of Power Tool
Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130° C (265 °F) may cause explosion. BATTERY POWERED ELECTRONIC CONVERTER SPYDER E-BATT... -
Page 10: Service
3.7 ELECTRICAL SAFETY (BATTERY 81100) Charge the battery only with the charger 104519 supplied by ENAR. Make a full charge of the battery before using it. Do not overcharge the battery. Once the LED indicator on the charger changes its status to GREEN, unplug the connector from the charger and then, disconnect the charger from the mains. -
Page 11: Specific Safety Rules
Connect the vibrator to the converter. When a defect or a malfunction has been detected, endangering the use of this machine or not, stop the work and make the correspondent maintenance to avoid any danger or bigger damage. BATTERY POWERED ELECTRONIC CONVERTER SPYDER E-BATT... -
Page 12: Connection Of The Charger To The Mains (Charger)
This equipment is governed by the European directive on waste electrical and electronic equipment (WEEE) and the corresponding national laws. Disposal of the battery must be done through your dealer, the manufacturer or at the battery waste management points designated BATTERY POWERED ELECTRONIC CONVERTER SPYDER E-BATT... -
Page 13: Maintenance Of The Vibrating Pokers
Charge battery and close door charge. See point 4.4, page 10 open and discharged battery. • 1000ms = 1 second When a failure warning occurs, press ON/OFF button to reset the alarm. ON/OFF BUTTON BATTERY POWERED ELECTRONIC CONVERTER SPYDER E-BATT... -
Page 14: Instructions To Order Spare Parts
4.- The warranty will be void if any equipment has been previously handled by personnel outside of ENARCO, S.A. or not authorized by it. ENARCO, S.A., reserves the right to modify any part of this manual without prior notice. BATTERY POWERED ELECTRONIC CONVERTER SPYDER E-BATT... -
Page 15: Usage Recommendations
10.- Follow the maintenance instructions for the vibrator. 11.- To achieve a good concrete structure we must start from the appropriate components and perform a vibration of the concrete mass throughout the structure. BATTERY POWERED ELECTRONIC CONVERTER SPYDER E-BATT... - Page 16 Technical documentation responsible ~ Responsable of the Documentation Technnique ~ zuständigen technishen Dokumentation Zaragoza, 23/09/2022 David Gascón General Manager ENARCO,S.A. ENARCO, S.A. Tfno. (34) 976 464 090 e-mail: enar@enar.es C/ Burtina, 16 (34) 976 464 091 Web: http://www.enargroup.com Plataforma Logística PLAZA (34) 976 471 470 50197 ZARAGOZA SPAIN...
