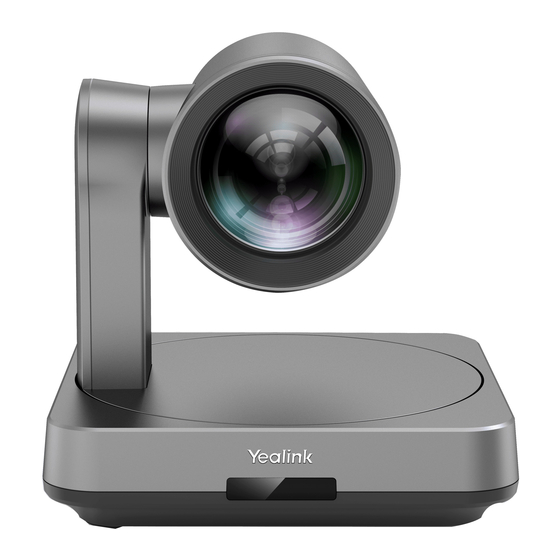

UVC84 Installation

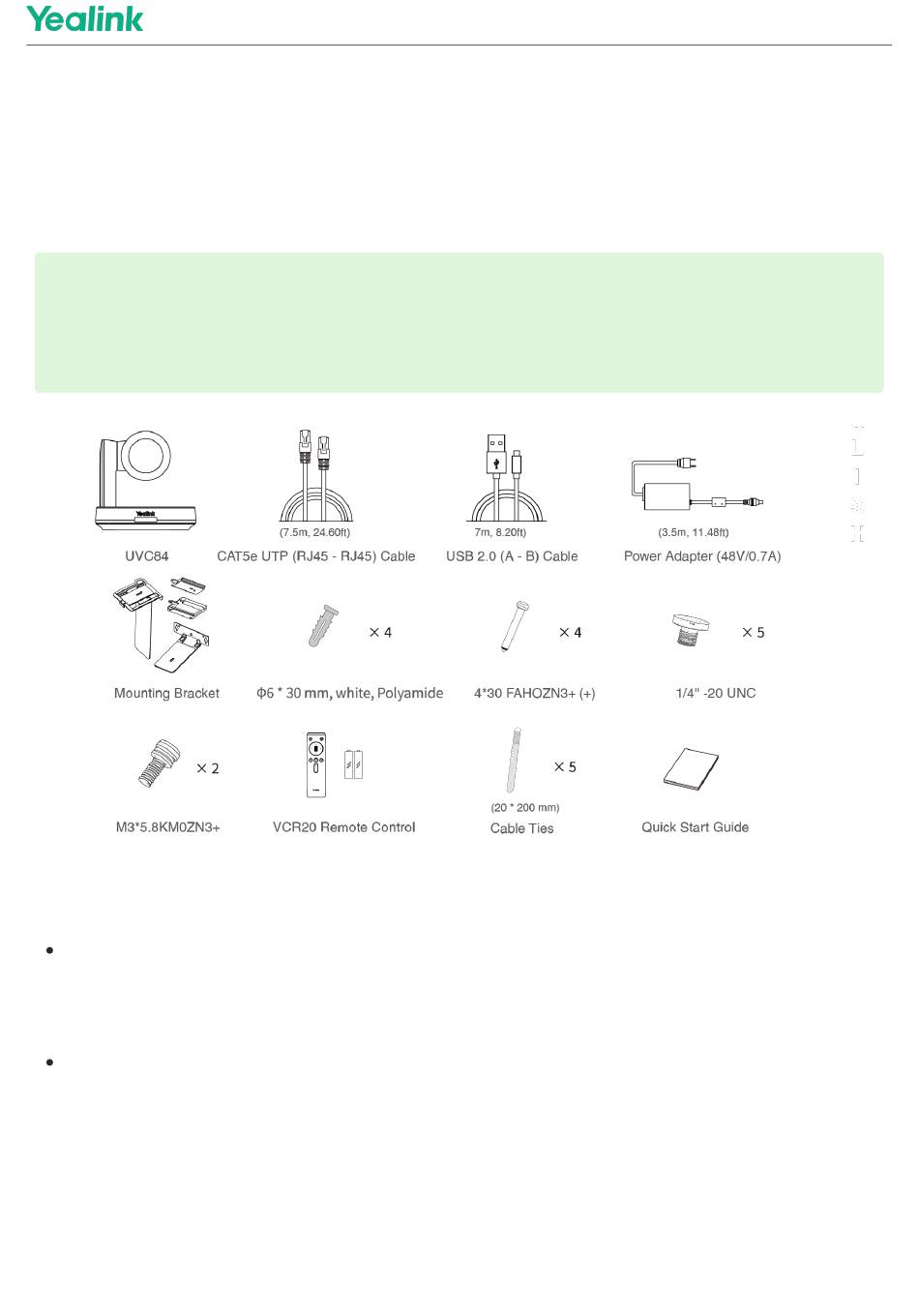

Package Contents

 TIP

TIP

For the UVC84 unboxing video, and please refer to UVC84.

We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-

party accessories may result in poor performance.

You can put the UVC84 on the conference table, and make sure that the angle of inclination of the

UVC84 is not more than 5 degrees to ensure proper operation.

Choose the following installation method when the thickness of the TV is between 0mm and 70mm.

UVC84 Installation

Table of Contents

Do you have a question about the UVC84 and is the answer not in the manual?

Page 1 Put on a Flat Surface Put on a Flat Surface You can put the UVC84 on the conference table, and make sure that the angle of inclination of the UVC84 is not more than 5 degrees to ensure proper operation.
Page 2 UVC84 Installation Choose the following installation method when the thickness of the TV is between 46 mm and 146 mm.
Page 3 UVC84 Installation Mount on the Wall Mount on the Wall The recommended height is 1.55 m-1.85 m above the ground. Mount on the Ceiling Mount on the Ceiling...
Page 4 UVC84 Installation Mount onto a TV Mount Mount onto a TV Mount Hardware Interface Hardware Interface Item Item Description Description DC48V Connect to a power adapter. In MVC system, connect to audio device (for example: VCM34).
Page 5 Insert DD10 to connect to CPW90. Line Out Connect to an audio output device using an audio cable (3.5mm). Security Connect a universal security cable to the UVC84 so that you can lock the UVC84 slot down. Connect UVC84 Connect UVC84...
Page 6 LED Status LED Status Description Description The UVC84 is powered off. Solid green The UVC84 is active. Solid red The UVC84 is in sleep mode. Flash red The UVC84 is in recovery mode. Flash yellow The UVC84 is upgrading firware.
