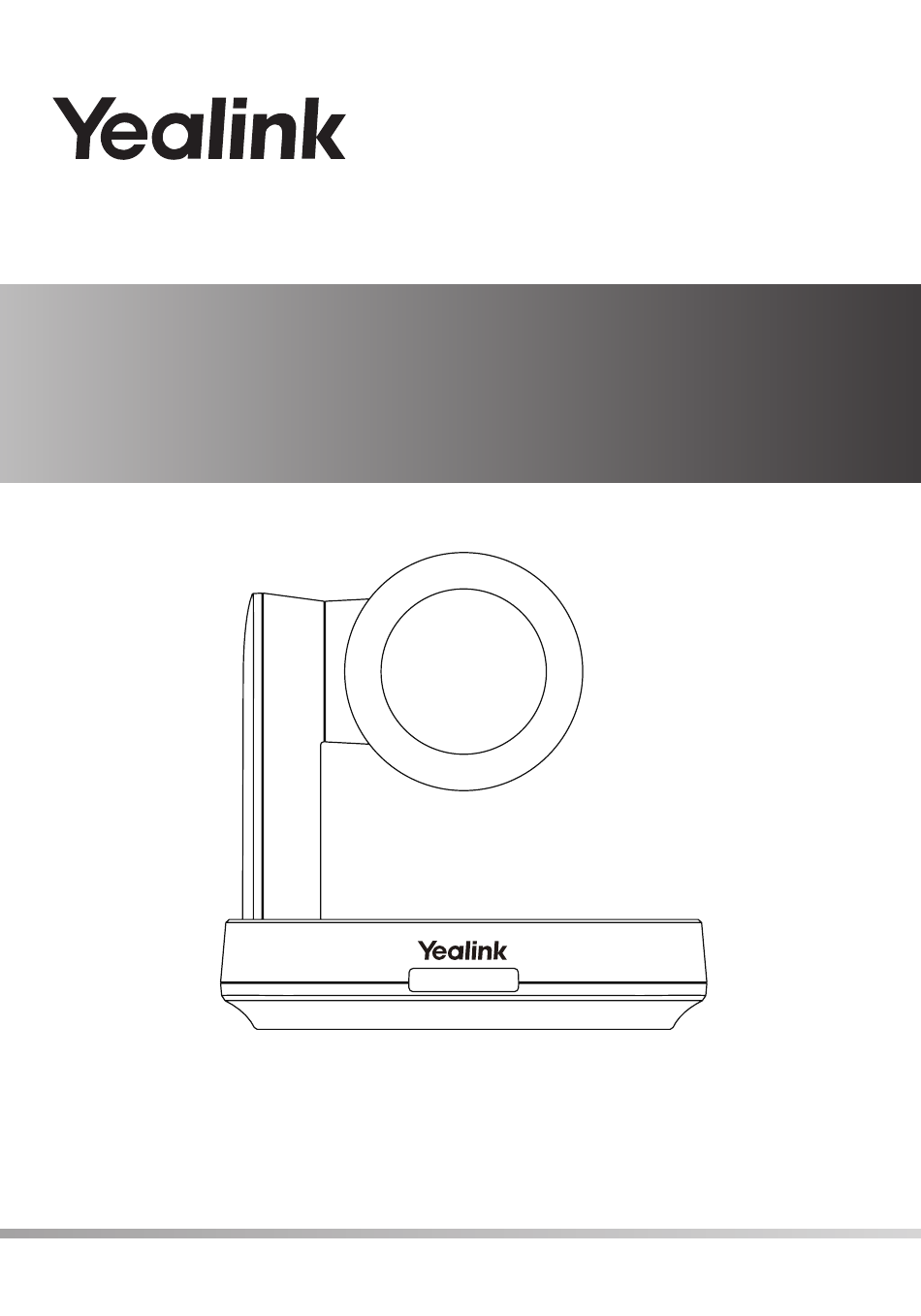

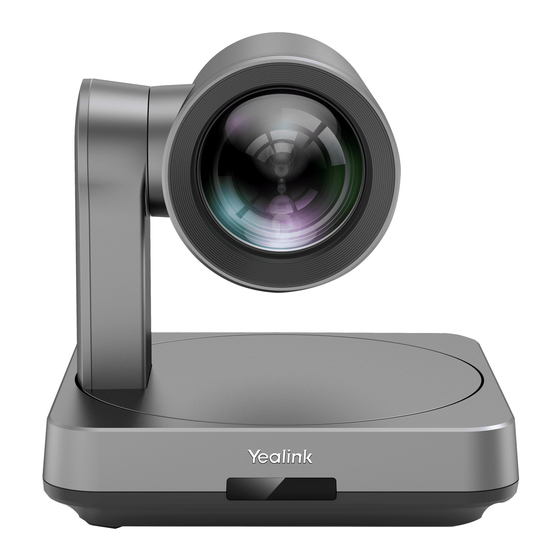

  • Page 1 Video Conferencing Camera UVC84 English| 简体中文 Quick Start Guide(V1.0)

  • Page 2: Package Contents

    UVC84 Installation • Put on a Flat Surface You can put the UVC84 on the conference table, and make sure that the angle of inclination of the UVC84 is not more than 5 degrees to ensure proper operation. • Mount on top of a display Choose the following installation method when the thickness of the TV is between 0mm and 50mm.
  • Page 3 Choose the following installation method when the thickness of the TV is between 50mm and 150mm. 3M Velcro • Mount on the Wall 66mm 100mm Screw specification: T4×30 Hole depth: 30mm Hole diameter: 6mm Screw specification: 1/4'' -20 UNC...
  • Page 4 • Mount on the Ceiling Screw specification: 1/4'' -20 UNC Screw specification: 1/4'' -20 UNC Screw specification: T4×30 • Mount onto a TV Mount2 You need to purchase a TV Mount2 separately. Screw specification: M3×8 180° Screw specification: Screw specification: 1/4'' -20 UNC 1/4'' -20 UNC...
  • Page 5 Video Out: connect to a PC as video output. Line Out: connect to an audio output device using an audio cable (3.5mm). Security slot: connect a universal security cable to the UVC84 so that you can lock the UVC84 down.

  • Page 6: Led Indicator Instructions

    LED indicators on the UVC84: LED Status Description The UVC84 is powered off. Solid green The UVC84 is active. Solid red The UVC84 is in sleep mode. Flashing yellow The UVC84 is upgrading firmware. Flashing red The UVC84 is in recovery mode.
  • Page 7 包装清单 7.5m 电源适配器 VCR20 UVC84 以太网线 (48V/0.7A) 遥控器 USB 线 UVC84 7 号电池 ×2 魔术贴 ×5 支架配件 快速入门指南 我们推荐使用由亿联提供或经亿联认可的配件， 使用未经认可的第三方配件可能会导致性能的 下降。 安装 UVC84 • 平放安装 将终端摆放在水平桌面。 如果桌面略有倾斜， 请保证倾斜角小于 5°， 以保证终端的摄像机云 台正常运转。 • 挂装 当电视厚度范围为 0-50mm 时， 进行以下步骤： 注意支架方向 魔术贴...
  • Page 8 当电视厚度范围为 50-150mm 时， 进行以下步骤： 魔术贴 • 墙装 66mm 100mm 螺丝规格： T4×30 打孔深度 30mm 打孔直径 6mm 螺丝规格： 1/4''-20UNC...
  • Page 9 • 吊装 螺丝规格： 1/4''-20UNC 螺丝规格： 1/4''-20UNC 螺丝规格： T4×30 • 电视架安装 用户可以自行选购电视架。 螺丝规格： M3×8 180° 螺丝规格： 螺丝规格： 1/4''-20UNC 1/4''-20UNC...
  • Page 10 硬件接口介绍 DC48V Video out Line out 在 MVC 系统中， 连接音频设备 （例如： VCM34） 。 在视频会议系统中， 连接终端 （例如： MeetingEye 800)。 电源接口 : 连接电源适配器。 视频输出 : 连接电脑作为视频输出。 音频线性输出 : 使用 3.5mm 音频接头线连接。 安全锁孔 : 将主机锁在固定位置。...
  • Page 11 或 集线器 / 交换机 0.6 米 USB 0.6m VCH51 Type-C 线 HDMI 线 UVC84 UVC84 UVC84 UVC84 指示灯介绍 UVC84 指示灯介绍如下 : 指示灯状态 说明 关闭 UVC84 没有正确连接到 PC 上或未处于正常工作状态。 绿灯常亮 UVC84 处于正常工作状态。 红灯常亮 UVC84 处于休眠状态。 橙灯闪烁 UVC84 固件更新中。 红灯闪烁 UVC84 处于恢复模式。...
  • Page 12 As one of the best providers in more than 140 countries and regions, Yealink ranks No.1 in the global market share of SIP phone shipments (Global IP Desktop Phone Growth Excellence Leadership Award Report, Frost & Sullivan, 2019).
