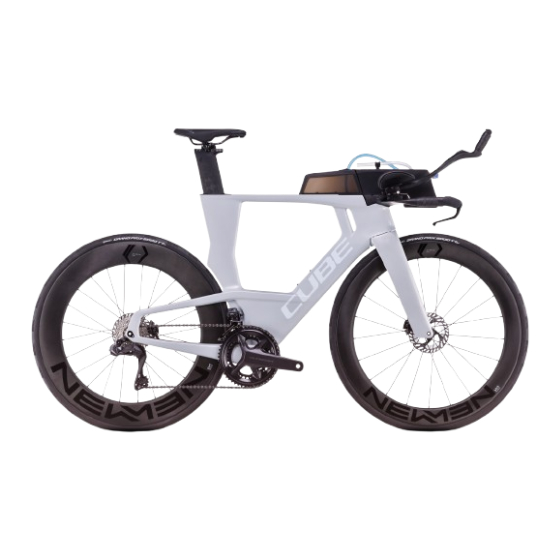

- Page 1 Operating manual AERIUM C:68X/C:68 TT...
- Page 2 Legal notice Status: 12.10.2023 Pending System GmbH & Co. KG Ludwig-Hüttner-Str. 5-7 95679 Waldershof Telephone: +49(0) 9231-97 007 80 Fax: +49(0) 9231-97 007 199 E-mail: info@cube.eu Internet: www.cube.eu 23_TA-C_DE, 1, en_US © 2023 Sticker frame serial number (attached to top tube)
-
Page 3: Table Of Contents
AERIUM C:68X/C:68 TT Table of contents In-frame hydration (Aerium C:68X)... Installing the in-frame General information......... hydration.......... Classification/system weight..Removing the in-frame hydra‐ tion............Technical data and compatibility........In-frame hydration: cleaning and care..........Delivery contents..........Warranty/guarantee/CCR....... AERIUM C:68X frameset....AERIUM C:68 TT frameset.... -
Page 4: General Information
Max. system weight: 115kg training and competition. The system weight refers to the maximum permissible Your CUBE dealer will also be very important to you total mass. This must not be exceeded under any cir‐ following the advice and final assembly stages. They cumstances. - Page 5 − Use only EN-certified parts and accessories. This is with the exception of bike computers and bottle cages, provided they are chosen and installed by an authorised dealer. − Please consult your CUBE dealer when selecting parts and acces‐ sories.
-
Page 6: Delivery Contents
AERIUM C:68X/C:68 TT Delivery contents 2.1 AERIUM C:68X frameset Frame Derailleur hanger (standard/direct mount) Fork Headset Seatpost Saddle clamp Basebar-stem combination Aero bars Front derailleur mount/braze-on Front derailleur cap Stem cover In-frame hydration cover Seat tube seal Bottle cage bolts... -
Page 7: Aerium C:68 Tt Frameset
AERIUM C:68X/C:68 TT 2.2 AERIUM C:68 TT frameset Frame Di2 battery plug Fork Derailleur hanger (standard/direct mount) Seatpost Headset Basebar-stem combination Saddle clamp Front derailleur mount/braze-on Aero bars Stem cover Seatpost clamp Seat tube seal Bottle cage bolts... -
Page 8: Aero Bars
AERIUM C:68X/C:68 TT 2.3 Aero bars 15 16 Arm rest pad Cylindrical nut, front Arm rest fixing bolts Safety bridge spacer, top Arm rest 5mm safety bridge (if using more than 40mm of Extension end plug spacers) Clamp bolt Safety bridge spacer, bottom... -
Page 9: Hydration System & Storage Box (Aerium C:68X)
AERIUM C:68X/C:68 TT 2.4 Hydration system & storage box (Aerium C:68X) In-frame hydration funnel Straw holder In-frame hydration funnel lid (slot at front) Straw In-frame hydration funnel lid (slotted front & rear) Hydration system lid In-frame hydration lid (closed) Hydration system slider... - Page 10 AERIUM C:68X/C:68 TT Hydration bladders (size XS-S/M-L) SQC drinking valve Drinking/filling hoses (4x @ 150cm) Drinking valve Magnetic holder SQC quick connector Universal Tube Adapter...
-
Page 11: Hydration System & Storage Box (Aerium C:68 Tt)
AERIUM C:68X/C:68 TT 2.5 Hydration system & storage box (Aerium C:68 TT) Storage box (#34096) Hydration system lid (#34174) Hydration system (#34174) Straw (#34174) Stem adapter plate (#34174) Straw holder (#32765) Hydration system slider (#34174) -
Page 12: Tightening Torques
AERIUM C:68X/C:68 TT Tightening torques 3.1 Frame Seatpost clamp: 6 Nm Bottle cage: 3 Nm Derailleur hanger: 1 Nm/hand tight Stem: 5 Nm Braze-on/cap: 2 Nm Storage: 3 Nm Battery plug: 1 Nm/hand tight Top cap: 1 Nm/hand tight... -
Page 13: Cockpit
AERIUM C:68X/C:68 TT 3.2 Cockpit Bracket: 6 Nm Extensions: 5 Nm Arm rests: 5 Nm Stem: 5 Nm Shifter cable lengths 4.1 Frame Shimano Di2... -
Page 14: Cockpit
AERIUM C:68X/C:68 TT 4.2 Cockpit Shimano Di2... - Page 15 AERIUM C:68X/C:68 TT SRAM eTap AXS...
-
Page 16: Seatpost/Saddle
Now attach the mag‐ Before every ride, check the seatpost netic counterpart (4) - Aerium C:68X or (5) - Aerium and saddle are correctly installed. C:68 TT to the threaded plate in the seat tube. -
Page 17: Installing The Saddle
AERIUM C:68X/C:68 TT The seatpost is fixed into place via two bolts (3) on the When affixing the saddle, check that the mounting rear of the seat tube. Tighten the bolts to the specified mechanism of the seatpost is clamped in the middle. -
Page 18: Installing The Storage Box
AERIUM C:68X/C:68 TT Tighten the bolts to the correct torque (max. 2.5 Nm) (2). 6.2 Installing the storage box The mounting bolts must project out at least 6.3 Cleaning the storage box 7mm in order to attach the storage box. Now position the storage box on the top tube using The storage box must be removed from the top tube the holes for the bolt heads, as shown. -
Page 19: Hydration System
AERIUM C:68X/C:68 TT Hydration system Introduce the bottle to the basebar from the front. 7.1 Installation Remove the stem cover by lifting it up until the magnetic connection disengages. Then pull the cover backwards and off. �� The magnetic click system pulls the bottle into the correct position and holds it firmly in place. -
Page 20: Attaching And Removing The Lid
In-frame hydration (Aerium C:68X) 7.3 Attaching and removing the Your Aerium C:68X is also compatible with the in- frame hydration system included with delivery, which can carry at least 750ml of on-board liquids. To correctly attach the lid, first place the rear edge of the lid on the hydration system (1). -
Page 21: Installing The In-Frame Hydration
AERIUM C:68X/C:68 TT 8.1 Installing the in-frame hydration Depending on which set-up you choose, you will require a filling hose in addition to the drinking tube. We recommend the following hose lengths for the respective set-up and frame size: Frame... - Page 22 AERIUM C:68X/C:68 TT To facilitate the hose routing, the front cover of the Select the correct hydration bladder for your storage box can be removed by pulling firmly. frame size (XS-S/M-L) and connect it to the hoses. Prior to installation, we recommend you remove the hoses from their packaging to enable them to straighten back out.
-
Page 23: Removing The In-Frame Hydration
AERIUM C:68X/C:68 TT 8.3 In-frame hydration: cleaning Attach the in-frame hydration cover by the bottom bracket. and care If used with normal water, SOURCE bladders do not require special cleaning, drying or emptying. However, we recommend cleaning the bladder if you... -
Page 24: Warranty/Guarantee/Ccr
This voluntary manufacturer's guarantee is granted for the above-mentioned period from the date of pur‐ chase, provided that your CUBE bike was bought from an official CUBE dealer. This guarantee is solely for the benefit of the initial purchaser of the bike.
