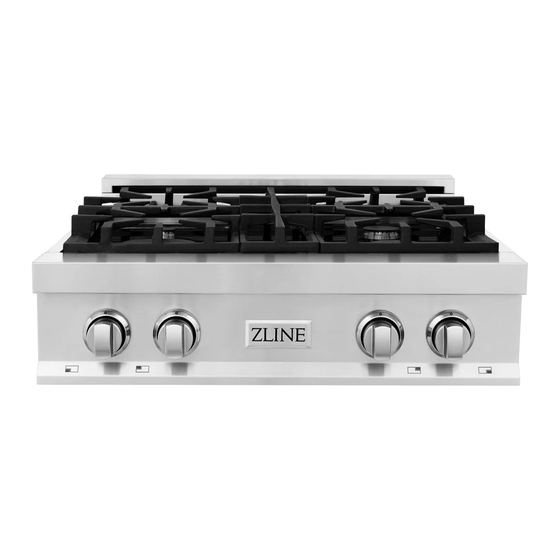

Zline RT30 Series Installation Manual
Zline RT30 Series Installation Manual

Zline RT30 Series Installation Manual

Range tops

Advertisement

Quick Links

Installation Manual
RANGE TOPS
www.zlinekitchen.com

Advertisement

Table of Contents
loading

Summary of Contents for Zline RT30 Series

  • Page 1 Installation Manual RANGE TOPS www.zlinekitchen.com...
  • Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
  • Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....1 BEFORE INSTALLATION ....... 4 Technical Product Dimensions .
  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS GAS SAFETY WARNING: If the information in these instructions is not followed exactly, a fire or WARNING explosion may result causing property damage, personal injury or death. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death. WARNING • Before beginning installation, please read and follow these important instructions for the safety of your home and the people living in it.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS An air curtain or other overhead range/range top hood, which operates by blowing downward airflow onto the range, shall not be used/installed WARNING in conjunction with this gas range top. • Please ensure that the altitude of your home is conducive for the use of gas cooking products.
  • Page 8: Before Installation

    BEFORE INSTALLATION TECHNICAL PRODUCT DIMENSIONS 27 1/2" (699 mm) 7 7/8" (200 mm) 24" (610 mm) 27 1/2" 2"3/4 (70) 2 3/4" (70 mm) (699 mm) 7 7/8" (200 mm) 1"5/1 1 5/16 7 7/8" 27 1/2" 1"3/8 (35) 1 3/8" (35 mm) (699 mm) (200 mm) 7 7/8"...
  • Page 9: Cabinet Cutout Dimensions

    24" (610 mm) Cutout height: 7 7/8" (200 mm) 36" (914 mm) SIZE RT30 series models 29 3/4" (756 mm) 30" (762 mm) RT36 series models 35 3/4" (908 mm) 36" (914 mm) RT48 series models 47 3/4" (1213 mm)
  • Page 10 2 3/4" (70 mm), the same depth of the rear recess noted on page 4. • Be sure to carefully consider the critical dimensions of the appliance before making an opening in the top surface of your countertop. Since kitchen layouts vary, ZLINE recommends consulting with a professional installer to verify cabinet dimensions and...
  • Page 11: Securing The Range Top

    SECURING THE RANGE TOP While the range top is stable enough to sit on top of a 3/4" (20mm) or thicker platform itself while pushed flush against the wall, ZLINE recommends the following options to secure the appliance and prevent tipping:...
  • Page 12 BEFORE INSTALLATION GAS SUPPLY • This appliance shall only be installed by an authorized professional. • If local codes permit, a flexible metal appliance connection with the new AGA or CGA certified design, 3/4" (19 mm), is recommended for connecting this appliance to the gas supply line.
  • Page 13: Gas Pressure

    BEFORE INSTALLATION ROOM VENTILATION An exhaust fan may be used with the appliance; in each case it shall be installed in conformity with the appropriate national and local standards. Exhaust hood operation may affect other vented appliances; in each case it shall be installed in conformity with the appropriate national and local standards.
  • Page 14: Installation

    INSTALLATION • For gas inlet position of appliance refer to Figures 1 and 2. After installing the gas supply and making all connections check thoroughly for possible leaks. Turn all control knobs on the unit to ‘OFF’ position. • Open the valve on the gas supply. Using a soap and water solution check each gas connection one at a time by brushing the solution over the connection.
  • Page 15 INSTALLATION To check inlet pressure of the appliance: • Disconnect electric power before checking pressure. • Take off one of the gas burner caps and the relative flame spreader in order to get access to the burner injector. • Place the pressure detector directly on the burner injector, then afterward open the relative burner knob at maximum position keeping it pressed, then measure the outlet pressure from the burner injector.
  • Page 16: Gas Connection

    INSTALLATION GAS CONNECTION • All gas connections must comply with national and local codes. The gas supply line (service) must be the same size or greater than the inlet line of the appliance. This range top uses a 1/2" NPT inlet. Use appropriate sealant on all pipe joints that are resistant to gas.
  • Page 17: Electric Power Rating

    INSTALLATION ELECTRIC POWER RATING A properly grounded and horizontally-mounted electrical NEMA 5-15 receptacle should be installed no higher than 3" (76 mm) above the floor, and no less than 2" (51 mm) and not more than 8" (203 mm) from the left side (facing product). The appliance shall be connected to a single phase electric line rated at 120VAC and 60HZ.
  • Page 18 INSTALLATION MANUAL SHUT-OFF VALVE • This valve is not shipped with the appliance and must be provided by the installer. • The valve must be installed in the gas service line between the gas hook-up on the wall and the appliance inlet, in a position where it can be reached quickly in the event of an emergency.
  • Page 19 INSTALLATION PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. Pressure Regulator • The pressure regulator shipped with the appliance has two female 1/2" (13 mm) NPT threads.
  • Page 20: Liquid Propane Conversion Procedure

    INSTALLATION LIQUID PROPANE CONVERSION PROCEDURE The gas conversion procedure for this range top includes: 1. Pressure Regulator 2. Surface Burners 3. Flame Adjustment The conversion is not finished if all steps are not completed. Before performing the gas conversion, locate the package containing the replacement orifices, which has a number indicating its flow diameter printed on the body.
  • Page 21 INSTALLATION Reference the diagrams below if your range was manufactured before May 2021. To check, reference the rating label under the range top. Example label...
  • Page 22 INSTALLATION Reference the diagrams below if your range was manufactured after May 2021. To check, reference the rating label under the range top. Example label...
  • Page 23 INSTALLATION STEP 1: PRESSURE REGULATOR The pressure regulator supplied with the appliance is a convertible type pressure regulator for use with natural gas at a nominal outlet pressure of 4" W.C.P. (1 kPa) or liquid propane gas at a nominal outlet pressure of 10" W.C.P. (2.5 kPa) and it is pre-assembled from the factory to operate with one of these gas pressures as indicated in the labels affixed on the appliance, package, and instruction booklet.
  • Page 24 INSTALLATION STEP 2: SURFACE BURNERS To replace the orifices of the surface burners, lift up the burners and unscrew the orifices shipped with the range top using a 7 mm socket wrench. Replace orifices using the conversion set supplied with the range top. Each orifice has a number indicating its flow diameter printed on the body.
  • Page 25 INSTALLATION STEP 3: FLAME ADJUSTMENT 1. Light one burner at a time and set it to the MINIMUM position (small flame). 2. Remove the knob by firmly and carefully pulling it straight out. 3. The range is equipped with a safety valve. Using the 2.0 x 50 mm flat-head screwdriver provided with this manual, locate the adjustment screw (see diagram below), hold the metal stem with one hand and turn the screwdriver to the right or left until the burner flame is adjusted to desired minimum.
  • Page 26: Installation Checklist

    INSTALLATION INSTALLATION CHECKLIST 1. Is the back guard of the range top securely connected? If not, locate screws to secure. 2. Is the electricity properly grounded to a dedicated NEMA 5-15 receptacle? 3. Is the gas service line connected following the directions of the manufacturer? 4.
  • Page 27: Warranty

    WARRANTY COVERAGE ZLINE Kitchen and Bath (“ZLINE”) range tops have a one year parts and service warranty and a limited lifetime warranty on burners, which includes parts and labor for spark tips. ZLINE warranty periods begin from the original purchase date of the product and solely cover the original purchaser of the product, delivered new and in its original carton.
  • Page 28 ZLINE reserves the right to offer to replace the defective part or the product or provide the original purchaser a full refund of the purchase price of the product (not including installation, removal, or other charges that were not included in the original purchase price).
  • Page 29 Always check the ZLINE website for the most up-to-date version of its product manuals: www.zlinekitchen.com/pages/manuals. Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact ZLINE Customer Experience at 1-614-777-5004 for help.
  • Page 30 Customer Experience Portal. Scan the QR code to view the most up-to-date version of our Installation Manual and User Manual. Need to purchase a part or accessory for your ZLINE product? Visit www.zlineparts.com, ZLINE’s official parts distribution partner.
  • Page 31 4.0.1 1-614-777-5004 www.zlinekitchen.com contact@zlinekitchen.com...

This manual is also suitable for:

Rt36 series rt48 series
