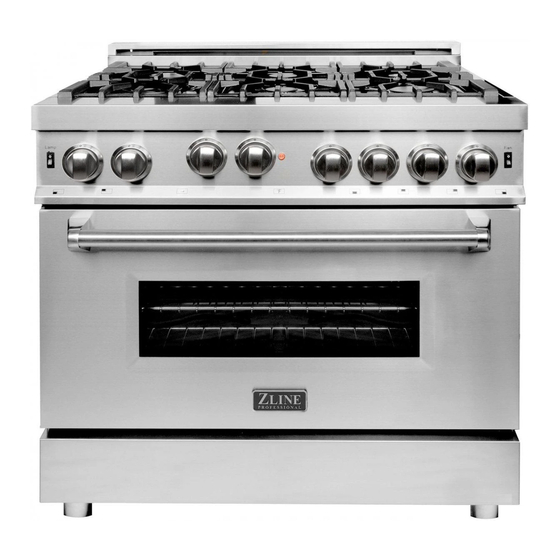

- Page 1 User Manual GAS RANGES RG MODELS www.zlinekitchen.com...
- Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
- Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
-
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS � � � � � � � � � � � � � � � � � � � 1 Gas Safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1 Ventilation Safety �... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS GAS SAFETY WARNING: If the information in these instructions is not followed exactly, a fire or WARNING explosion may result causing property damage, personal injury or death� • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance�... - Page 6 IMPORTANT SAFETY INSTRUCTIONS If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death� WARNING • Before beginning installation, please read and follow these important instructions for the safety of your home and the people living in it. •...
- Page 7 IMPORTANT SAFETY INSTRUCTIONS An air curtain or other overhead range/range top hood, which operates by blowing downward airflow onto the range, shall not be used/installed WARNING in conjunction with this gas range top� • Please ensure that the altitude of your home is conducive for the use of gas cooking products.
-
Page 8: Ventilation Safety
IMPORTANT SAFETY INSTRUCTIONS VENTILATION SAFETY • The use of a gas cooking appliance generates heat and humidity in the kitchen or room where it is installed. A range hood may be used with the appliance; in each case it shall be installed in conformity with the appropriate national and local standards. •... - Page 9 IMPORTANT SAFETY INSTRUCTIONS • Take care when using cleaning products in spray form: never direct the spray onto the electrical wiring, thermostat, and bulb. • Any food or liquid spills in the bottom of the oven must be cleaned up before cooking in order to avoid unpleasant smoke and/or the possibility of fire.
-
Page 10: Operation
3. Never let flames wrap around cookware; this creates a safety hazard and can also damage your cookware: Correct Incorrect Correct Incorrect Correct Incorrect NOTE: ZLINE cast iron griddles (only available with the RG48 series range) comes pre- seasoned. Regularly seasoning the griddle is recommended. - Page 11 OPERATION SURFACE BURNER OPERATION Maximum Flame Height Minimum Flame Height • Maximum temperature setting is the recommended control knob position for burner ignition. • The regulating knobs should be turned in a counter-clockwise direction until reaching the small flame symbol, vice-versa for the larger flame symbol. •...
-
Page 12: Using The Oven
“MAX” position. This is the highest heat setting using only the bottom heating element. Use for roasting and baking breads and pizzas. NOTE: Some RG series models may have a slightly different timer dial layout, yet operation remains the same. Further, some previous models featured “CLEAN” on the temperature... - Page 13 The convection fan will only run on regular temperature settings and will not run while “BROIL” is selected. NOTE: Some RG series models may have a convection fan switch, rather than a button. If this is the case, operation remains the same.
- Page 14 OPERATION 4. In case of electric power failure, reset oven/broiler controls to the OFF position and do not attempt to use oven/ broiler until the power has been restored. 5. DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACE OF OVEN. Heating elements may be hot even though they are dark in color.
-
Page 15: Maintenance And Cleaning
MAINTENANCE AND CLEANING REPLACING THE OVEN BULBS Disconnect the power before servicing the unit� WARNING To replace the two G9 halogen light bulbs located at the upper left and right corners of the oven, unscrew the protection cap that projects out inside the oven. NOTE: Touching the bulb with your fingers may cause the bulb to burn out. - Page 16 MAINTENANCE AND CLEANING • Cleaning Glass Door: Clean the glass using a non-abrasive sponge or wipe with a warm soap and water solution. Use a rubber spatula to remove food and fat deposits. When cleaning the inside of your range, note that the oven door does not lock�...
-
Page 17: Troubleshooting
TROUBLESHOOTING RANGE PROBLEM POSSIBLE CAUSE AND/OR REMEDY Range is not connected to electrical power. Check power Range does not function circuit breaker, wiring, and fuses. If all electrical components are properly installed, call 1-614-777-5004 for help. Temperature control knob is rotated too far past broil Broil does not work position (500°F);... -
Page 18: Warranty
WARRANTY COVERAGE ZLINE Kitchen and Bath range products will be warrantied for one year from the original purchase date for the original purchaser of the product. This warranty covers all parts and labor for necessary repairs if any part of the product proves to be defective in materials or workmanship. - Page 19 WARRANTY WHAT IS NOT COVERED 1. Installation or start-up, damages or problems caused by improper installation or use. 2. Improper liquid propane gas conversion or damage related to improper liquid propane gas conversion. 3. Range top burner flame adjustments or related complaints. 4.
- Page 20 SERVICE For warranty service, please contact our Customer Service team at 1-614-777-5004 or visit www.zlinekitchen.com/contact to utilize our online Customer Experience Portal. Need to purchase a part or accessory for your ZLINE product? Visit www.zlineparts.com, ZLINE’s official parts distribution partner.
- Page 21 5.2.0 1-614-777-5004 www.zlinekitchen.com contact@zlinekitchen.com...
