WELCOME TO THE PELICAN FAMILY!

This SUP was built in accordance with strict quality standards and with the benefit of over 50 years of expertise.
We hope you thoroughly enjoy this product. Please take the time to read the content in this manual in order to optimize your satisfaction with this product.
We believe that a Pelican SUP offers incomparable value. We wish you years of enjoyment and rewarding experiences with this Pelican SUP.

MODEL:
DATE OF PURCHASE:
DEALER NAME:
REGISTRATION NO.:
PROVINCE/STATE:
MODEL NO.:
SERIAL NO. (ZEP):

WHERE IS THE SERIAL NUMBER?
You can find the serial number on the bottom of your SUP near the fin box.
It starts with 'ZEP' and is 12 characters long.
Example: ZEP12345A678

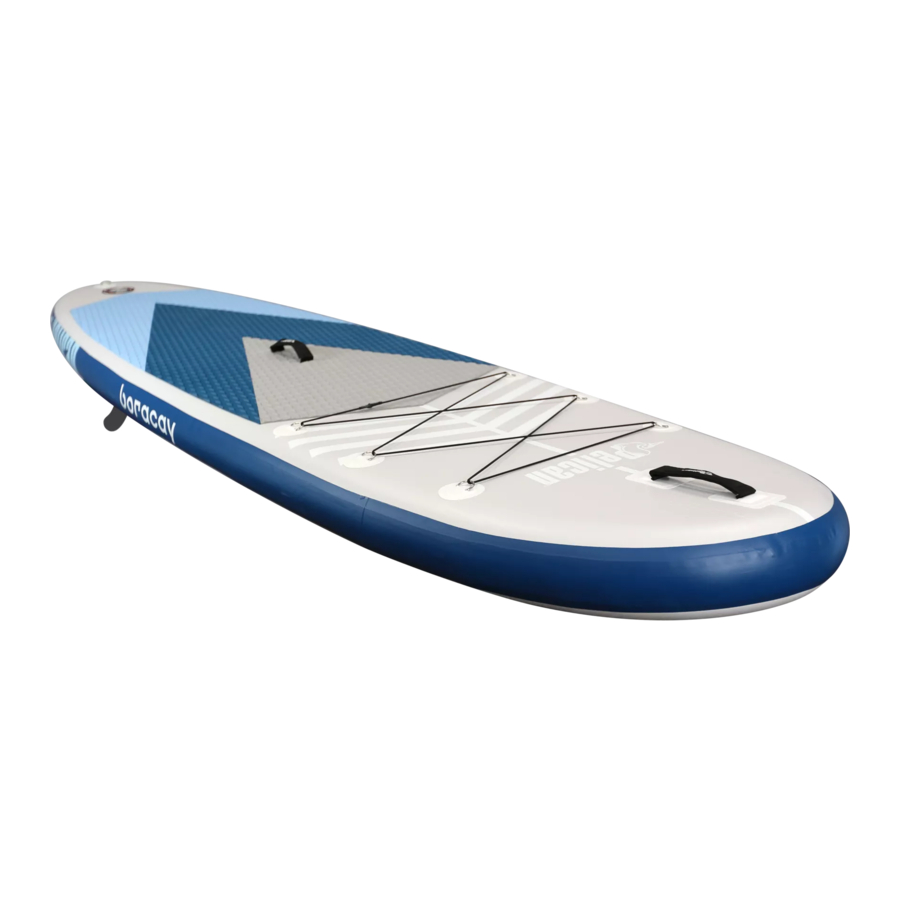

YOUR NEW SUP

Take the time to familiarize yourself with some of the key components of your SUP.

EVERYONE USING THIS SUP MUST READ WARNINGS,CAUTIONS AND IMPORTANT INFORMATION VERY CAREFULLY.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

Provides useful tips and suggestions to make better use of your SUP.

ACCESSORIES INCLUDED WITH THIS MODEL

Overview .

MATERIALS / MANUFACTURING

Pelican International Inc. inflatable is built of outer and inside PVC with drop stitch polyester yarns.

TRANSPORTATION

Inflatable SUPs are designed to compress down into the included bag for convenient travel.

BY HAND: Carry the board by using the handle located in the center or at the top of the board. If necessary, use a device to aid in the transport.
BY VEHICLE: Do not transport an inflated SUP on the top of a vehicle. Keep away from any sharp objects. Keep away from any heat producing objects. Completely dry your inflatable SUP before rolling for packing.
Excess moisture may cause mildew and/or mold damage.

PRE-LAUNCH CHECKLIST

Always wear a proper personal flotation device (PFD).
Always have an emergency safety kit on hand that is required by applicable law (whistle, etc.)
Verify that the hardware used to attach the SUP during transport has been removed.
Make sure the air valve is securely in place and properly fastened.
Make sure the length of your paddle is adjusted according to your size (see details described in "Basic SUP Principles").

LAUNCHING YOUR SUP

Do not stand up on the SUP if there are objects nearby that present a falling hazard (dock, rocks, etc.). Remain on your knees and use the paddle to move further away before standing up. You can return to a kneeling position at any time if a hazardous situation presents itself.

Keep your paddle in hand at all times.
Make sure the water is deep enough so that the fin will not scrape the bottom.
Start by kneeling in the center and pressing your hands on both sides of the board for added stability.
Stand up one foot at a time (use the paddle for balance).
Your feet should be positioned shoulder-width in the middle of the board, one foot on each-side of the carry handle.
When you feel comfortable, start paddling forward.

MOORING/DOCKING

If you want to moor your SUP to a dock, make sure that:

It is away from rocks or sharp objects.
The water is deep enough to avoid damaging the board.

BASIC SUP PRINCIPLES

Learn and practice basic skills on a calm lake. Start slowly in open areas with few people around. Take your SUP through rougher water only when you are confident about your abilities.
For maximum comfort, make sure you have a paddle with a length that fits your size. In general, you should add 8 to 10 inches to your height to determine the length of the paddle. For example, if you are 5 feet 10 inches (70 inches) tall, your paddle should be 78-80 inches long.
You should stand in the center of the board when you paddle. In calm water, your feet should be positioned shoulder-width apart and pointing forward. In waves or rougher water, you should move a foot towards the back of the board and assume a surfing position. Practice moving your feet on the board and changing positions to improve your balance.
The best way to make a quick turn with your board is to move your weight back. The nose of the board will be out of the water and it will be much easier to turn. If you paddle on a large body of water, like a lake or ocean, be sure to use a leash that connects you to your board. If you fall, your board could be pushed away from you, leaving you alone in the water.
If you paddle on a river with a strong current, do not use an ankle leash. If you fall, your board could drag you under the water and carry you down with the current. Or the leash could get caught on something in the water (rocks, branches, tree trunks, etc.) and cause you to fall off your board.
Be careful in windy conditions. Your body is completely exposed when standing up and strong winds can greatly affect your movements and push you off course. Adopting a kneeling or sitting position when faced with such conditions can prevent the wind from affecting your course.
Never leave your board if you do not have a leash, even if you lose your paddle. You can always paddle with your hands, which is an easier option than trying to swim back. As well, if the wind picks up and you are not on your board, it can float away faster than you can swim to retrieve it. This is why a leash is so important.

CARE AND MAINTENANCE

The best way to clean your SUP is to rinse sand and saltwater deposits from your board after each use with fresh water. Maintain the high pressure pump regularly. Please make sure that the pump is fully lubricated with oil. To lubricate, open the top and spread a thin layer of oil or grease on the gasket and tube. Regularly clear the air filter located inside the top.

STORAGE

Keep your board in a well-ventilated, shaded area when not in use.
Direct sunlight can damage a board left exposed for a period of time.
Heat may cause the air inside to expand beyond the pressure limits.
Keep your board in an area with good air flow and circulation.
Leaving your board in a vehicle during the day elevates the risk for heat related damages.
Improper inflation or deflation may result in damaging your SUP
The optimal inflation pressure is between 12-15 PSI.
Do not store your board in a board bag for extended periods of time. Board bags are intended for transportation, not for full time storage. Prolonged storage of a wet board in a wet bag will lead to the possibility of mould and osmotic blisters. Board bags also collect heat and can potentially overheat your board.

INFLATION

The pump can be used in double-action mode during the inflation phase.

QUICK INFLATION MODE: Turn valve toward double action.

FINAL INFLATION MODE: Turn valve toward single action.

Connect air hose to the OUT valve of the pump.
Open the valve cap located on the board.
Connect air hose to the air valve on the board and turn 90° to secure connection.
Use the quick inflation mode to start inflating the board and finish with the final inflation mode until 12-15 psi is reached.
Disconnect air hose from the air valve on the board.
Close valve cap.

DEFLATION

Open the valve cap located on the board.
Depress colored valve pin and turn clockwise to lock the pin in the ˮDOWN'' position.
Beginning at the nose of the board, tightly roll up the SUP to expel air.
Depress colored valve pin and turn counter-clockwise to return to the ˮUPˮ position, then close the valve cap.

LEASH INSTALLATION

Pull leash loop through the ring located at the tail of the board.
Pull knot through loop and pull tight.
Open hook-and-loop fastener cuff and attach leash to the leash loop.

FIN INSTALLATION

Keep your fin in good condition by removing it after each use. Damage to the fin incurred while attached to the paddle board may result in severe damage to the fin box and the watertightness. Attach firmly before you go riding.

Unscrew the bolt and the square nut from the fin.
Insert the nut into the SUP's groove and push foward.
Insert the fin into the SUP's groove and align the bolt's hole with the nut previously installed. Screw lightly and push backward.
Place the bolt and screw firmly.
REMOVAL
Reverse steps, 4 through 1.

REPAIR KIT

Wear latex gloves. Avoid contact with skin & eyes. Avoid breathing cement vapors.

Prepare the following items:
- Latex gloves - Not included
- Rubbing Alcohol - Not included
- Clean cloth - Not included / Cement applicator - Not included
- Repair kit content: 2x patch, 1x valve handle
Deflate paddle board.
If the valve needs to be retightened or replaced, use the valve handle provided with the repair kit.
Clean the surface around the leak as well as the matte side of the PVC/Polyester patch with rubbing alcohol.
Apply cement carefully and evenly to the paddle board surface and the matte side of the patch surface.
Allow cement on both the board and the patch to dry. Once dry, reapply a very thin layer of cement around the perimeter of the patch.
Once the cement on both the board and the patch becomes tack-free, apply the patch to board and firmly work out any trapped air bubbles.
Allow 8 hours before inflating paddle board.

SAFETY PRECAUTIONS

Read the information outlined below before using your SUP. Failure to follow these warnings and precautions could result in serious injury or death. Paddle sports can be dangerous and physically demanding.
Every person using an SUP built or sold by Pelican is personally responsible for determining if their abilities match the encountered conditions and should use their best judgment as to the time and place to use the SUP. All individuals who use a Pelican SUP assume all risks and accept all responsibility for any damage or injury, including death, which may result from using or handling a SUP. It is strongly recommended you take a course offered by an experienced instructor on proper paddling techniques, boating security and first aid before practicing this sport.

WEATHER CONDITIONS AND WATER LEVELS
Check weather conditions and water levels before heading out. Never go out in conditions that could affect your ability to steer the board, including severe wind, heavy rain, thunderstorms, flooding, choppy water or strong currents. If you're already on the water, head to shore.

PERSONAL FLOTATION DEVICE (PFD)
Always wear a U.S. Coast Guard and/or government approved life jacket (PFD). Before you start to paddle, read the manufacturer's documentation about the lifejacket and familiarize yourself with how to properly wear it.

ALCOHOL AND DRUGS
Never use or consume alcohol, drugs or any other mind altering substance that may affect your coordination, judgement or ability to safely and securely operate your SUP.

SOUND-SIGNALLING DEVICE
Always have a sound-signalling device with you. The Coast Guard (or other government bodies) require that boaters are equipped to alert other vessels to their presence. If possible, attach a device to your lifejacket.

ABILITY
Do not exceed your ability. Consult your physician before beginning your SUP training. Realistically assess your physical stamina to determine how far and how long you can paddle or swim.

TRACTION ON THE SUP
The board material is extremely slippery when wet. Stay within the traction zone to avoid slipping. We recommend you wear non-slip shoes for more traction. This will also protect your feet when launching and if you walk on rocks.

HYPOTHERMIA
Dress appropriately for weather conditions and, if necessary, wear a wetsuit. Boating accidents in cold water are very dangerous. Hypothermia, the loss of body heat due to immersion in cold water, can be fatal. Survival time can be as little as 15 to 20 minutes in cold water.

BE ACCOMPANIED
Never paddle alone. It is always preferable to be accompanied on your outing in case of an emergency or accident. You should know the level of physical ability of those paddling with you and relevant medical conditions associated with each of them. Always tell someone your plans, including your destination, how long you'll be gone, and how many people you'll be with.

ALWAYS FAMILIARIZE YOURSELF WITH THE BODY OF WATER YOU INTEND TO NAVIGATE
Scout unfamiliar water. Find out what hours boating is permitted, if there are any known hazardous conditions and where to get help quickly if there is an emergency or accident. Check tidal changes and currents specific to your location. If you decide to go down rapids, you need to scout in advance and, if necessary, portage your SUP to bypass unfamiliar or dangerous zones.

REGULATIONS AND LAWS
Always follow Coast Guard regulations and/or boating and safety laws, regulations and orders of various levels of government (including regional). Consult the Coast Guard and/or authorities in various levels of government about the proper handling of a boat and required and/or recommended equipment such as lighting and sound alarms.

SELF PROTECTION
Wear appropriate safety gear. This product is not a personal flotation device. This SUP does not contain flotation material and may sink if deflated. If you choose to go down rapids, you are voluntarily risking serious injury or death. You must take the appropriate safety precautions, inspect your equipment thoroughly, and wear appropriate safety gear. You should always wear a lifejacket, a helmet and we strongly advise you to wear protection on your arms, legs, etc. It is your responsibility to have the proper equipment and familiarize yourself with the body of water before heading out.

VENT CAP
Make sure the vent cap of the SUP is firmly in place before putting it in the water.

Never allow minors to use this board without adult supervision.
Never tow behind a SUP.
Never use as a lifesaving device.
