Introduction

Before you can use the machine, you must set up the hardware and install the software.
Please read this Quick Setup Guide for the correct setup procedure and installation instructions.

1. Setting Up the Machine
2. Installing the Driver & Software

Setup is Complete!
Keep this Quick Setup Guide, the User's Guide and the supplied CD-ROM in a convenient place for quick and easy reference at all times.

Symbols used in this guide

Warning	Caution	Improper Setup
Warnings tell you what to do to prevent possible personal injury.	Cautions specify procedures you must follow or avoid to prevent possible damage to the machine or other objects.	Improper Setup icons alert you to devices and operations that are not compatible with the machine.
Note	User's Guide or Software User's Guide
Notes tell you how you should respond to a situation that may arise or give tips about how the current operation works with other features.	Indicates reference to the User's Guide or Software User's Guide we have supplied.

Getting Started

Carton components may vary from one country to another.
Save all packing materials and the carton in case for any reason you must ship your machine.

Quick Setup Guide	CD-ROM	User's Guide	Power Cord
Black (LC1000BK)	Yellow (LC1000Y)	Cyan (LC1000C)	Magenta (LC1000M)
	Ink Cartridges

A USB interface cable is not a standard accessory.

• „ Please make sure you use a USB 2.0 cable that is no longer than 2 metres long (6 feet).
• „ Your DCP has a USB interface that is compatible with the USB 2.0 specification.
• „ DO NOT connect the interface cable at this time.
  Connecting the interface cable is done during the software installation process.
• When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB port on a keyboard or a non-powered USB hub.

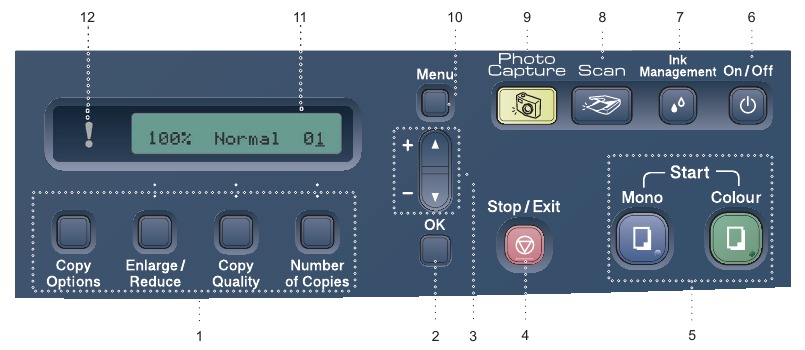

Control panel

1. Copy keys
2. OK key
3. Navigation keys
4. Stop/Exit key
5. Start keys
6. On/Off key

7. Ink Management key
8. Scan key
9. PhotoCapture key
10. Menu key
11. LCD (Liquid Crystal Display)
12. Warning LED

For the details of the control panel, see Control panel overview of the User's Guide.

Note

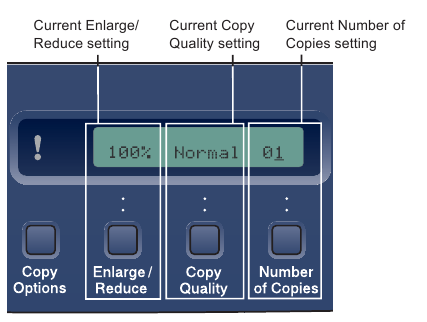

When the machine is idle (not being used) it will return to the default display shown above. The default display can give you useful information about the current settings.

Setting Up the Machine

Removing the protective parts

1. Remove the protective tape and film covering the scanner glass.

Improper Setup
DO NOT connect the interface cable. Connecting the interface cable is done during the software installation process.

Loading paper

You can load up to 100 sheets of 80 g/m 2 (20 lb) paper. For details, see Acceptable paper and other media in Chapter 2 of the User's Guide.

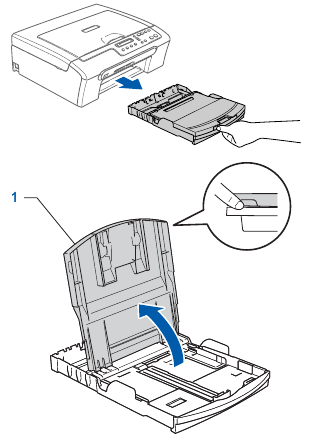

1. Pull the paper tray completely out of the machine and lift the output paper tray cover (1).

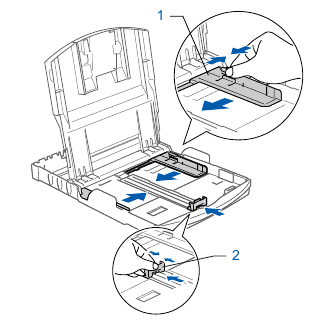

2. Press and slide the paper side guides (1) and paper length guide (2) to fit the paper size.


3. Fan the stack of paper well to avoid paper jams and misfeeds.

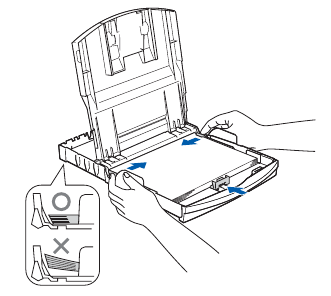

4. Gently put the paper into the paper tray print side down and top edge first.
   Check that the paper is flat in the tray.

5. Gently adjust the paper side guides with both hands and the paper length guide to fit the paper.
   Make sure that the paper guides touch the edges of the paper.
   Note
   Be careful that you do not push the paper in too far; it may lift at the back of the tray and cause paper feed problems.

6. Close the output paper tray cover.

7. Slowly push the paper tray completely into the machine.

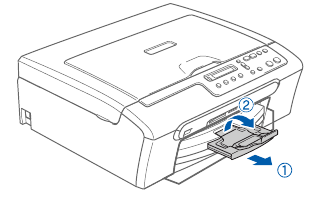

8. While holding the paper tray in place, pull out the paper support ( ) until it clicks, and then unfold the paper support flap ( ).


Note
Do not use the paper support flap for Legal paper.

Connecting the power cord

1. Connect the power cord


Choosing your language

1. After connecting the power cord, the LCD shows:
   Press OK.

2. Press or to choose your language and press OK.

3. If your language is chosen, press (Yes).


If you have set the language wrongly, you can change the language after setting the date and time. (For details, see Changing LCD language of the User's Guide)

Installing the ink cartridges

Warning
If ink gets in your eyes, wash them out with water at once, and if irritation occurs consult a doctor.

1. Make sure that the power is turned on.
   The LCD shows:

2. Open the ink cartridge cover (1).

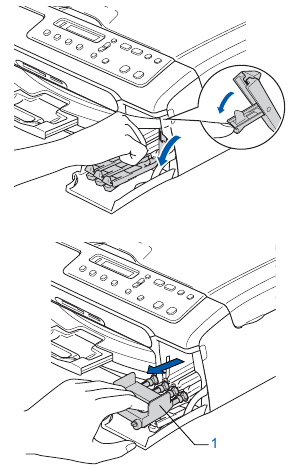

3. Pull all the lock release levers down and remove the yellow protective part (1).
   Note
   Do not throw away the yellow protective part. You will need it if you transport the machine.

4. Take out the ink cartridge.

5. Carefully remove the protective yellow cap (1).

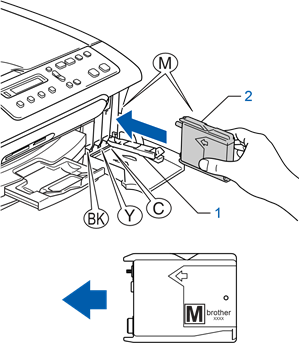

6. Install each ink cartridge in the direction of the arrow on the label.
   Take care to match the colour of the lock release lever (1) with the cartridge colour (2), as shown in the diagram below.

7. Lift each lock release lever and push it until it clicks, and then close the ink cartridge cover.


Note
If the LCD shows Install Black, Install Yellow, Install Cyan or Install Magenta after you install the ink cartridges, check that the ink cartridges are installed properly.

The machine will clean the ink tube system for use for the first time. This process will occur only once, the first time ink cartridges are installed. The cleaning process will last approximately four minutes. The LCD shows:

Caution

• DO NOT take out ink cartridges if you do not need to replace them. If you do so, it may reduce the ink quantity and the machine will not know the quantity of ink left in the cartridge.
• DO NOT shake the ink cartridges. If ink stains your skin or clothing, wash with soap or detergent at once.
• DO NOT repeatedly insert and remove the cartridges. If you do so, ink may seep out of the cartridge.
• If you mix the colours by installing an ink cartridge in the wrong position, clean the print head several times after correcting the cartridge installation. (See Cleaning the print head in Appendix B of the User's Guide.)
• Once you open an ink cartridge, install it in the machine and use it up within six months of installation. Use unopened ink cartridges by the expiration date written on the cartridge package.
• DO NOT dismantle or tamper with the ink cartridge, this can cause the ink to leak out of the cartridge.
• Brother multifunction machines are designed to work with ink of a particular specification and will work to a level of optimum performance when used with genuine Brother branded ink cartridges. Brother cannot guarantee this optimum performance if ink or ink cartridges of other specifications are used. Brother does not therefore recommend the use of cartridges other than genuine Brother branded cartridges with this machine or the refilling of empty cartridges with ink from other sources. If damage is caused to the print head or other parts of this machine as a result of using incompatible products with this machine, any repairs required as a result may not be covered by the warranty.

Print quality check

1. After the cleaning cycle is finished, the LCD shows:

2. Make sure paper is loaded in the paper tray.
   Press Colour Start.
   The machine starts printing the Print Quality Check Sheet (only during initial ink cartridge installation).
3. Check the quality of the four colour blocks on the sheet.
   (black/ yellow/ cyan/ magenta)
   Improper Setup
   Avoid touching the printed surface of the paper immediately after printing, the surface may not be completely dry and may stain your fingers.

4. The LCD shows:

5. Do one of the following:

• „ If all lines are clear and visible, press (Yes) to finish the quality check.
• „ If you can see missing short lines, press (No) and go to step 6.


6. The LCD asks you if the print quality is OK for black and colour. Press (Yes) or (No).

   After pressing (Yes) or (No) for both black and colour, the LCD shows:

7. Press (Yes), the machine will then start cleaning the colours.
8. After cleaning is finished, press Colour Start.
   The machine starts printing the Print Quality Check Sheet again and goes back to step 3.

Setting the LCD contrast

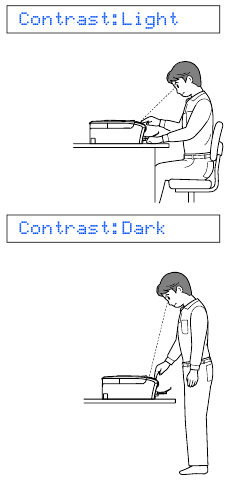

You can adjust the LCD contrast for a sharper and more vivid display. If you are having difficulty seeing the LCD from your position, we recommend the following contrast setting for improved viewing.

1. Press Menu.
2. Press or to choose 0.Initial Setup, and then press OK.
3. Press or to choose 2.LCD Contrast, and then press OK.
4. Press or to choose Dark or Light.
5. Press OK.
6. Press Stop/Exit.


Setting the date and time

Setting the date and time allows the machine to clean the print head regularly and maintain optimum print quality. It also allows the machine to name files created when using the Scan to Card feature.

1. Press Menu.
2. Press or to choose 0.Initial Setup, and then press OK.
3. Press or to choose 1.Date/Time, and then press OK.
4. Press repeatedly to enter the last two digits of the year, and then press OK.
   (e.g. Enter 0 6 for 2006.)

5. Press repeatedly to enter the two digits for the month, and then press OK.
   (e.g. Enter 0 3 for March.)

6. Press repeatedly to enter the two digits for the day, and then press OK.
   (e.g. Enter 0 1 for the first of the month.)

7. Press repeatedly to enter the two digits for the hour in 24-hour format, and then press OK.
   (e.g. Enter 1 5 for 3:00 P.M.)

8. Press repeatedly to enter the two digits for the minute, and then press OK.
   (e.g. Enter 1 5, 2 5 for 3:25 P.M.)
   Note
   You can increase or decrease the number rapidly by holding down or .

9. Press Stop/Exit.

Note
If you want to start again, press Stop/Exit to go back to Step 1.
To confirm the current date and time, print out the Users Settings Report. (See "Printing reports" in Chapter 1 of the User's Guide.)

Go to Supplied CD-ROM 'MFL-Pro Suite' on the next page to install the drivers.

Supplied CD-ROM 'MFL-Pro Suite'

Windows^®

Install MFL-Pro Suite
You can install the MFL-Pro Suite software and multifunction drivers.

Install Other Drivers or Utilities
You can install additional MFL-Pro Suite software utilities, install without PaperPort^® SE, or install the printer driver only.

User's Guide
View the Software User's Guide in HTML format. The Software User's Guide includes instructions for features available when connected to a computer. (eg. Printing and scanning details)

On-Line Registration
You will be pointed to the Brother Product Registration Web page for quick registration of your machine.

Brother Solutions Center
You can access the Brother Solutions Center which is a Web site offering information about your Brother product including FAQs, User's Guides, driver updates and tips for using your machine.

Repair MFL-Pro Suite
If an error occurred during the installation of the MFL-Pro Suite, use this selection to automatically repair and re-install the MFL-Pro Suite.

Note
MFL-Pro Suite includes the Printer Driver, Scanner Driver, Brother ControlCenter3, ScanSoft^® PaperPort^® SE with OCR and True Type^®fonts. PaperPort^® SE with OCR is a document management application for viewing scanned documents.

Macintosh^®

Start Here OSX
You can install the MFL-Pro Suite that includes the printer driver, scanner driver and the Brother ControlCenter2 for Mac OS^® 10.2.4 or greater.

Presto! PageManager
You can also install Presto!^® PageManager^® to add OCR capability to the Brother ControlCenter2 and easily scan, share and organize photos and documents.

Documentation
View the Software User's Guide in HTML format. The Software User's Guide includes instructions for features available when connected to a computer. (eg. Printing and scanning details)

Brother Solutions Center
You can access the Brother Solutions Center which is a Web site offering information about your Brother product including FAQs, User's Guides, driver updates and tips for using your machine.

On-Line Registration
You will be pointed to the Brother Product Registration Web Page for quick registration of your machine.

Follow the instructions on this page for your operating system and interface.
For the latest drivers and documentations and to find the best solution for your problem or question, access the Brother Solutions Center directly from the driver or visithttp://solutions.brother.com

For USB Interface Users (For Windows ® 98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition)

Important
Make sure that you have finished the instructions from Step 1 Setting Up the Machine.

Note

• Please close any applications running before installing MFL-Pro Suite.
• Make sure there are no memory cards in the media drive of the machine.

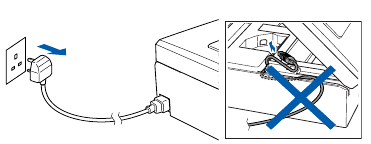

1. Disconnect the machine from the power socket and from your computer, if you already connected an interface cable.

2. Turn on your PC. (For Windows ® 2000 Professional/XP/XP Professional x64 Edition, you must be logged on with Administrator rights.)
3. Put the supplied CD-ROM into your CD-ROM drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.

4. The CD-ROM main menu will appear. Click Install MFL-Pro Suite.


Note

• If this window does not appear, use Windows Explorer to run the setup.exe program from the root folder of the Brother CD-ROM.
• If you are using Windows ® 2000 Professional and have not installed service pack 3 (SP3) or greater: To access the PhotoCapture Center™ features from your computer you may have to install a Windows ® 2000 update first. The Windows ® 2000 update is included with the MFL-Pro Suite installer. To install the update, follow the steps below:

1. Click OK to start installation of the Windows updates.

2. When instructed, click OK to restart your computer.
3. After the computer restarts, the installation of MFL-Pro Suite will automatically continue.
   If the installation does not continue automatically, open the main menu again by ejecting and then reinserting the CD-ROM disc or double-click the setup.exe program from the root folder, and continue from Step 4 to install the MFL-Pro Suite.

5. After reading and accepting the ScanSoft^® PaperPort^® SE License Agreement, click Yes.

6. The installation of PaperPort^® SE will automatically start and is followed by the installation of MFL-Pro Suite.
7. When the Brother MFL-Pro Suite Software License Agreement window appears, click Yes if you agree to the Software License Agreement.

8. Choose Standard, and then click Next. The installation continues.

9. When this screen appears, go to the next step.

10. Using both hands, use the plastic tabs on both sides of the machine to lift the scanner cover until it locks securely into the open position.

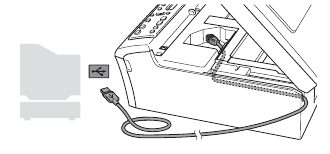

11. Connect the USB cable to the USB socket marked with a symbol. You will find the USB socket inside the machine on the right as shown below.

12. Carefully guide the USB cable into the trench as shown below, following the trench around and toward the back of the machine.


Improper Setup

• DO NOT connect the machine to a USB port on a keyboard or a non-powered USB hub. Brother recommends that you connect the machine directly to your computer.
• Make sure that the cable does not restrict the cover from closing, or an error may occur.

13. Lift the scanner cover to release the lock ( ). Gently push the scanner cover support down ( ) and close the scanner cover ( ).

14. Turn on the machine by connecting the power cord.
    The installation of the Brother drivers will automatically start. The installation screens appear one after another. Please wait, it will take a few seconds for all screens to appear.


15. When the On-Line Registration screen is displayed, make your selection and follow the on-screen instructions.

16. Click Finish to restart your computer.
    (After restarting the computer, for Windows^® 2000 Professional/XP/XP Professional x64 Edition, you must be logged on with Administrator rights.)


For USB Interface Users (For Mac OS ® X 10.2.4 or greater)

1. Using both hands, use the plastic tabs on both sides of the machine to lift the scanner cover until it locks securely into the open position.

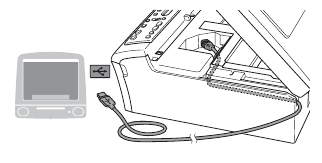

2. Connect the USB cable to the USB socket marked with a symbol. You will find the USB socket inside the machine on the right as shown below.

3. Carefully guide the USB cable into the trench as shown below, following the trench around and toward the back of the machine.


Improper Setup

• DO NOT connect the machine to a USB port on a keyboard or a non-powered USB hub. Brother recommends that you connect the machine directly to your computer.
• Make sure that the cable does not restrict the cover from closing, or an error may occur.

4. Lift the scanner cover to release the lock ( ). Gently push the scanner cover support down ( ) and close the scanner cover ( ).
   Note
   Make sure that the machine is turned on by connecting the power cord.


5. Turn on your Macintosh^®.
6. Put the supplied CD-ROM into your CD-ROM drive.

7. Double-click the Start Here OSX icon to install. Follow the on-screen instructions
   Note
   Please wait, it will take a few seconds for the software to install. After the installation, the computer will restart automatically.

8. The Brother software will search for the Brother device. During this time the following screen will appear.

9. When this screen appears, click OK.
   For Mac OS^® X 10.3.x or greater users:
   The MFL-Pro Suite, Brother printer driver, scanner driver and Brother ControlCenter2 have been installed and the installation is now complete. Go to step 14.

10. For Mac OS^® X 10.2.4 to 10.2.8 users:
    Click Add.

11. Choose USB.

12. Choose DCP-XXXX (where XXXX is your model name), and then click Add.

13. Click Print Center, then Quit Print Center.
    The MFL-Pro Suite, Brother printer driver, scanner driver and Brother ControlCenter2 have been installed and the installation is now complete.

14. To install Presto! ® PageManager ®, click the Presto! PageManager icon and follow the on-screen instructions.


Note
When Presto! ® PageManager ® is installed OCR capability is added to the Brother ControlCenter2. You can easily scan, share and organize photos and documents using Presto! ® PageManager ®.
Presto! ® PageManager ® has been installed and the installation is now complete.

Consumables

Replacement consumables

When the time comes to replace ink cartridges, an error message will be indicated on the LCD. For more information about the ink cartridges for your machine, visit http://solutions.brother.com or contact your local Brother re-seller.

Ink cartridge

Black	Yellow	Cyan	Magenta
LC1000BK	LC1000Y	LC1000C	LC1000M
