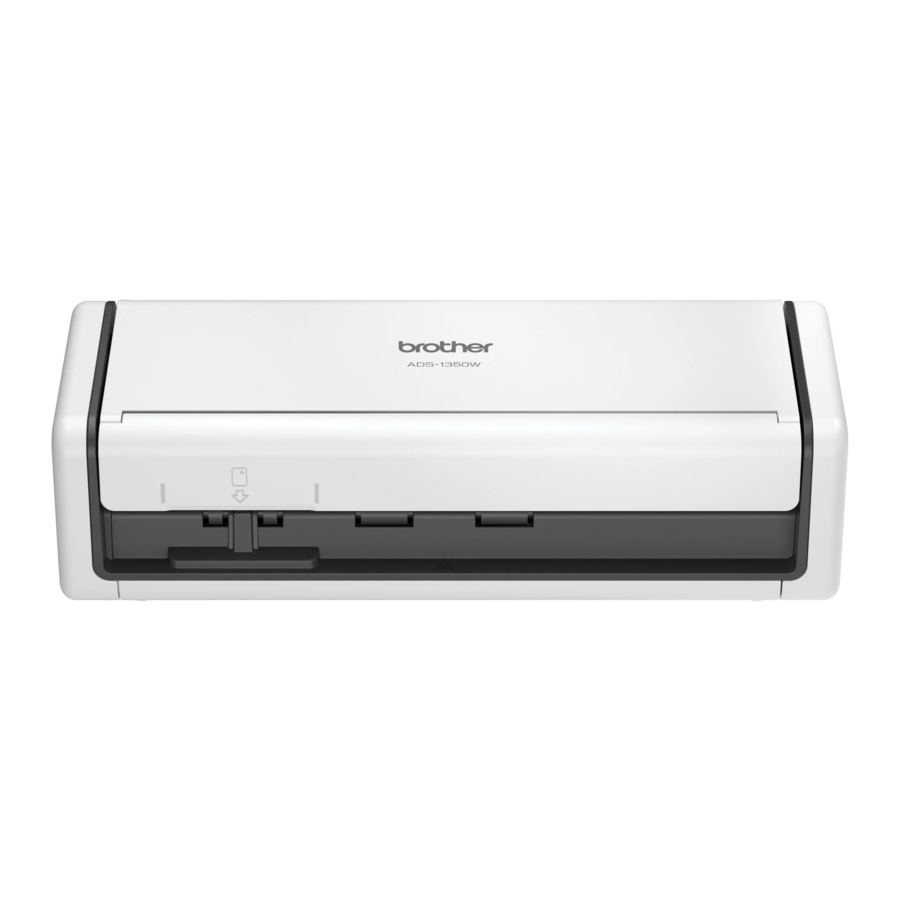

Brother ADS-1300, ADS-1350W, ADS-1800W Manual

Quick Setup Guide

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injuries.

1. Unpack the machine and check the components
   The components included in the box may differ depending on your country. Remove the protective tape and film covering the machine. Open the Top Cover, and then remove the protective tape.


• This product is packaged in a plastic bag. To avoid suffocation, keep plastic bags away from babies and children. Do not use the bag in cribs, beds, carriages, or playpens. The bag is not a toy.
• If you plan to use an AC Adapter, we recommend using the Brother AC Adapter. This AC Adapter is configured to the exact voltage and current requirements of this Brother machine. Use of unsupported AC Adapters may result in damage to your product.

NOTE

• We recommend saving the original packaging in case you must ship your machine.
• For Mexico and countries in Southern America: The AC Adapter and USB Type-A to USB Type-C included, but the USB Type-C Cable is not included.
• The AC Adapter is not included in all countries, but is available as an optional accessory. Look for part number LK-1001C (the AC Adapter (SA-AD-001) and a USB Type-A to USB Type-C Cable) on the Brother website.

For Network Users: Important Notice for Network Security (ADS-1350W/ADS-1800W only)
Your machine's default password is located on the bottom of the machine and marked "Pwd". We recommend immediately changing the default password to use network tools/utilities securely and to protect your machine from unauthorized access.

Unless otherwise specified, illustrations in this guide show the ADS-1800W.

2. Connect the USB Cable


If using the AC Adapter:
Connect the AC Adapter as shown.

NOTE

• Before loading documents into the Automatic Document Feeder (ADF), fan the paper and align its edges as shown in the illustration on the machine's Top Cover.
• Use the USB Type-C Cable included in the box to connect to your scanner.
• If you purchase a USB Type-C Cable separately, use a Certified USB Cable.
• Make sure to use a computer that has a USB Type-C port that supports 15 W output or higher.
• For Mexico and countries in Southern America: Use only the AC Adapter supplied with this product.

3. Select your language (ADS-1800W only)
   Press [Settings] > [Initial Setup] > [Local Language] and select your language. Press
4. Connect your machine and install software
   Select your preferred scanning method and choose your connection method.
   1. Using your scanner with your computer or mobile device Visit setup.brother.com to download and install the required Brother software.
      For Mac: Visit support.brother.com/mac to download the required Brother software.
      Follow the on-screen instructions to continue installation.
      For Mobile Devices (ADS-1350W/ADS-1800W only):
      Set up the connection manually.


Setup Finished
When finished, restart your computer. If not successful, set up the connection manually.

2. Using your scanner as a standalone device (ADS-1350W/ADS-1800W only)
   Connect your machine to your network via Wi-Fi.
   You can set up your Wi-Fi connection using either the machine's control panel or your computer.
   This machine supports only 2.4 GHz.

Manual Wireless Setup (ADS-1350W/ADS-1800W only)
If you do not have a computer connected to the network or if you cannot connect your machine using your computer, try to set up the connection manually.

ADS-1350W

1. Press and hold for two seconds.
2. When the Wi-Fi Indicator starts blinking, press the WPS button on your wireless access point/router.
3. When the wireless setup is successful, the Wi-Fi Indicator stops blinking and remains lit.

ADS-1800W

1. Press > [Find Wi-Fi Network] > [Yes].
2. Select the SSID (Network Name). Enter the Network Key (Password).
   If you cannot find your SSID or Network Key, ask your network administrator or wireless access point/router manufacturer.
3. When the wireless setup is successful, the LCD displays [Connected].

NOTE

• If setup is not successful, restart your machine and the wireless access point/router, and then repeat these steps.
• If using a computer, go back to to install software.

NOTE
If setup is still not successful, visit support.brother.com for FAQs, Troubleshooting, and manuals.

Power Shortage Error

LED Status (ADS-1300/ADS-1350W)						LCD Status (ADS-1800W)	Scan Operation	Description
	Off		Off		Lit	The Home Screen appears.		The machine works correctly, running on over 15 W power.
	Flashing		Flashing		Off	The error message "Power Shortage (Code: 01)" appears.	✕	The machine does not work due to a power shortage (less than 15 W). Visit support.brother.com for FAQs & Troubleshooting or see your model's Online User's Guide.
	Off		Off		Off	The machine is not turned on and nothing appears.	✕

DON'T FORGET TO REGISTER!
Registering your product will provide purchase confirmation, proof of ownership and, if you choose, allow us to notify you of product enhancements and special offers!
You can register online at: www.registermybrother.com (USA)

Product Safety Guide

Failure to follow these instructions may result in an increased risk of personal injury or damage to property, including through fire, electrical shock, burns, or suffocation.

Symbols and conventions used in the documentation

The following symbols and conventions are used throughout the documentation.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injuries.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injuries.

IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in damage to property or loss of product functionality.

NOTE
Notes tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.

	Prohibition icons indicate actions that must not be performed.
	This icon indicates that flammable sprays must not be used.
	This icon indicates that organic solvents, alcohol, or other liquids must not be used.
	Electrical Hazard icons alert you to possible electrical shock.
	Fire Hazard icons alert you to the possibility of fire.
	This icon alerts you to the areas that contain moving parts.
	Unplug icons indicate that you should unplug the machine.

Follow all warnings and instructions marked on the machine.

NOTE
The illustrations in this guide show the ADS-1800W.

Choosing a location

Place your machine and AC Adapter (hereinafter collectively referred to as "the unit") on a flat, level, stable surface that is free of vibration and shocks, such as a desk. Choose a location where the temperature remains between 41°F and 95°F (5°C and 35°C) and the humidity is between 20% to 80% (without condensation).

For users using the AC Adapter (SA-AD-001):
The AC Adapter should be connected to an AC power source within the range indicated on Specifications in the Online User's Guide. DO NOT connect it to a DC power source or inverter. Doing this might cause an electrical shock or a risk of fire. If you are not sure what kind of power source you have, contact a qualified electrician.

DO NOT expose the unit to direct sunlight, excessive heat, open flames, corrosive gasses, moisture or dust.
DO NOT place the unit on a carpet or rug, as this will expose it to dust. Exposing the unit to dust may create a risk of an electrical short or fire. It may also damage the unit and/or render it inoperable.

DO NOT place the unit near heaters, air conditioners, electric fans, refrigerators, radiators, or water. Doing so may create the risk of a short circuit or fire should water come into contact with the unit (including condensation from heating, air conditioning, and/or ventilation equipment that may be sufficient to create a short circuit or fire).

DO NOT place the unit near chemicals or in a place where chemicals could be spilled on it. Should chemicals come into contact with the unit, there may be a risk of fire or electrical shock. In particular, organic solvents or liquids such as benzene, paint thinner, polish remover, or deodorizer may melt or dissolve the plastic cover and/or cables, resulting in a risk of fire or electrical shock. These or other chemicals may also cause the unit to malfunction or become discolored.

The product should be placed so as not to come into contact with any wall or other device. Otherwise, it could create a risk of overheating and/or fire. Clearance is needed between the product and the wall.

Make sure that no part of the unit protrudes from the desk or stand where the unit is located. Make sure that the unit is located on a flat, level, and stable surface free from vibration. Failure to observe these precautions could cause the unit to fall, causing injury to you or to others and serious damage to the unit.

Avoid placing the unit in a high-traffic area. If you must place it in a high-traffic area, ensure that the unit is in a safe location where it cannot be accidentally knocked over, which could cause injury to you or others and serious damage to the unit.

Ensure that cables and cords leading to the unit are secured so as not to pose a trip hazard.

• DO NOT place your machine next to sources of interference, such as speakers or the base units of non-Brother cordless telephones. Doing so may interfere with the operation of the machine's electronic components.
• DO NOT connect the unit to an AC power outlet controlled by wall switches or automatic timers. Disruption of power can delete information from the machine's memory, and repeated cycling of the power can damage the unit.

To use the unit safely

ELECTRICAL HAZARDS
Failure to follow the warnings in this section may create the risk of an electrical shock. In addition, you could create the risk of an electrical short, which may create the risk of a fire.

There are high-voltage electrodes inside the machine and the AC Adapter. Before you access the inside of the machine, make sure you have unplugged the USB cable from the computer and the AC Adapter from the AC power outlet.

DO NOT push objects of any kind into the unit through slots or openings in the machine, as they may touch dangerous voltage points or short out parts.

DO NOT continue using the machine or the AC Adapter if it has been dropped or the machine has been damaged. Instead, unplug the USB cable from the computer and the AC Adapter from the AC power outlet and contact Brother Authorized Service Personnel.

If water, other liquids, or metal objects get inside the machine or the AC Adapter, immediately unplug the USB cable from the computer and the AC Adapter from the AC power outlet and contact Brother Authorized Service Personnel.

AC Adapter Safety (For users using the AC Adapter (SA-AD-001))

Only use the AC Adapter with the machine. Only plug the AC Adapter into a power outlet with voltage that is within the range indicated on Specifications in the Online User's Guide. Failure to do so may result in injury to yourself or others, or damage to the machine or other property. Brother does not assume any responsibility for any damage resulting from using an AC Adapter other than the one specified.

DO NOT use a damaged AC Adapter.

DO NOT damage, modify, or place heavy objects on the AC Adapter.

DO NOT forcibly bend or pull the cord of the AC Adapter. DO NOT drop, hit, or otherwise damage the AC Adapter.

DO NOT use or touch the unit during a thunderstorm when the AC Adapter is plugged in. There may be a risk of electrical shock from lightning when the machine is used during a thunderstorm.

When disconnecting the AC Adapter from the machine or from the power outlet, always hold the AC Adapter or the connector, not the cable, and pull firmly.
Failure to do so may result in exposed or broken cable wires and/or create a risk of fire.

If you notice any damage or abnormalities while using the AC Adapter, do not touch it. Disconnect the power supply from the AC power outlet in a safe manner, such as by turning off the breaker, and contact Brother Authorized Service Personnel.

Brother strongly recommends that you DO NOT use any type of extension cord.

Make sure that the AC Adapter is firmly plugged into a standard power outlet. Do not use an outlet that is loose. If the AC Adapter is not completely plugged into the power outlet and adapter block, the adapter may become hot and/or catch fire.

DO NOT exceed the rated input or output listed on the rated label on the AC Adapter.

DO NOT connect the AC Adapter to other products.

FIRE HAZARDS
Failure to follow the warnings in this section may create the risk of a fire.

When cleaning the inside or outside of the unit, DO NOT use flammable substances, any type of spray, any organic solvent, alcohol, ammonia, or any liquid that contains alcohol or ammonia. Doing this may cause a risk of fire or electrical shock.

Do not disassemble or modify the unit, otherwise fire or electrical shock may result. If the unit requires repair, contact Brother Authorized Service Personnel.

If the machine or the AC Adapter becomes hot, releases smoke, or generates any strong smells, immediately unplug the USB cable from the computer and the AC Adapter from the AC power outlet and call Brother Customer Service.

For users using the AC Adapter (SA-AD-001):
DO NOT touch the AC Adapter or handle the power plug with wet hands.

DO NOT put pressure or weight on the unit or use it for any purpose beyond its intended purpose.

Wait until pages have exited the machine before taking them out, or you could cause injury to your fingers by trapping them in a roller.

Be careful not to cut your fingers on the edge of the Carrier Sheet. The Carrier Sheet is not included, but is available as an optional accessory. Look for part number CS-A3301 on the Brother website.

Some areas of the machine can cause injury if the Cover (shaded area shown) is closed with force. Be careful when placing your hand in or near the shaded area.

DO NOT carry the machine by holding the Automatic Document Feeder (ADF). Doing this may cause the Automatic Document Feeder (ADF) to detach from the machine. Only carry the machine by placing your hands under the entire machine.

When multiple devices, including this product, are connected to a computer using USB cables, you may feel an electric charge when you touch metal parts of the product.

If you do not intend to use the machine for an extended period of time, unplug the USB cable from the computer or the AC Adapter from the power outlet.

DO NOT swing the USB cable or the AC Adapter around or play with it. Doing so may result in injury to yourself or others.

Use caution when operating the machine to prevent clothing, hair, or other accessories from being drawn into the machine, otherwise injury may result. In the event that an object is drawn into the machine, immediately disconnect the machine from the power source.

• Disruption of power can delete data in the machine's memory.
• DO NOT put objects on top of the unit.
• If the machine does not operate normally when the operating instructions are followed, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage or minor exposure to electromagnetic waves and will often require extensive work by a qualified technician to restore the machine to normal operation.
• A distinct change in the machine's performance may indicate a need for service.
• (ADS-1800W only)
  DO NOT touch the LCD while the machine is booting up. Doing this may cause an error.

Important Safety Instructions

DO NOT attempt to service the unit yourself.
Disassembling the unit may expose you to dangerous voltage points and other risks and may void your warranty. Refer all servicing to a Brother Authorized Service Center. For the location of your nearest Brother Authorized Service Center, please call:
In USA: 1-877-BROTHER (1-877-276-8437)
