Beurer BC 32 - Wrist blood pressure monitor Manual

Included in delivery

• Blood pressure monitor with cuff
• 2 x 1.5 V LR03 AAA batteries
• Storage box
• Instructions for use

Getting to know your instrument

Check that the device packaging has not been tampered with and make sure that all contents are present. Check that the device packaging has not been tampered with and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.
The wrist blood pressure monitor is used for non-invasive measurement and monitoring of adults' arterial blood pressure. You can use it to measure your blood pressure quickly and easily, storing the results and displaying the progression of readings. A warning is issued for anyone suffering from cardiac arrhythmia.
The recorded values are classified and evaluated graphically.

Important information

Signs and symbols

The following symbols are used in these instructions for use, on the packaging and on the type plate for the device and accessories:

Advice on use

• In order to ensure comparable values, always measure your blood pressure at the same time of day.
• Do not take a measurement within 30 minutes after eating, drinking, smoking or exercising.
• Before the initial blood pressure measurement, make sure always to rest for about 5 minutes.
• Furthermore, if you want to take several measurements in succession, make sure always to wait for at least 1 minute between the individual measurements.
• Repeat the measurement if you are unsure of the measured value.
• The measurements taken by you are for your information only – they are not a substitute for a medical examination! Discuss the measurements with your doctor, and never base any medical decisions on them (e.g. medicines and their administration)!
• Using the blood pressure monitor outside your home environment or whilst on the move (e.g. whilst travelling in a car, ambulance or helicopter, or whilst undertaking physical activity such as playing sport) can influence the measurement accuracy and cause incorrect measurements.
• Do not use the blood pressure monitor on newborns or patients with preeclampsia. We recommend consulting a doctor before using the blood pressure monitor during pregnancy.
• This device is not intended for use by people (including children) with restricted physical, sensory or mental skills or a lack of experience and/or a lack of knowledge, unless they are supervised by a person who is responsible for their safety or are instructed by such a person in how to use the device. Supervise children around the device to ensure they do not play with it.
• In the case of restricted circulation on the arm as a result of chronic or acute vascular diseases (including vascular constriction), the accuracy of the wrist measurement is limited. In this case you should avoid using an upper arm blood pressure monitor.
• Cardiovascular diseases may lead to incorrect measurements or have a detrimental effect on measurement accuracy. The same also applies to very low blood pressure, diabetes, circulatory disorders and arrhythmias as well as chills or shaking.
• The blood pressure monitor must not be used in connection with a high-frequency surgical unit.
• Only use the unit on people who have the specified wrist measurement for the device.
• Please note that when inflating, the functions of the limb in question may be impaired.
• During the blood pressure measurement, blood circulation must not be stopped for an unnecessarily long time. If the device malfunctions, remove the cuff from the arm.
• Do not allow sustained pressure in the cuff or frequent measurements. The resulting restriction of the blood flow may cause injury.
• Ensure that the cuff is not placed on an arm in which the arteries or veins are undergoing medical treatment, e.g. intravascular access or therapy, or an arteriovenous (AV) shunt.
• Do not use the cuff on people who have undergone a mastectomy.
• Do not place the cuff over wounds as this may cause further injury.
• Place the cuff on your wrist only. Do not place the cuff on other parts of the body.
• The blood pressure monitor can only be operated with batteries.
• To conserve the batteries, the monitor switches off automatically if no buttons are pressed for one minute.
• The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or careless use.

Storage and Care

• The blood pressure monitor is made up of precision electronic components. Accuracy of readings and the instrument's service life depend on careful handling.
  • You should protect the device from impact, moisture, dirt, major temperature fluctuations and direct exposure to the sun's rays.
  • Never drop the device.
  • Do not use near strong electromagnetic fields, i.e. keep it away from any radio systems and mobile phones.
• If the instrument is not used for any length of time, we recommend removing the batteries.

Notes on handling batteries

• If your skin or eyes come into contact with battery fluid, flush out the affected areas with water and seek medical assistance.
• Choking hazard! Small children may swallow and choke on batteries. Store the batteries out of the reach of small children.
• Observe the plus (+) and minus (-) polarity signs.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• Protect the batteries from excessive heat.
• Risk of explosion! Never throw batteries into a fire.
• Do not charge or short-circuit batteries.
• If the device is not to be used for a long period, take the batteries out of the battery compartment.
• Use identical or equivalent battery types only.
• Always replace all batteries at the same time.
• Do not use rechargeable batteries.
• Do not disassemble, split or crush the batteries.

Repair

• Batteries do not belong in domestic refuse. Used batteries should be disposed of at the collection points provided.
• Never open the instrument. If these instructions are not heeded, the warranty will be null and void.
• Never attempt to repair the instrument or adjust it yourself. We can no longer guarantee perfect functioning if you do.
• Repairs may only be performed by Customer Service or authorized dealers. However, always check the batteries and replace them if necessary prior to making any complaint.

Notes on electromagnetic compatibility

• The device is suitable for use in all environments listed in these instructions for use, including domestic environments.
• The use of the device may be limited in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the display/device.
• Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated, this device as well as the other devices must be monitored to ensure they are working properly.
• The use of accessories other than those specified or provided by the manufacturer of this device can lead to an increase in electromagnetic emissions or a decrease in the device's electromagnetic immunity; this can result in faulty operation.
• Failure to comply with the above can impair the performance of the device.

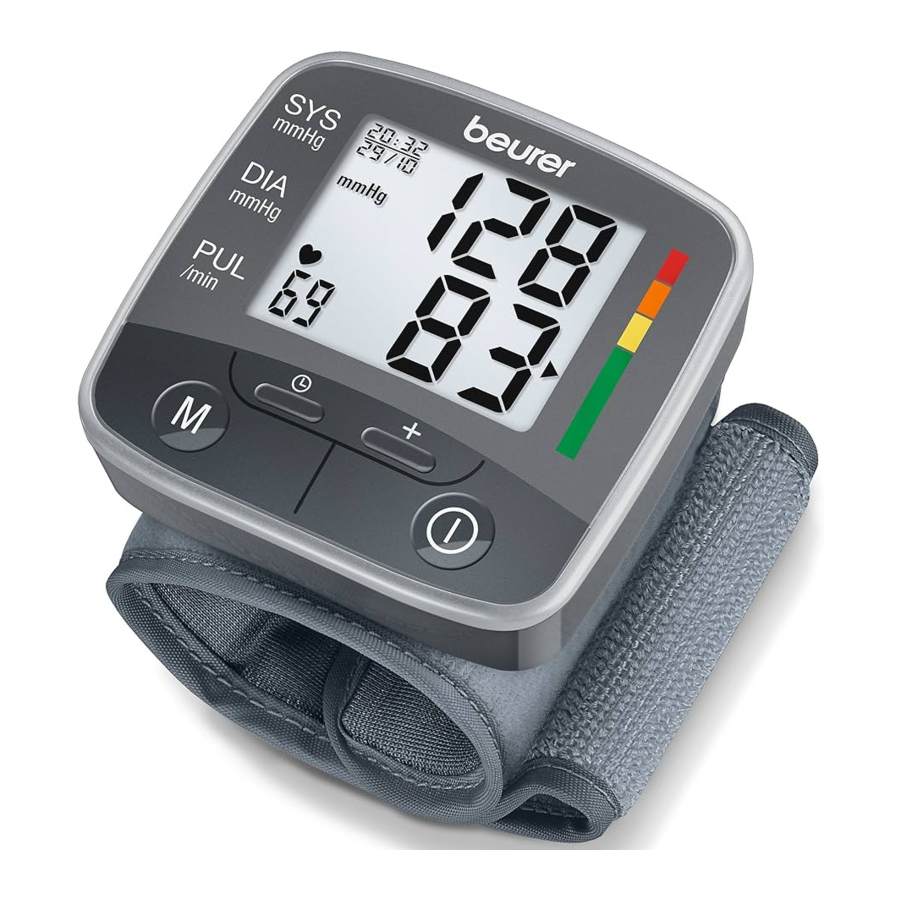

Unit description

1. Battery cover
2. Memory button M
3. Function key
4. Adjustment button +
5. START/STOP button
6. Wrist cuff
7. Display
8. Risk indicator

Icons in the display

1. "Change battery" icon
2. Error icon
3. Systolic pressure
4. Cardiac arrhythmia icon
5. mmHg unit
6. Icon for users
7. Diastolic pressure
8. Time and date
9. Number of memory space
10. Pulse icon
11. Measured pulse
12. Risk indicator
13. Memory display day/night ( , : AM, PM)

Prepare measurement

Inserting battery

• Remove the battery cover (left side of the unit).

• Insert two 1.5 V AAA (alkaline, type LR 03). Make absolutely sure that you insert the batteries with the correct polarity as marked. Do not use rechargeable batteries.
• Replace the battery cover carefully.

If the 'change battery' icon is displayed, measurement is no longer possible and you must replace all the batteries.

Setting date and time

It is vital to set the date and time. This is the only way that measurements can be saved and recalled with the correct date and time.

Proceed as follows to set the date and time:

• Switch on the blood pressure monitor with the button.
• Press the function key for over 5 seconds
• The month starts flashing. Using the + function key, set the month 1 to 12 and confirm with the function key
• Set the day, hour and minute and confirm in each case with the function key .
• Confirm your selection with the function key .

Measuring blood pressure

Ensure the device is at room temperature before measuring.
The measurement can be performed on the left or right wrist.

Positioning cuff

• Bare your wrist, making sure that the circulation in the arm is not restricted by any clothes etc. that are too tight. Position the cuff on the inside of your wrist.

• Fasten the cuff with the Velcro fastening so that the upper edge of the monitor is positioned approx. 1 cm below the ball of your thumb.

• The cuff has to be fitted tightly around the wrist but should not constrict it.


Blood pressure may vary between the right and left wrist, which may mean that the measured blood pressure values are different. Always perform the measurement on the same wrist. If the values between the two wrists are significantly different, please consult your doctor to determine which wrist should be used for the measurement.

Correct posture

• Before the initial blood pressure measurement, make sure always to rest for about 5 minutes. Otherwise there may be divergences.
• You can perform the measurement while sitting or lying. To carry out a blood pressure measurement, make sure you are sitting comfortably with your arms and back leaning on something. Do not cross your legs. Place your feet flat on the ground. Make sure to rest your arm and move it. Always make sure that the cuff is at heart level. Otherwise significant deviations can occur. Relax your arm and the palm of your hand.

• In order not to distort the result, it is important to keep still during the measurement and not talk.

Select memory

Switch on the blood pressure monitor with the button. Select the required memory space by pressing the function key +. You have two memories (60 memory spaces each) in order to save the test results of 2 different people separately, or else save measurements in the morning and evening separately.

Measuring blood pressure

• Put on the cuff as described previously and assume the position in which you want to carry out the measurement.
• Using the buttons +, select the user memory 1 or 2. Start the measurement process by pressing button . After checking the display with all digits lighting up, the monitor will automatically inflate. Following the self-test, during which all display elements briefly appear, the measurement begins. During inflation the device already determines measured values used to estimate the required inflation pressure. If this pressure is insufficient, the device automatically inflates by another.
• Then the pressure in the cuff is slowly released and the pulse is measured.
• When the measurement has been completed, the remain ing air pressure is released very quickly. The pulse, the systolic and the diastolic blood pressure are displayed.
• You can interrupt measurement at any time by pressing the button .
• The icon appears if it has not been possible to perform the measurement properly. Observe the section in these instructions on error messages/troubleshooting and repeat the measurement.
• The device switches off automatically after 1 minute.

Wait for at least 1 minute before taking another measurement.

Evaluating results

Cardiac arrhythmia

This instrument can identify possible cardiac arrhythmia disorders during measurement and if necessary indicates the measurement with the flashing icon .
This may be an indicator for arrhythmia. Arrhythmia is a condition where the heart rhythm is abnormal as a result of defects in the bioelectrical system controlling the heart beat. The symptoms (omitted or premature heart beats, slow or excessively fast heart rate) may be caused, among other things, by heart disease, age, physical predisposition, excessive use of stimulants, stress or lack of sleep. Arrhythmia can only be ascertained through examination by your doctor.
Repeat the measurement if the flashing icon is displayed after the measurement. Please note that you should rest for 5 minutes between measurements and not talk or move during the measurement. If the icon appears often, please contact your doctor. Any self-diagnosis and treatment based on the test results may be dangerous. It is vital to follow your doctor's instructions.

Risk indicator

The measurements can be classified and evaluated in accordance with the following table.
However, these standard values serve only as a general guideline, as the individual blood pressure varies in different people and different age groups etc.
It is important to consult your doctor regularly for advice. Your doctor will tell you your individual values for normal blood pressure as well as the value above which your blood pressure is classified as dangerous.
The classification on the display and the scale on the unit show which category the recorded blood pressure values fall into. If the values of systole and diastole fall into two different categories (e.g. systole in the 'High normal' category and diastole in the 'Normal' category), the graphical classification on the device always shows the higher category; for the example given this would be 'High normal'.

Source: WHO, 1999 (World Health Organization)

Saving/retrieving and deleting results

• The results of each successful measurement are stored together with date and time. With more than 60 items of measured data, the earliest items of data measured are lost.
• Select the desired user memory by pressing the M button and then the + button.
• Press the M button again to display the average of all saved measurements in the user memory.
• Press the M button again to display the average morning measurement for the last 7 days (morning: 5.00 a.m. – 9.00 a.m., display ).
• Press the M button again to display the average evening measurement for the last 7 days (evening: 6.00 p.m. – 8.00 p.m., display ).
• If you continue pressing the M button, the latest individual results are displayed with date and time.
• To clear the memory, press the M button, then the display shows . Press the + button to select the user memory and confirm by pressing M again. Press and hold the + and keys simultaneously for 5 seconds (the display will show ).
• If you wish to change the user memory, see "Select memory"

Error messages / troubleshooting

In the event of errors, the error message appears on the display.
Error messages may appear if:

• It was not possible to record the pulse: ;
• You move or speak during the measurement:: ;
• The cuff is fastened too tightly or loosely: ;
• Errors occur during the measurement: ;
• The pump pressure is higher than 300 mmHg: ;
• The batteries are almost empty .

In such cases, repeat the measurement. Ensure that you do not move or speak during the measurement. If necessary, reinsert or replace the batteries.

Cleaning and storing the device and cuff

• Clean the device and cuff carefully using a slightly damp cloth only.
• Do not use any cleaning agents or solvents.
• Under no circumstances hold the device and cuff under water, as this can cause liquid to enter and damage the device and cuff.
• If you store the device and cuff, do not place heavy objects on the device and cuff. Remove the batteries.

Technical details

Model no.	BC 32
Type	BC32/1
Measurement method	Oscillometric, non-invasive blood pressure measurement on the wrist
Measurement range	Cuff pressure 0 – 300 mmHg, systolic 50 – 250 mmHg, diastolic 30 – 200 mmHg, Pulse 40 –180 beats/minute
Display accuracy	Systolic ± 3 mmHg, diastolic ± 3 mmHg, pulse ± 5% of the value shown
Measurement inaccuracy	Max. permissible standard deviation according to clinical testing: systolic 8 mmHg /diastolic 8 mmHg
Memory	2 x 60 memory spaces
Dimensions	L 72 mm x W 69 mm x H 60 mm
Weight	Approx. 101 g (without batteries)
Cuff size	135 to 195 mm
Permissible operating conditions	+5°C to +40°C, 15 to 93% relative air humidity (non-condensing)
Permissible storage conditions	-25°C to +70°C, ≤ 93% relative air humidity, 700 –1060 hPa ambient pressure
Power supply	2 x 1.5 V AAA batteries
Battery life	For approx. 250 measurements, depending on the blood pressure level and/or pump pressure
Classification	Internal supply, IP21, no AP or APG, continuous operation, type BF applied part

The serial number is located on the device or in the battery compartment. Technical information is subject to change without notification to allow for updates.

• The accuracy of this blood pressure monitor has been carefully checked and developed with regard to a long useful life. If using the device for commercial medical purposes, it must be regularly tested for accuracy by appropriate means. Precise instructions for checking accuracy may be requested from the service address.
