Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

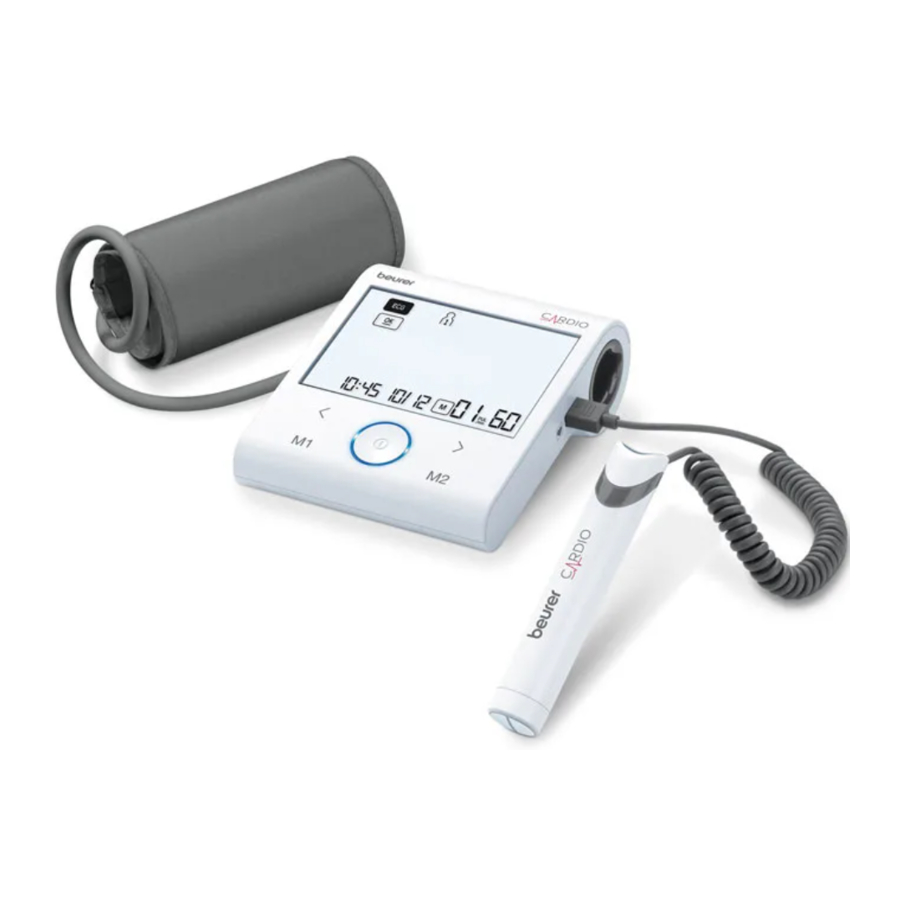

1x blood pressure monitor with ECG function
1x ECG stick
1x upper arm cuff (22-42 cm)
1x USB cable
4x 1.5V AA batteries (LR6)
1x storage pouch
1x instructions for use
1x quick start guide
1x annex for attending doctor
The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:
Warning notice indicating a risk of injury or damage to health | Dispose of packaging in an environmentally friendly manner | ||
Safety note indicating possible damage to the device/accessory | Manufacturer | ||
Product information Note on important information | Storage/Transport | Permissible storage and transport temperature and humidity | |
Observe the instructions Read the instructions before starting work and/or operating devices or machines | Operating | Permissible operating temperature and humidity | |
Isolation of applied parts, type BF Galvanically isolated application part (F stands for "floating"); meets the requirements for leakage currents for type BF | IP21 | Protected against solid foreign objects 12.5 mm in diameter and larger, and against vertically falling drops of water | |
Application part type CF | Serial number | ||
Direct current The device is suitable for use with direct current only | CE labelling This product satisfies the requirements of the applicable European and national directives. | ||
Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE | Do not dispose of batteries containing hazardous substances with household waste |
The blood pressure monitor with ECG function is used to carry out non-invasive measurement and of the arterial blood pressure values on the upper arm and to calculate the heart rhythm.
The device provides information about the average pulse as well as changes in the heart rhythm. Using a Bluetooth® connection, the recorded electrocardiogram (ECG) can be read out on a smartphone and printed out for further examination by a doctor.
It is designed for self-measurement by adults in the home environment.
When taking the ECG measurement, the device provides information about the average pulse and any changes in the heart rhythm. The blood pressure measurement is suitable for adult users whose upper arm circumference is within the range printed on the cuff. The ECG measurement is suitable for all adult users who can independently take a recording based on lead one, two or three (see chapter on using the ECG).
The user can record their blood pressure and pulse values quickly and easily using the device. The ECG stick is used to calculate the heart rhythm. The device provides information about your average pulse value as well as any divergence from a normal ECG.
The recorded values of blood pressure measurement are classified according to internationally applicable guidelines and evaluated graphically. Furthermore, the device can detect any irregular heart beats that occur during measurement and inform the user via a symbol in the display. The device saves the recorded measurements and can also output average values of previous measurements. This blood pressure monitor also has a haemodynamic stability display, which is referred to as a resting indicator throughout these instructions for use. This shows whether you, and consequently your circulatory system, are sufficiently at rest when the blood pressure measurement is being taken, and whether the measured blood pressure thus corresponds to your blood pressure when at rest. Read more about this under "Resting indicator" in the section on using the device. The recorded data can provide healthcare service providers with support during the diagnosis and treatment of blood pressure problems, and therefore plays a part in the long-term monitoring of the users health.
In the event of hypertension or hypotension, the user can independently monitor their blood pressure and pulse values as well as arrhythmia at home. However, the user does not need to be suffering from hypertension or arrhythmia in order to use the device.
General warnings
General precautions
Measures for handling batteries
Notes on electromagnetic compatibility
Display
If the battery replacement symbol flashes, you can no longer perform any measurements and must replace all batteries. Once the batteries have been removed from the device, the date and time must be set again. Any saved measured values are retained.
It is essential that you set the date and time. Otherwise, you will not be able to save your measured values correctly with a date and time and access them again later.
In this menu you can adjust the following settings in succession:
Hour format
Press and hold the START/STOP button on the device when switched off for approx. 5 seconds.
Time / Date
You can go to the previous settings by pressing M1.
Alarm
You can set 2 different alarm times to remind yourself to take the measurement. To set the alarm, proceed as follows:
Bluetooth®
You can either turn on or turn off Bluetooth®. To make the settings, proceed as follows:
Bluetooth® transfers will reduce the battery life.
ECG
You can choose between four different ECG measurement times (30 seconds, 60 seconds, 90 seconds and 120 seconds). To set the ECG measurement time, proceed as follows:
Ref. no | Designation | Arm circumferences |
164.279* | Universal cuff | 22-42 cm |
*Included in standard delivery
Place the cuff onto the bare upper arm. The circulation of the arm must not be hindered by tight clothing or similar.
The cuff must be placed on the upper arm so that the bottom edge is positioned 2-3 cm above the elbow and over the artery. The line should point to the centre of the palm here.
Guide the end of the cuff that is sticking out through the metal ring, fold it back over the arm and close the cuff using the hook-and-loop fastener. The cuff should be fastened tightly, but not too tightly, so that two fingers can still fit under the closed cuff.
Now insert the cuff line into the connection for the cuff connector.
The cuff is suitable for you if the index mark ( ) is within the OK range after fitting the cuff.
If the measurement is performed on the right upper arm, the line should be located on the inside of your elbow. Ensure that your arm is not pressing on the line.
The device has two user memories. Each user memory can store up to 60* measured values of the two categories blood pressure and ECG. Once all memory spaces in a user memory have been used, the oldest measured values are replaced by the most recent.
* With 30-second measurement. Deviation possible in the event of a longer measurement duration.
Wait for at least 1 minute before taking another measurement.
General information about blood pressure
Cardiac arrhythmia
This device can identify potential disruptions of the heart rhythm when measuring and if necessary, indicates this after the measurement with the symbol . This can be an indicator for arrhythmia. Arrhythmia is an illness in which the heart rhythm is abnormal because of flaws in the bioelectrical system that regulates the heartbeat. The symptoms (skipped or premature heart beats, pulse being slow or too fast) can be caused by factors such as heart disease, age, physical make-up, excess stimulants, stress or lack of sleep. Arrhythmia can only be determined through an examination by your doctor. If the symbol is shown on the display after the measurement has been taken, repeat the measurement. Please ensure that you rest for 5 minutes beforehand and do not speak or move during the measurement. If the symbol appears frequently, please consult your doctor. Selfdiagnosis and treatment based on the measurements can be dangerous. Always follow your GP's instructions.
Risk indicator
The measurements can be classified and evaluated in accordance with the following table.
However, these standard values serve only as a general guideline, as the individual blood pressure varies in different people and different age groups etc.
It is important to consult your doctor regularly for advice. Your doctor will tell you your individual values for normal blood pressure as well as the value above which your blood pressure is classified as dangerous. The bar chart on the display and the scale on the device show which category the recorded blood pressure values fall into.
If the values of systole and diastole fall into two different categories (e.g. systole in the high normal category and diastole in the normal category), the graphical classification on the device always shows the higher category; for the example given this would be high normal.
Blood pressure value category | Systole (in mmHg) | Diastole (in mmHg) | Action |
Level 3: severe hypertension | ≥ 180 | ≥ 110 | Seek medical attention |
Level 2: moderate hypertension | 160 – 179 | 100 – 109 | Seek medical attention |
Level 1: mild hypertension | 140 – 159 | 90 – 99 | Regular monitoring by doctor |
High normal | 130 – 139 | 85 – 89 | Regular monitoring by doctor |
Normal | 120 – 129 | 80 – 84 | Self-monitoring |
Optimal | < 120 | < 80 | Self-monitoring |
This device can identify atrial fibrillation when measuring the blood pressure and if necessary, indicates this after the measurement with the symbol AFIB . If you have atrial fibrillation, the displayed blood pressure value may not be correct. Atrial fibrillation is defined by an irregular and oftenrapid heart rate increasing the risk of strokes, heart failure and other heart-related complications. Atrial fibrillation can only be determined through an examination by your doctor. If the symbol AFIB is shown on the display after the measurement has been taken, repeat the measurement. Please ensure that you rest for 5 minutes beforehand and do not speak or move during the measurement. If the symbol AFIB appears frequently, please consult your doctor. Selfdiagnosis and treatment based on the measurements can be dangerous. Always follow your GPs instructions.
The most frequent error made when measuring blood pressure is taking the measurement when not at rest (haemodynamic stability), which means that both the systolic and the diastolic blood pressures are incorrect in this case. While measuring the blood pressure, the device automatically determines whether you are at rest or not. If there is no indication that the circulatory system is not sufficiently at rest, the symbol (haemodynamic stability) appears in the display and the measurement can be recorded as a reliable blood pressure at rest value.
The systolic and diastolic pressure measurements have been recorded when the circulatory system is sufficiently at rest and are a very reliable indicator of resting blood pressure.
However, if there is an indication that the circulatory system is not sufficiently at rest (haemodynamic instability), the symbol appears in the display. In this case, the measurement should be repeated after a period of physical and mental rest. The blood pressure measurement must be taken when the patient is physically and mentally rested, as it will be the basis for diagnosing the blood pressure level and therefore regulating the patient's medical treatment.
It is very probable that the systolic and diastolic blood pressures have been measured whilst the patient was not at rest and the measurements therefore deviate from the blood pressure at rest. Repeat the measurement after a minimum period of 5 minutes' rest and relaxation. Go to a sufficiently quiet and comfortable spot and remain there calmly; close your eyes, breathe deeply and evenly and try to relax. If the next measurement also shows insufficient stability, you can repeat the measurement after another resting period. If the measurements continue to show some instability, identify these blood pressure measurements as having been taken when the circulatory system had not been sufficiently rested. In this case, nervousness or inner anxiety may be the cause and this cannot be cured by brief periods of rest. Existing cardiac arrhythmias may also prevent a stable blood pressure measurement. A lack of resting blood pressure can have various causes, such as physical or mental strain or distraction, speaking or experiencing cardiac arrhythmias during the blood pressure measurement. In an overwhelming number of cases, the HSD diagnosis will give a very good guide as to whether the circulatory system is rested when taking the measurement. Certain patients suffering from cardiac arrhythmia or chronic mental conditions can remain haemodynamically unstable in the long term, something which persists even after repeated periods of rest. The accuracy of the blood pressure at rest results is reduced in these users. Like any medical measurement method, the precision of the HSD diagnosis is limited and can lead to incorrect results in some cases. The blood pressure measurements taken when the circulatory system was at rest represent particularly reliable results.
User memory
The results of every successful measurement are stored together with the date and time. If there are more than 60 measurements, the oldest measurement is lost.
Average values
Individual measured values
Deleting measured values
General notes on using the ECG stick
Observe the following before beginning the ECG measurement:
There are three different methods of taking the measurement. Start with measurement method A, "right index finger–chest". If this method does not deliver measurements, or delivers only unstable measurements (" " is frequently displayed), switch to method B "left index finger–chest" and, if necessary, to method C "left hand–right hand".
The most suitable method/procedure depends on the heart configuration (shape of the heart) of each individual user. If it is not possible to take stable measurements using a given measurement method, this could have a harmless cause such as the shape of the heart. However, the cause may also be an illness or disease.
Measurement method C offers maximum comfort, but offers a much lower measurement stability than methods A or B.
Measurement method A | "right index finger-chest" (approximately corresponds to "lead 2") |
Place your right index finger on the upper electrode on the device and hold the device vertically in your hand. | |
You can determine the correct position for placing the lower electrode of the device against your chest using the following methods:
| |
Lightly press the electrode against your chest.
| |
Measurement method B | "left index finger-chest" (approximately corresponds to "lead 3") |
Place your left index finger on the upper electrode on the device and hold the device vertically in your hand. | |
You can determine the correct position for placing the lower electrode of the device against your chest using the following methods:
| |
Lightly press the electrode against your chest.
| |
Measurement method C | "left hand–right hand" (approximately corresponds to "lead 1") |
Place your right index finger on the upper electrode on the device. Place a finger of your left hand on the lower electrode. | |
Do not press the device too firmly against your skin. |
Please note that there must be no skin contact between your right and left hand (measurement method C) or hand and chest (measurement methods A/B). Otherwise, the measurement cannot be taken correctly. Stay still during the measurement, do not speak and hold the device still. Movements of any kind will falsify the measurements.
Maintain constant pressure during the measurement. Do not press the electrodes too firmly against the skin as this can cause the muscles to tense and give rise to inaccurate measured values.
NEVER take an ECG measurement if:
The right index finger is not in sufficient contact with the upper electrode. | The measurement is being taken through clothing. | ||
The ECG stick is upside down. | The left index finger is not in sufficient contact with the upper electrode. |
Once you have taken the measurement, the following results may appear on the LCD display.
ECG recording is OK. | Indicates atrial fibrillation (also read Atrial fibrillation at Evaluating blood pressure measurement results). | ||
Indicates a decreased heart rate (bradycardia) of less than 60 [bpm]. | Indicates an increased heart rate (tachycardia) of greater than 100 [bpm]. |
A flashing heart rate on the display indicates unstable or weak ECG signals. In this case, please repeat the measurement.
Background information and medical statistics for your doctor can be found in the "Annex for attending doctor" document included with your device.
Displaying
The device has two user memories. Each user memory can store up to 60* measurements. Once all memory spaces in a user memory have been used, the oldest measurements are replaced by the most recent.
You can access stored measurements on the device at any time. Proceed as follows:
To access the measured values in the second user memory, press M2.
• To navigate between the individual measurements, press the function buttons .
Deleting
It is also possible to transfer the measured values saved on the device to your smartphone using Bluetooth® low energy technology. You will need the "beurer HealthManager Pro" / "beurer HealthManager" app for this. The apps are available free of charge on the Apple App Store and from Google Play.
When connecting for the first time, a randomly generated six-digit PIN code is displayed on the device, and at the same time an input field appears on the smartphone in which you must enter this six-digit PIN code. After successfully entering the code, the device will be connected to your smartphone. If your smartphone has a protective cover, remove this to ensure that there is no interference during the transfer.
* With 30-second measurement. Deviation possible in the event of a longer measurement duration.
System requirements for the "beurer HealthManager Pro" / "beurer HealthManager" app
List of compatible devices:
The device also allows you to transfer your measured values via USB. To do this you require the included USB cable and the, USB-Uploader for the free "beurer HealthManager Pro" web application.
System requirements for the USB-Uploader
Proceed as follows to transfer values:
Data is transferred if Bluetooth® has been activated in the settings menu. The Bluetooth® symbol appears on the display.
Step 1: BM 96
Activate Bluetooth ® on your device (see Initial use chapter).
Step 2: "beurer HealthManager Pro" / "beurer HealthManager" app
Add the BM 96 in the "beurer HealthManager Pro" / "beurer HealthManager" app.
Step 3: BM 96
Take a measurement.
Step 4: BM 96
Go to memory mode. Bluetooth ® data transfer starts automatically.
The "beurer HealthManager Pro" / "beurer HealthManager" app must be active to allow data transfers.
Accessories and replacement parts are available from the corresponding service address (according to the service address list). Please state the corresponding order number.
Designation | Item number and/or order number |
Universal cuff (22-42 cm) | 164.279 |
USB cable | 164.322 |
ECG Stick | 164.317 |
Problem / Error Message | Possible cause | Solution |
Error Code | It was not possible to correctly record the pulse. | Please repeat the measurement. Make sure that the cuff tube is properly inserted and that you do not move or talk. Re-insert the batteries if necessary, or else replace them. |
Error Code | No measurement could be taken. | |
Error Code | The cuff is fastened too tightly or loosely. | |
Error Code | Errors occur during the measurement. | Please repeat the measurement. Make sure that the cuff tube is properly inserted and that you do not move or talk. Re-insert the batteries if necessary, or else replace them. |
Error Code | The pump pressure is higher than 300 mmHg. | |
Error Code | There is a system error. | If this error message appears, please contact Customer Services |
Error Code |
| Repeat the measurement as per the instructions in these Instructions for use. |
Error Code |
| Repeat the measurement as per the instructions in these Instructions for use. |
The batteries are almost empty. | Replace the batteries. | |
The device will not switch on. | The batteries are flat. | Replace the batteries. |
The batteries have been inserted incorrectly. | Re-insert the batteries, observing the correct polarity (-/+). | |
The cuff does not inflate. | The cuff line is not correctly inserted into the device. | Ensure that the cuff line is correctly inserted into the device. |
The cuff is ruptured. | Replace the cuff. Contact Customer Services. | |
The blood pressure measurements are very high/low. | The cuff was not attached correctly. | Re-attach the cuff. |
You moved or talked during the measurement. | Do not move or talk during the measurement. | |
The measurement was obstructed by clothing. | Ensure that clothing cannot obstruct the arm cuff during the measurement. | |
Stored measured values can no longer be retrieved from the memory. | Old measured values have been overwritten by more recent values as the memory is full. | Download the stored measured values to your computer every so often. |
The ECG measurement does not start even though there is contact with the skin. | Insufficient contact pressure. | Ensure that the lower electrode is pressed firmly against the skin. |
Bluetooth® connection failed. | Connection problems between the smartphone/tablet and the app. | Switch off the main unit, close the app, and deactivate and reactivate Bluetooth® on your smartphone/tablet. Try to re-establish the connection. |
Unknown error messages. | Remove batteries, reinsert batteries. Should the problem persist, contact Customer Services. |
Model No. BM 96
Measurement method | Oscillometric, non-invasive blood pressure measurement on the upper arm. Single-channel ECG in freely selectable front positions / ECG signal ground (earth) referenced. |
Measurement range | Cuff pressure 0 – 300 mmHg, systolic 60 – 280 mmHg, diastolic 30 – 200 mmHg, Pulse 30 –199 beats/minute |
ECG range/sample rate | 0.05 to 40 Hz/500 Hz |
Display accuracy | Systolic ± 3 mmHg, Diastolic ± 3 mmHg, Pulse ± 5% of the value shown |
Measurement inaccuracy | Max. permissible standard deviation according to clinical testing: Systolic 8 mmHg/diastolic 8 mmHg |
Memory | 2x 60 memory spaces (With 30-second measurement. Deviation possible in the event of a longer measurement duration.) |
Dimensions | Main unit: L 120 mm x W 144 mm x H 53 mm ECG stick: D 22 mm x H 120 mm |
Weight | Main unit: Approximately 490 g (without batteries, with cuff) ECG stick: Approximately 40 g |
Cuff size | 22 to 42 cm |
Permissible operating conditions | +10°C to +40°C, 10 to 85% relative humidity (non-condensing) |
Permissible storage and transport -20°C to +55°C, 10 to 90% relative humidity, conditions 800 – 1050 hPa ambient pressure
Power supply | 4x 1.5 V AA batteries |
Battery life | For approx. 300 measurements, depending on levels of blood pressure, pump pressure and ECG measurement length |
Classification | Internal supply, IP21, no AP or APG, continuous operation Blood pressure: Application part, type BF ECG stick: Application part type CF |
Data transfer via Bluetooth® wireless technology | The product uses Bluetooth® low energy technology, frequency band 2.400 – 2.483 GHz, maximum transmission power radiated in the frequency band < 20 dBm, compatible with Bluetooth® ≥ 4.0 smart phones / tablets |
The serial number is located on the device or in the battery compartment.
Technical information is subject to change without notification to allow for updates.
Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as "Beurer") provides a warranty for this product.
The worldwide warranty period is 5 years, commencing from the purchase of the new, unused product from the seller.
If the buyer wishes to make a warranty claim, they should approach their local retailer.
