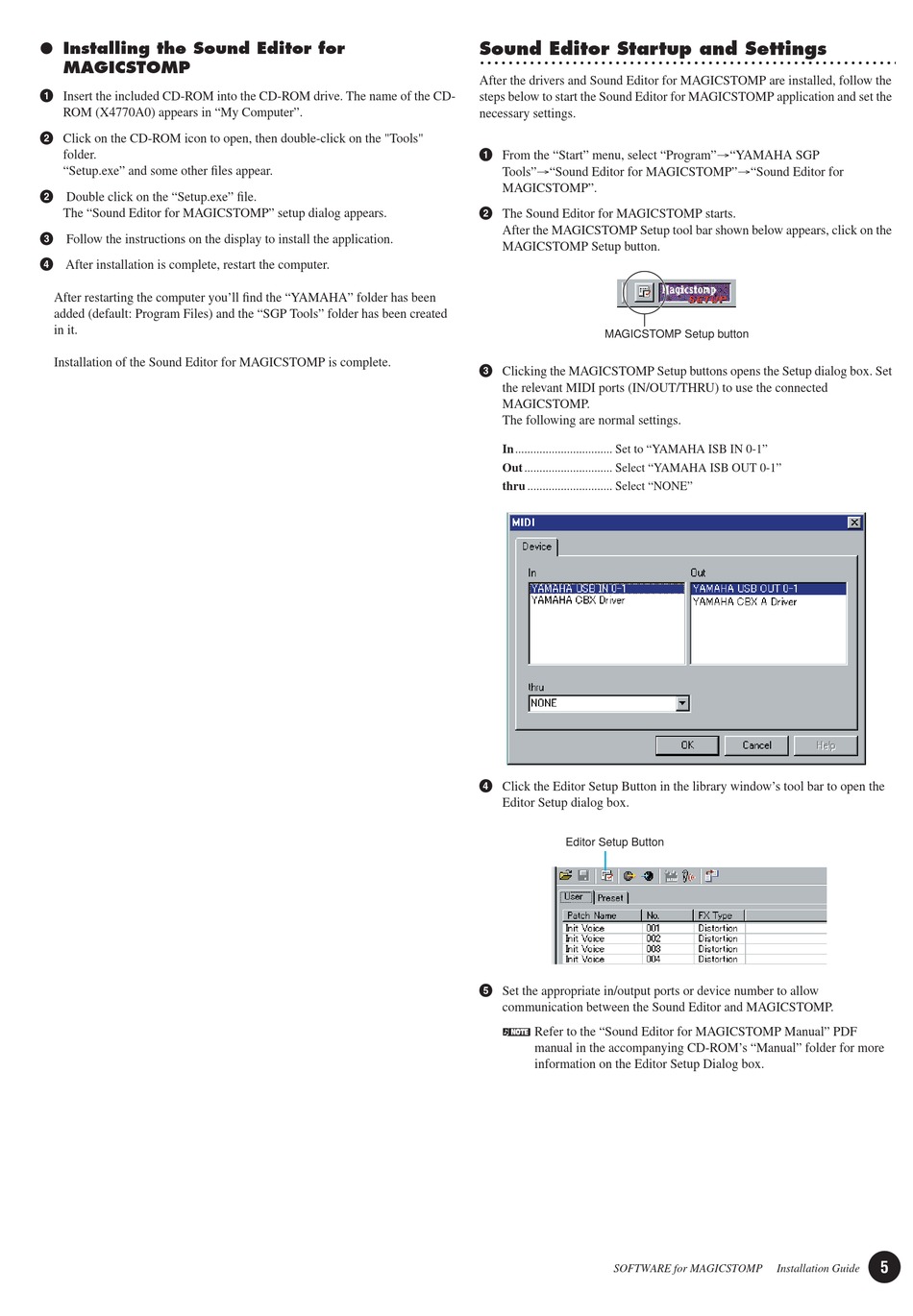

Installing the Sound Editor for
MAGICSTOMP
1 Insert the included CD-ROM into the CD-ROM drive. The name of the CD-
ROM (X4770A0) appears in "My Computer".
2 Click on the CD-ROM icon to open, then double-click on the "Tools"
folder.
"Setup.exe" and some other files appear.
2 Double click on the "Setup.exe" file.
The "Sound Editor for MAGICSTOMP" setup dialog appears.
3 Follow the instructions on the display to install the application.
4 After installation is complete, restart the computer.
After restarting the computer you'll find the "YAMAHA" folder has been
added (default: Program Files) and the "SGP Tools" folder has been created
in it.
Installation of the Sound Editor for MAGICSTOMP is complete.
Sound Editor Startup and Settings
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
After the drivers and Sound Editor for MAGICSTOMP are installed, follow the
steps below to start the Sound Editor for MAGICSTOMP application and set the
necessary settings.
1 From the "Start" menu, select "Program"→"YAMAHA SGP
Tools"→"Sound Editor for MAGICSTOMP"→"Sound Editor for
MAGICSTOMP".
2 The Sound Editor for MAGICSTOMP starts.
After the MAGICSTOMP Setup tool bar shown below appears, click on the
MAGICSTOMP Setup button.
MAGICSTOMP Setup button
3 Clicking the MAGICSTOMP Setup buttons opens the Setup dialog box. Set
the relevant MIDI ports (IN/OUT/THRU) to use the connected
MAGICSTOMP.
The following are normal settings.
In................................ Set to "YAMAHA ISB IN 0-1"
Out ............................. Select "YAMAHA ISB OUT 0-1"
thru ............................ Select "NONE"
4 Click the Editor Setup Button in the library window's tool bar to open the
Editor Setup dialog box.
Editor Setup Button
5 Set the appropriate in/output ports or device number to allow
communication between the Sound Editor and MAGICSTOMP.
n
Refer to the "Sound Editor for MAGICSTOMP Manual" PDF
manual in the accompanying CD-ROM's "Manual" folder for more
information on the Editor Setup Dialog box.
SOFTWARE for MAGICSTOMP
5
Installation Guide
