StoreYourBoard FIREARM RACK Installation Manual page 3

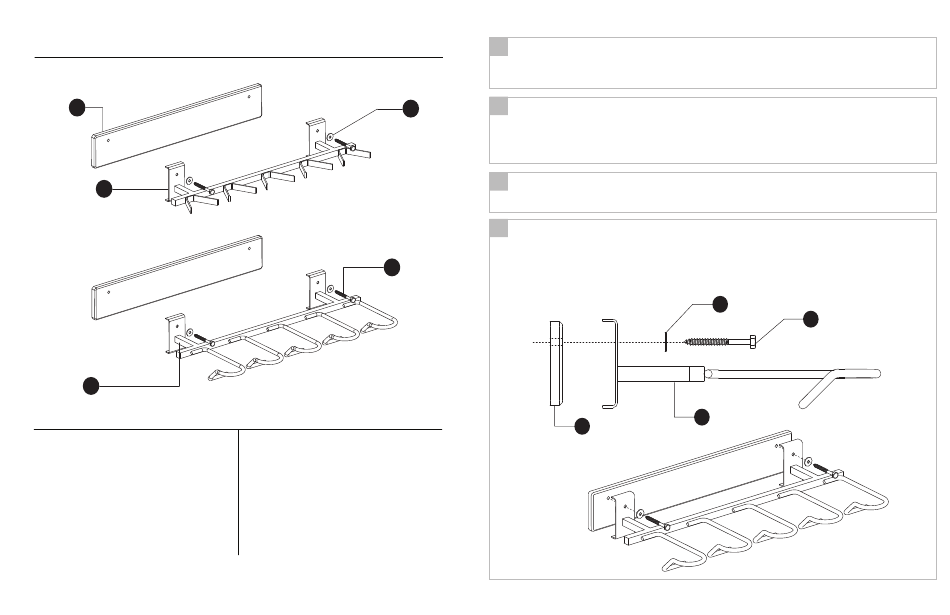

INSTALLATION
Wood Backplate
Qty: 2
A
B
Upper Subassembly
Qty: 1
Buttstock Subassembly
Qty: 1
C
RECOMMENDED TOOLS:
Drill/Driver
Drill bits
12mm Socket/Driver
Level
Tape measure
Pencil
Stud finder
NOTE: Always ensure firearms are unloaded and follow all firearm safety guidelines during installation and use.
E
Washers
1/4"
Qty: 4
Wall Screws
1/4" x 2.5"
Qty: 4
D
WEIGHT LIMITS:
20 lbs. per slot
NOTE: Firearm Rack must be mounted to a wall stud to achieve the advertised weight limit
1
Mark Stud Locations
• Use a stud finder to locate two adjacent wall studs where you want to mount the rack.
• Mark the stud locations with a pencil for reference.
2
Position and Level the Bottom Wood Backplate
• Hold the Bottom Wood Backplate (A) against the wall, aligning the mounting holes with
the marked stud locations.
• Use a level to ensure the backplate sits flat to the ground and mark the locations of the
mounting holes along the studs with a pencil.
3
Drill Pilot Holes
• Use a 3/16 inch (4.7mm) drill bit to carefully drill pilot holes into the stud at the marked
locations.
4
Mount the Buttstock Subassembly
• Line up the holes in the Buttstock Subassembly (C) with the Wood Backplate (A).
• Place a Washer (E) over each Wall Screw (D) and insert them into the pilot holes drilled in
Step 3.
• Securely tighten the Wall Screws (D), using a level to ensure the rack sits level to the floor.
A
E
D
C
