PerfecTron SCH3X2-D7 Manual

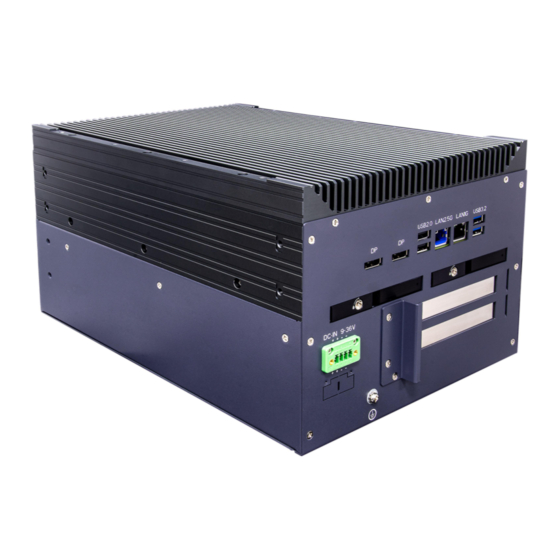

Micro-grid intel 13/12th cpu fanless computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.0
SCH3X2-D7
SCH3X2-RD7
Micro-Grid Intel 13/12th CPU Fanless Computer
www.perfectron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCH3X2-D7 and is the answer not in the manual?

Questions and answers

Related Manuals for PerfecTron SCH3X2-D7

Summary of Contents for PerfecTron SCH3X2-D7

  • Page 1 Version 1.0 SCH3X2-D7 SCH3X2-RD7 Micro-Grid Intel 13/12th CPU Fanless Computer www.perfectron.com...

  • Page 2: Safety Information

    All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior written permission from the publisher.  All trademarks are the properties of the respective owners.  All product specifications are subject to change without prior notice. www.perfectron.com...

  • Page 3: Revision History

    V1.0 2024/01/15 First release Packing list Item Description Q’ty SCH3X2-D7/RD7 Micro-Grid Intel 13/12th CPU Fanless Computer Driver CD SSD Tray Key Rack Mount Bracket & Screw Ordering information Model Number Description Micro-Gird Fanless Computer with Intel 13th /12th Gen Intel® Raptor Lake-S/Alder Lake-S LGA1700 Socket Processor / Core i9/i7/i5/i3 Processor TDP 65W, up to 64G SO-DIMM DDR4 3200MHz, 2 ×...
  • Page 4 Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment. In order to meet the RoHS compliant directives, Perfectron has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard Perfectron...

  • Page 5: Table Of Contents

    Ordering information ........................... 2 Chapter 1 : Product Introduction ....................... 6 1.1 Specifications ..........................6 1.2 SCH3X2-D7 Front Panel I/O Placement ..................7 1.3 SCH3X2-D7 Rear Panel I/O Placement ..................8 1.4 SCH3X2-RD7 Front Panel I/O Placement .................. 8 1.5 SCH3X2-RD7 Rear Panel I/O Placement ................... 9 Chapter 2 : Rear I/O Port ........................
  • Page 6 4.6 Boot Page ..........................38 4.6.1 (List Boot Device Type) Drive BBS Priorities ............... 39 4.7 Save & Exit Page ........................40 4.8 Event Logs ..........................41 4.8.1 Change Smbios Event Log Setting ..................42 4.8.2 ViewSmbios Event Log ......................43 www.perfectron.com...

  • Page 7: Chapter 1 : Product Introduction

    2 x RJ45GbE LAN(1 x GbE / 1 x 2.5GbE) USB3.2 2 x USB 3.2 USB2.0 2 x USB2.0 DisplayPort 2 x DP Storage 2 x Swap SSD Tray(1 x 2.5” 3D TLC 128GB) Power Power Input DC-IN 9~36V( With Redundant) OS support list www.perfectron.com...

  • Page 8: Sch3X2-D7 Front Panel I/O Placement

    Operating Temp. -20°C to 60°C Storage Temp. -40°C to 85°C Relative Humidity 5% to 95%, non-condensing System Design Fanless Mechanical and Environmental IEC-61850-3 / IEEE-1613 / UL 62368-1 / EN60945 / CE / FCC 1.2 SCH3X2-D7 Front Panel I/O Placement www.perfectron.com...

  • Page 9: Sch3X2-D7 Rear Panel I/O Placement

    1.3 SCH3X2-D7 Rear Panel I/O Placement 1.4 SCH3X2-RD7 Front Panel I/O Placement www.perfectron.com...

  • Page 10: Sch3X2-Rd7 Rear Panel I/O Placement

    1.5 SCH3X2-RD7 Rear Panel I/O Placement 1.6 SCH3X2-D7 Mechanical Dimensions Single System : www.perfectron.com...
  • Page 11 Dual System : 1.7 SCH3X2-RD7 Mechanical Dimensions Single System : www.perfectron.com...
  • Page 12 Dual System : www.perfectron.com...

  • Page 13: Chapter 2 : Rear I/O Port

    Chapter 2 : Rear I/O Port 2.1 LAN port LED Indications 2.5G LAN : 1G LAN : www.perfectron.com...

  • Page 14: Chapter 3: System Setup

    Put 2.5”SSD on the tray and make sure SSD is fixed and push the tray back. • Use Tri-angle security key to lock the tray door. 3.2 PCIe Card installation SCH3X2-D7/RD7 series supports two PCIe Gen3 x 8 slot : • Remove the back cover screws www.perfectron.com...
  • Page 15 • Remove the BKT-1 screw of the cover • Remove the BKT-2 screws of the cover www.perfectron.com...
  • Page 16 • 2*PCIex8 Slot www.perfectron.com...
  • Page 17 • Install PCIe Card • Lock BKT-2 screw www.perfectron.com...
  • Page 18 • Lock BKT-1 screw • Lock back cover screws www.perfectron.com...
  • Page 19 www.perfectron.com...

  • Page 20: Chapter 4: Ami Bios Utility

    The <F10> key saves any changes made and exits the BIOS setup utility. The <Esc> key discards any changes made and exits the BIOS setup utility. The <Enter> key displays a sub-screen or changes a selected or Enter highlighted option in each menu. www.perfectron.com...

  • Page 21: Main Page

    Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 1998-9999 Months: 1-12 Days: dependent on month. Range of Years may vary. System Time Set the Time. Use Tab to switch between Time elements. hh: 0-23 www.perfectron.com...

  • Page 22: Advance Page

    VMD setup menu VMD Configuration setting Trusted Computing Trusted Computing Settings NCT6126D Super IO Configuration System Super IO Chip Parameters. HW Monitor Monitor hardware status S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm. Network Stack Configuration www.perfectron.com...

  • Page 23: Onboard Device

    48M / 52M / 56M /60M / 64M DVMT Total Gfx Mem Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device. 128M / 256M / MAX Wake on LAN Enable Enable/Disable integrated LAN to wake the system. Disabled / www.perfectron.com...

  • Page 24: Cpu Configuration

    Enabled: HDA will be unconditionally enabled. Disabled / Enabled Chassis Intrusion Configure Chassis Intrusion. Disabled / Enabled / Reset 4.4.2 CPU Configuration Displays CPU Signature Brand String Displays the CPU brand string L3 Cache Size SMX/TXT SMX/TXT Supported or Not www.perfectron.com...

  • Page 25: Vmd Setup Menu

    4.4.3 VMD setup menu Enable VMD controller Enable/Disable to VMD controller. Disabled / Enabled 4.4.4 Trusted Computing www.perfectron.com...

  • Page 26: Nct6126D Super Io Configuration

    Computer will reboot during restart in order to change State of Security Device. None / TPM Clear 4.4.5 NCT6126D Super IO Configuration Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA) Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB) www.perfectron.com...

  • Page 27: Serial Port 1 Configuration

    / IO=228h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Mode Configuration Configure serial port as RS232/RS422/RS485. 1T/1R RS422 / 3T/5R RS232 / 1T/1R RS485 TX ENABLE Low Active / 1T/1R RS422 with termination resistor / 1T/1R RS485 with termination resistor TX ENABLE Low Active / Disabled www.perfectron.com...

  • Page 28: Serial Port 2 Configuration

    / IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=220h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=228h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; www.perfectron.com...

  • Page 29: Hardware Monitor

    Disabled / Enabled] System Fan Enable (Suppressed if Hardware Monitor Alert is Disabled) If Enabled, POST monitors system fan status. If this value is out of range, BIOS display warning message and turn on beep sound. Disabled / Enabled www.perfectron.com...

  • Page 30: S5 Rtc Wake Settings

    Wake up second(Show when Wake system from S5 set to Fixed Time) Select 0-59. For example enter 3 for 3am and 15 for 3pm. Wake system from S5 (when set to [Dynamic time]) Wake up minute increase Select 1-5. www.perfectron.com...

  • Page 31: Network Stack Configuration

    Enable/Disable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot option will not be created. Disabled / Enabled Ipv6 PXE Support (Available when Network stack Enabled) Enable/Disable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot option will not be created. Disabled / Enabled www.perfectron.com...

  • Page 32: Nvme Configuration

    4.4.11 NVMe Configuration (Device) Here shows the Device Name you installed. A sample screenshot shows below.  www.perfectron.com...

  • Page 33: Security Page

    Press Enter when selected to go into the associated Sub-Menu. Secure Boot Set User Password. Press Enter when selected to go into the associated Sub-Menu. BIOS Update BIOS Update support Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...

  • Page 34: Hdd Security Configuation

    4.5.1 HDD Security configuation (Device) Read only www.perfectron.com...

  • Page 35: Secure Boot

    Restore Factory Keys Force System to User Mode. Install factory default Secure Boot key databases. Reset to Setup Mode Delete all Secure Boot key databases from NVRAM. Key Management Enables expert users to modify Secure Boot Policy variables without full authentication www.perfectron.com...

  • Page 36: Key Management

    Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Key Exchange Keys Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST www.perfectron.com...
  • Page 37 Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed OsRecovery Signatures Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX www.perfectron.com...

  • Page 38: Bios Update

    Enroll Efi Image Allow the image to run in Secure Boot mode. Enroll SHA256 Hash certificate of a PE image into Authorized Signature Database (db) 4.5.4 BIOS Update Path for ROM Image Enter the path to the BIOS update option. www.perfectron.com...

  • Page 39: Boot Page

    Specifies the Boot Device Priority sequence from available Hard Disk Drives. (UEFI) USB KEY Drive BBS Priorities Specifies the Boot Device Priority sequence from available Hard Disk Drives. (UEFI) USB Hard Disk Drive BBS Priorities Specifies the Boot Device Priority sequence from available Hard Disk Drives. www.perfectron.com...

  • Page 40: List Boot Device Type) Drive Bbs Priorities

    4.6.1 (List Boot Device Type) Drive BBS Priorities Boot Option #1 Sets the system boot order. Boot Device Name #1 of this type / Disabled www.perfectron.com...

  • Page 41: Save & Exit Page

    4.7 Save & Exit Page Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Restore Defaults Restore/Load Default values for all the setup options. www.perfectron.com...

  • Page 42: Event Logs

    4.8 Event Logs Change Smbios Event Log Settings Press <Enter> to change the Smbios Event Log configuration. View Smbios Event Log Press <Enter> to change the Smbios Event Log records. www.perfectron.com...

  • Page 43: Change Smbios Event Log Setting

    Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation during reset. No / Yes, next reset / Yes, every reset Whea Log is Full Choose options for reactions to a full Smbios Event Log. Do Nothing / Erase Immediately www.perfectron.com...

  • Page 44: Viewsmbios Event Log

    4.8.2 ViewSmbios Event Log DATE / TIME / ERROR CODE / SEVERITY / COUNT Description: Log Area Reset and Count is applicable only for Multi- Events. By Events. MM/DD/YY HH:MM:SS Smbios 0x16 N/A N/A www.perfectron.com...
