What are Add-On Effects?
Add-On Effects are software packages that install additional high-quality effects programs on
digital consoles.
What is Equalizer601?
Equalizer601 is an Add-On Effects package.
This effect emulates the characteristics of analog equalizers used in 1970s. It adds drive to the sound by
reproducing distortion typical to analog circuits.
What is VCM (Virtual Circuitry Modeling)?
VCM is a technology that enables you to model element levels in analog circuits (such as resistors and capacitors).
This technology was developed by an engineering group led by Mr. Kunimoto, an engineer who developed the
first physical modeling synthesizers, VL1 and VP1. Equalizer601 utilizes VCM technology.
Special Notices
• Copying of the commercially available music sequence data and/or digital audio files is strictly prohibited except for your personal use.
• The software and this Owner's Manual are exclusive copyrights of Yamaha Corporation.
• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written
consent of the manufacturer.
• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held
responsible for the results of the use of this manual and the software.
• The screen displays as illustrated in this Owner's Manual are for instructional purposes, and may appear somewhat different from
the screens which appear on your computer.
• The company names and product names in this Owner's Manual are the trademarks or registered trademarks of their respective
companies.

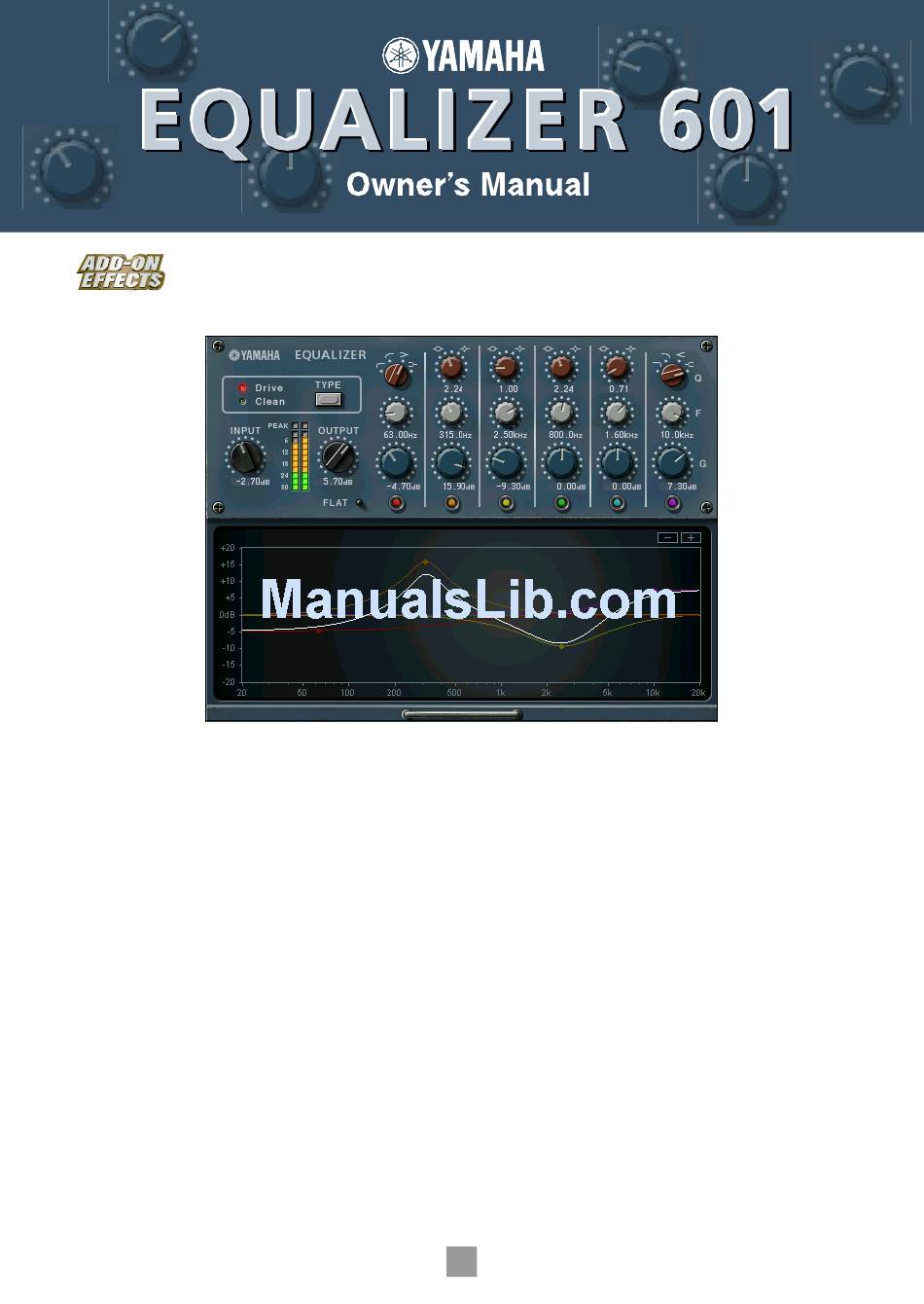

Studio Manager Equalizer601 Window
© 2003 Yamaha Corporation. All rights reserved.
1

Advertisement

   Related Manuals for Yamaha EQ-601

   Summary of Contents for Yamaha EQ-601

  • Page 1

    • Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of the manufacturer. • Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this manual and the software.

  • Page 2

    Installing Equalizer601 See the Add-On Effects Installation Guide for more information on installing Equalizer601. Installing Equalizer601 As with other effects, you can recall and edit the Equalizer601 program on the console or in Studio Manager. The basic operation is as follows: Select one of the internal effects processors.

  • Page 3

    Part Names and Functions Studio Manager Equalizer601 Window Console screen (This is a DM2000 screen.)

  • Page 4

    In the following section: Functions marked with Studio Manager Functions marked with are available on the console. Console [TYPE] button Studio Manager Enables you to select one of two equalizer types that feature different effects. The Clean equalizer provides non-distorted, clear, typical digital sound, emulating variations in frequency response in the analog circuits.

  • Page 5

    Equalizer601 is a 6-band equalizer. It consists of two shelving-type filters (LO and HI) and four peaking-type filters (MID1-4). [Q]/[TYPE] Studio Manager These parameters enable you to control the shape of the frequency response curve for each band filter. You can also set the sharpness (Q) of the frequency response curve for the MID1-4 filters. You can select the filter type for the LO band and HI band individually, choosing from four options.

  • Page 6

    ), holding down the FLAT button will turn off the corresponding band’s SW Studio Manager U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation ), and the filter type for the HI band is set © 2003 Yamaha Corporation...
