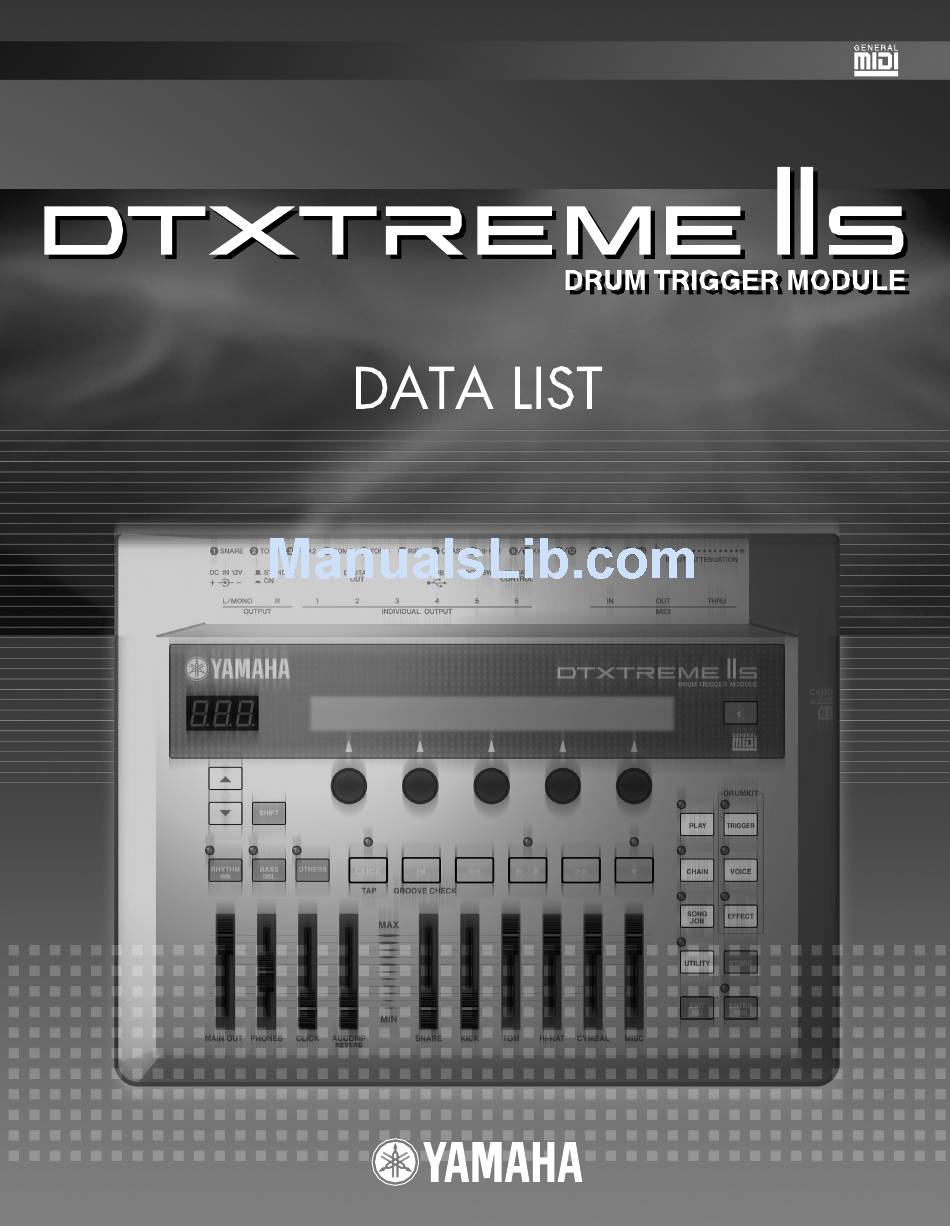

Yamaha DTXTREME IIs Data List

Yamaha DTXTREME IIs Data List

Drum trigger module
Hide thumbs Also See for DTXTREME IIs:

Advertisement

Quick Links

See also: Owner's Manual , Installation Manual

Advertisement

loading

Related Manuals for Yamaha DTXTREME IIs

Summary of Contents for Yamaha DTXTREME IIs

  • Page 2: Table Of Contents

    DATA LIST Table of Contents MIDI Data Format ...3 MIDI Data Table ...7 Drum Voice List ...14 GM Keyboard Voice List ...21 Effect Parameter List ...22 Effect Parameter Description ...25 MIDI Implementation Chart ...27...

  • Page 3: Midi Data Format

    LSB=any value: normal voice MSB=127 LSB=any value: GM drum voice *note 1 *note 1: The DTXTREME IIs only receives program numbers 1, 2, 9, 17, 25, 26, 33, 41 and 49 and selects a GM preset drum kit that corresponds to the received number.
  • Page 4 Operates as GM system ON is received. Reception only. 3.1.3 identify request $F0 $7E $0n $06 $01 $F7 n is device number. After this message is received, the DTXTREME IIs transmits identity reply. Reception only. 3.1.4 MIDI master volume $F0 $7F $7F $04 $01 $XX $mm $F7 XX is dummy (ignored).
  • Page 5 3.2.1 bulk dump - system data ID, ASCII char 'X' ID, ASCII char 'T' type, ASCII char 'S' type, ASCII char 'Y' type, ASCII char 'S' type, ASCII char '0' fixed $00 fixed $00 fixed $7F fixed $7F data data data csum check sum...
  • Page 6 (like system common data, edit buffer data or so on), this value must be $7F $7F ($3FFF). If the target data is a song, the DTXTREME IIs will not respond to $7F $7F ($3FFF). 4. System Common Messages 4.1 Song Select...

  • Page 7: Midi Data Table

    MIDI Data Table Table A: Parameter Change – Parameter List Table B: Bulk Dump Data details Table C: Effect Parameter details Table A: Parameter Change – Parameter List range format: OB24 0:-12, 1:-11, ... 12:0, 13:+1, ... 24:+12 OB30 0:-15, 1:-14, ... 15:0, 16:+1, ... 30:+15 OB32 0:-16, 1:-15, ...
  • Page 8 A.9 parameter change - Drumkit insert FX parameter ------------------------------------------------------- P1-4 range name ------------------------------------------------------- 1 if - PARAMETER 1 MSB 7bit 2 if - PARAMETER 1 LSB 7bit 3 if - PARAMETER 2 MSB 7bit 4 if - PARAMETER 2 LSB 7bit 5 if - PARAMETER 3 MSB 7bit...
  • Page 9 17 16 j i 0-2047 FILTER 17 17 j i 0-127 BOOST 17 19 j i OB$1000 PEG L1 17 20 j i 0-127 PEG R1 17 21 j i OB30 PITCH KVS 17 22 j i OB30 ATTACK KVS 17 23 j i OB30 DECAY KVS...
  • Page 10 [MAP] block ------------------------------------------------------- type NAME ------------------------------------------------------- VOICE CATEGORY VOICE INDEX NO VOLUME PITCH MSB 7bit PITCH LSB 7bit MODIFY FILTER ATTACK DECAY KEY ASSIGN MODE ALTERNATE GROUP KEY OFF/ON ENABLE OUTPUT SELECT REVERB SEND CHORUS SEND ------------------------------------------------------- [XMAP] block ------------------------------------------------------- type NAME -------------------------------------------------------...
  • Page 11 B.3 bulk dump - user voice stack data [STACKVOICE] block ------------------------------------------------------- type name ------------------------------------------------------- kbank number attenuation @0.75db shift tune @1.17cent fr 0-127, Mode 0x80 1 byte reserve velTblNo fc kvs volume boost 1 byte reserve peg L1 peg R1 pitch kvs atack kvs decay kvs...
  • Page 12 C.10 AUTO PAN ------------------------------------------------------- param range name ------------------------------------------------------- 0~127 LFO frequency 0~127 L/R depth 0~127 F/R depth PAN direction 4~40 EQ low frequency 52~76 EQ low gain 28~58 EQ high frequency 52~76 EQ high gain 14~54 EQ mid frequency 52~76 EQ mid gain 10~120 EQ mid width...
  • Page 13 C.24 CROSS DELAY ------------------------------------------------------- param range name ------------------------------------------------------- 1~3714 delay time L>R 1~3714 delay time R>L 1~127 feedback level input select 1~10 feedback high damp 1~127 dry / wet balance 4~40 EQ low frequency 52~76 EQ low gain 28~58 EQ high frequency 52~76 EQ high gain -------------------------------------------------------...

  • Page 14: Drum Voice List

    Drum Voice List AcKick G.No Name G.No Name St.DKik1 GATE2 St.DKik2 GATEbech St.Kik1b GateM St.Kik2b GM GATE St.Kik3b St.AmbBD St.BDdrk StBDbeat StBDratl GMM2 DryKick GTRoom BEECH22 Gr8Room BEECH22T HevyBsRm BECHBASS KONG1 BEECHAMB KONG2 MCA20 LoRoom1 MCA20Dry LoRoomS MC20SOFT MapleA22 MCA20amb MapleAmb MCA20Wet MPL20Amb...
  • Page 15 AcSnr2 G.No Name G.No Name 12soprno Nashvill AL&BS OldCan Amb 01 OpnRim Amb 02 OpnRimA Amb 03 OpnRimB Ambient OpnRimC Ambient1 OpnRimD AmbiRim ParadeS Ambt1rim PhlyRiM Barypic Picket Baryrim Piclodry BeatyRim PicloRim Beauty PitchUp BETA Sn Powerpic BigWdRim Pwrpcrim BigWood RIMBrass Binky RIMdry1...
  • Page 16 XtrSnr Wave1 G.No Name Mapl1370 MCAbs55 MCVint5 Beech55 Maple55 Alumin55 Brass35 Brass55 Brass65 Steel65 Bamboo FRPSnr Wave2 G.No Name warm crisp cool short punchy silky bright VOX1 VOX2 VOX3 rool trash AcTom1 G.No Name G.No Name St.TomH XTMMCA16 St.TomM XTMCV10 St.TomL XTMCV12 St.TomF...
  • Page 17 AcTom3 G.No Name Room3 Hi Room3Mid Room3 Lo Room3Flr RoomP H RoomP M RoomP L RoomP F RoomQH RoomQM RoomQL RoomQF Room 6 Room 5 Room 4 Room 3 Room 2 Room 1 Rock 6 Rock 5 Rock 4 Rock 3 Rock 2 Rock 1 SAmbTmH...
  • Page 18 HiHat G.No Name G.No Name AmbHHCls H OpnLA1 AmbHHClE H OpnLA2 AmbHHOpn PDL XG1 AmbHHFtC PDL XG2 St.HHCls PDLAC13 St.HHOpn H Pdl13 St.HHFt H PdlDW St.HHSpl H PdlLit DryHHCls H PdlMu DryHHClE H PdlNB DryHHOpn HHFTpdl1 DryFtCls Hpdlcls1 Close01 Hpdlcls3 Close02 FTsplRK Close03...
  • Page 19 Efect1 G.No Name G.No Name 6AMBreth Ring Ambush RubbrOil AMRhythm Scream Applau Seasho Bird Shazam! Bird-P SlikRoad Bottle SloSprkl BreakOut Stream BrsHit TablaX BuzzyWak TakeOff C Crash TekGt CarPss Thundr CBRadi TimbTimp ComVc TineDrum CoolSA Tire Creature TungDrum Crush TV vo CStart TymKeepr Didger...
  • Page 20 Loop G.No Name G.No Name AlienSp Revloon BigBeat Rolly Blaznoz ScrewLP Cybryawn SlicLoop C'Y'DNCE SNAPLOOP Cymbloop Spirals Danse?? SpyShift DBloop StreamLP DBpanefx SwingnL DBrevbt TranZyLP DBtrbeat TriLoop DIGERDO UK2x2LP DigiTime UptownL DncFoot VFXLoop DpAfair VFX2Loop DruggdLp WE LOOP Dubby E NZE ET Loop EvlLoop FactryLP...

  • Page 21: Gm Keyboard Voice List

    GM Keyboard Voice List Category Display Layer Piano GrandPno BritePno E.Grand HnkyTonk E.Piano1 E.Piano2 Harpsi. Clavi. Chromatic Celesta Percussion Glocken MusicBox Vibes Marimba Xylophon TubulBel Dulcimer Organ DrawOrgn PercOrgn RockOrgn ChrchOrg ReedOrgn Acordion Harmnica TangoAcd Guitar NylonGtr SteelGtr Jazz Gtr CleanGtr Mute.Gtr Ovrdrive...

  • Page 22: Effect Parameter List

    Cho→Rev 0 – 127 ChoRetrn 0 – 127 Insertion Effects Parameters marked with a ● in the "Control" column can be control using the DTXTREME IIs' MIDI EG function and external MIDI controllers. THRU Parameter Value RevSend 0 – 127 ChoSend 0 –...
  • Page 23 CrossDlay Parameter Value Dry/Wet D63>W – D<W63 L→R Dlay 0.1 – 371.4 R→L Dlay 0.1 – 371.4 FBLevel -63 – 63 Input L, R, L&R L64 – C – R63 Output stereo, IND1&2, IND3&4, IND5&6, IND1 – 6 RevSend 0 – 127 ChoSend 0 –...
  • Page 24 AMPSIM Parameter Value Dry/Wet D63>W – D<W63 Drive 0 – 127 0, 1, 2, 3 1.0k – 18k, thru OutLevel 0 – 127 L64 – C – R63 Output stereo, IND1&2, IND3&4, IND5&6, IND1 – 6 RevSend 0 – 127 ChoSend 0 –...

  • Page 25: Effect Parameter Description

    Effect Parameter Description Parameter name Effect types in which the parameter exists AMDepth AM Depth TREMOLO AMP Type AMPSIM Attack Attack COMP NOISEGATE CchDlay Cch Delay Delay LCR ChoSend Chorus Send All types ChoRetrn Chorus Return System Chorus only CtofOfst Cutoff Frequency Offset WAH type Depth...
  • Page 26 Parameter name Effect types in which the parameter exists MixLevel Mix Level ENHANCER OutLevel Output Level DISTORTION type, COMP, NOISEGATE Output Output Select All types All types PanDir Pan Direction AUTOPAN PhseOfst Phase Shift Offset PHASER PMDepth PM Depth TREMOLO WAH type R→Ldlay R→L Delay...

  • Page 27: Midi Implementation Chart

    YAMAHA [ Drum Trigger Module ] MIDI Implementation Chart Model DTXT2S MIDI Implementation Chart Function ... Basic Default Channel Changed Mode Default Messages Alterd Note Number : True voice Velocity Note ON Note Off After Key's Touch Ch's Pitch Bender...
  • Page 28 Strings, Guitar & Percussion Division, Yamaha Corporation © 2003 Yamaha Corporation WA32850 Printed in Taiwan...
