Connection Summary - Pavone Systems DAT 700 Series Installation Manual

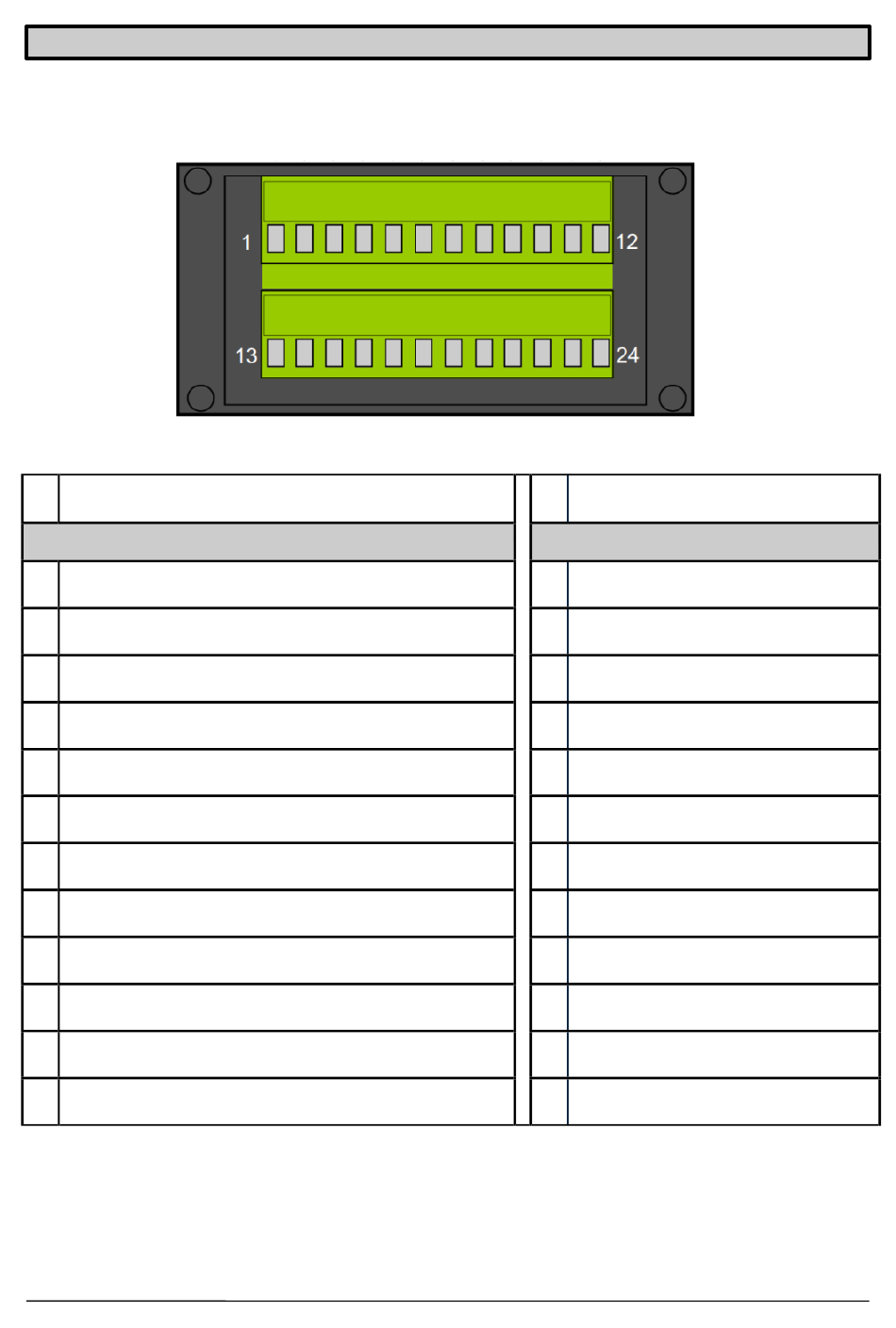

12P terminal block pitch 5.08
N°
Terminal block 12P (pitch 5.08)
+ 10/30 VDC power supply
1
2
Current Analog Output 0-20mA / 4-20mA Max 300 W
3
Current analog output 0-20mA / 4-20mA Max 300 W
Voltage analog output 0-5V / 0-10V min 10KW
4
Voltage analog output 0-5V / 0-10V min 10KW
Negative Analog Output Voltage/Current
5
Negative analog output Voltage/Current
6
7
8
9
10
11
12
Page 8

CONNECTION SUMMARY

+ 10/30 VDC power supply
GND
GND
(TX) RS232
(TX) RS232
(RX) RS232
(RX) RS232
SGND
SGND
+ RS485
+ RS485
- RS485
- RS485
N.C.
N.C.
N.C.
N.C.
DAT700: Installation of the instrument
12P terminal block pitch 5.08
N°
Terminal block 12P (pitch 5.08)
Output 1
13
Output 1
Output 2
14
Output 2
Common Outputs
15
Common (outputs)
+ Input 1
16
+ Input 1
+ Input 2
17
+ Input 2
Common Inputs
18
Common (inputs)
Cell Power Supply -
19
Load cell exc. -
Cell Power Supply+
20
Load cell exc. +
Cell Reference +
21
Load cell sense +
Reference Cell -
22
Load cell sense -
Signal Cell -
23
Load cell signal -
Signal Cell +
24
Load cell signal +
