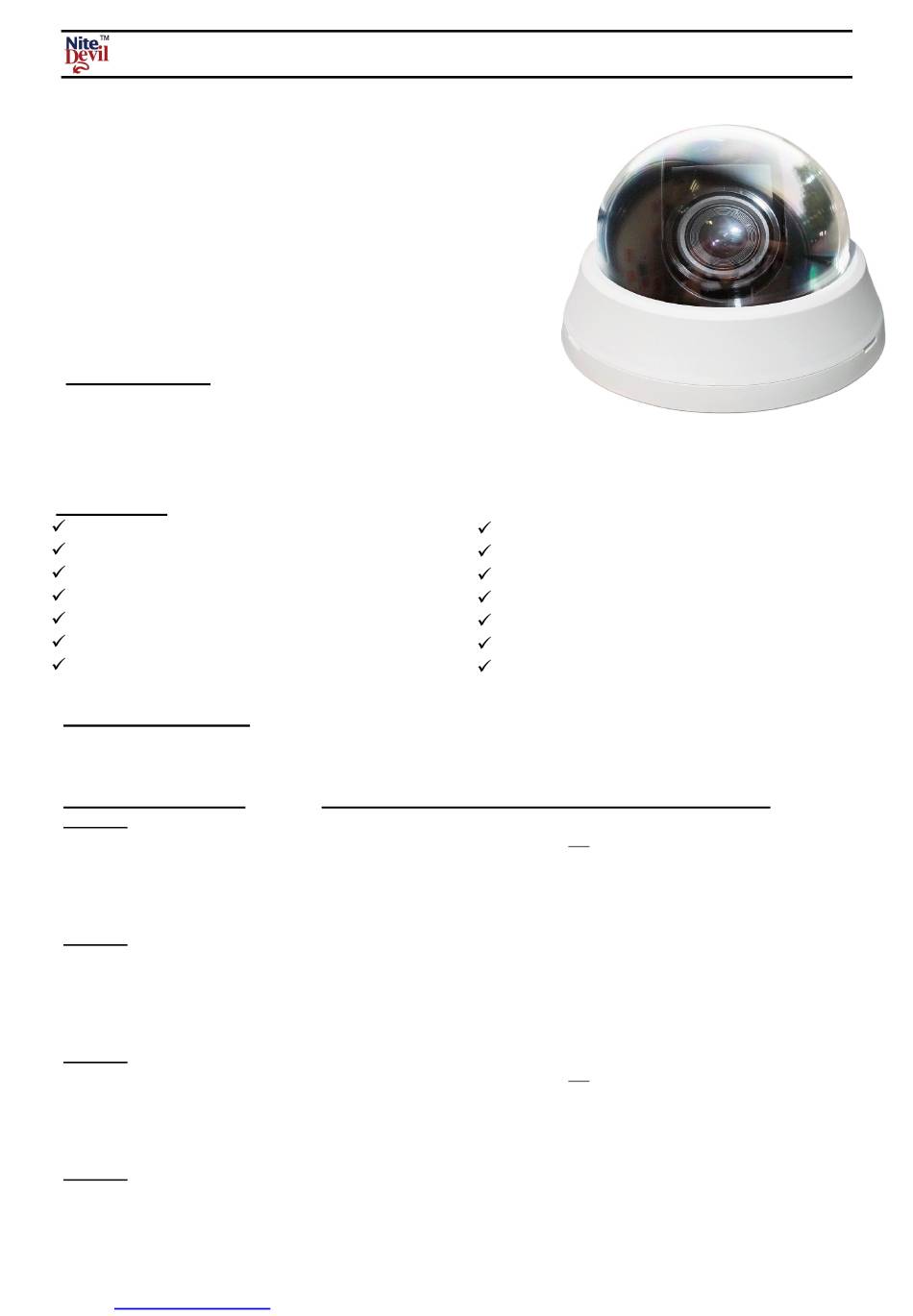

Nite Devil CAM725 Manual

www.nitedevil.com
CAM725/727/745/747
NiteDevil Internal Hi-Res Dome (IR Optional)
These NiteDevil IR Internal Dome Cameras produce high
quality images and work in very low light conditions down
to 0.00001 Lux. They have many features including a 3D
axis mounting inner bracket for wall mounting, a SONY
SuperHad CCD II and a 2.8mm ~ 12mm varifocal lens. An
OSD menu provides options for a WideLux Wide Dynamic
Range option, Highlight Eclipse function, motion detection,
Intelligent IR control, Digital Image Stabiliser, privacy
masking etc with option for RS485 menu control.
Models Available
CAM725 600TVL, 12VDC
CAM727 600TVL, 12VDC/24VAC
CAM745 600TVL, IR, 12VDC
CAM747 600TVL, IR, 12VDC/24VAC
Key Features
1/3" SONY SUPER HAD CCD II
Low illumination down to 0.00001 Lux
Digital Image Stabiliser
WideLux sWDR Function.
Highlight EclipseFunction
High Resolution 600TVL (day) 650TVL (night)
Intelligent IR Control
Mounting the Camera
The camera is for mounting on a wall, ceiling or outdoor facia board. Note that this camera has a 3D gimble allowing
wall mounting or ceiling mounting. Note that fitting the screws into a ceiling will require support for the screws.
Powering the Camera
CAM725
The dome requires a 12V DC regulated power supply. Connections are not polarity sensitive so the positive and
negative cables can be connected either way around. The camera is provided with a fly lead with a terminal connector
for power. This camera draws a maximum of 141mA at 12v DC. Ensure that a regulated power supply is used and
allow adequate headroom i.e only use a power supply with a minimum rating of 200mA.
CAM727
This dome is dual voltage. It will work on 12vDC or 24vAC. Connections are not polarity sensitive so therefore power
connections can be either way round. The camera is provided with a fly lead with a terminal connector for power. This
camera draws a maximum of 200mA. Ensure that a regulated power supply is used if using 12vDC and allow adequate
headroom i.e only use a power supply with a minimum rating of 300mA.
CAM745
The dome requires a 12V DC regulated power supply. Connections are not polarity sensitive so the positive and
negative cables can be connected either way around. The camera is provided with a fly lead with a terminal connector
for power. This camera draws a maximum of 330mA at 12v DC when IR LEDs are on. Ensure that a regulated power
supply is used and allow adequate headroom i.e only use a power supply with a minimum rating of 500mA.
CAM747
This dome is dual voltage. It will work on 12vDC or 24vAC. Connections are not polarity sensitive so therefore power
connections can be either way round. The camera is provided with a fly lead with a terminal connector for power. This
camera draws a maximum of 420mA. Ensure that a regulated power supply is used if using 12vDC and allow adequate
headroom i.e only use a power supply with a minimum rating of 600mA.
Email: support@nitedevil.com
NiteDevil Ultra Hi-Res Internal Colour Camera
Note: Do not connect power to the RS485 connections
True Day & Night (ICR)
3 Axis 3D built-in bracket
Vari-focal 2.8 ~ 12mm Auto DC Iris Lens
White Plastic Housing with Smoked Cover
20 x IR 850nm Leds on CAM745/747
RS485 remote menu control
2/3DNR Noise Reduction for night viewing
Last Revised: 31/01/2012
Doc XCAM727
