www.nitedevil.com
NiteDevil CAM950/955/960 Covert Modules

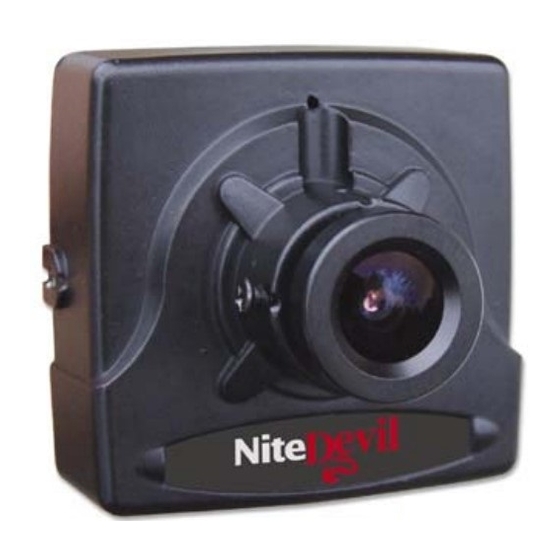

This NiteDevil Camera is a miniature covert camera
measuring only 36.5mm wide x 36.5mm high and
includes a free fixing bracket.
Available in three lens options.
CAM950 - 3.6mm board lens,
CAM955 - 3.7mm flat pinhole lens
CAM960 - 3.7mm cone pinhole lens.
All 3 cameras provide a resolution of 600TVL in colour and 700TVL in b/w. These cameras come
with many of the NiteDevil features including an OSD menu, the SENS-UP feature allowing minimum
illumination down to an incredible 0.00019 Lux and a WDR option. The cameras run on a 12V DC
supply and only draw 90mA allowing it to be used effectively in covert systems.
Features
1/3" Sony Super HAD CCD 600/700 TVL
Wide Dynamic Range setting
3 Lens Options
Built-in OSD menu
Miniature covert camera
Free mounting bracket
Powering the Camera
The dome requires a 12v DC regulated power supply providing a minimum of 120mA. When connecting to 12v DC power
supply, always use a regulated supply. The camera has a 2.1 power jack plug.
Connecting Video
Connect a BNC cable to the BNC connector on the camera and connect cable to monitor or DVR as required. You will need
a female to female BNC connector when connecting to a DVR
Precautions
Do not install the camera in extreme temperature conditions. Only use the camera where temperatures are between –20
degrees centigrade and +50 degrees centigrade.
Never install the camera in damp or humid conditions. This can affect image quality.
This camera requires stable lighting conditions to operate effectively.
Do not touch the front lens of the camera. Fingerprints can stain the lens glass.
The camera must not be placed directly facing the sun or strong light. This may damage the camera CCD.
Never expose the camera to rain or liquids. These will corrode the camera electronics.
Do not subject the camera to vibration as it may cause camera malfunctions.
Only use this camera internally.
Email: support@nitedevil.com
NiteDevil Hi-Res Covert Camera Modules
CAM955
Low Light 0.00019Lux
12V DC 90mA power consumption
SENS-UP auto function 2x – 256x
Built-in 3DNR function
Auto BLC function
Electronic Shutter
Doc XCAM950
CAM950
CAM960
Last Revised: 11/08/2010
Advertisement
Related Manuals for Nite Devil CAM950
Summary of Contents for Nite Devil CAM950
- Page 1 This NiteDevil Camera is a miniature covert camera measuring only 36.5mm wide x 36.5mm high and includes a free fixing bracket. Available in three lens options. CAM950 - 3.6mm board lens, CAM955 - 3.7mm flat pinhole lens CAM960 - 3.7mm cone pinhole lens. CAM950 All 3 cameras provide a resolution of 600TVL in colour and 700TVL in b/w.
- Page 2 www.nitedevil.com Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules To display the OSD menu press the SET button down Menu Settings for 3 seconds. Menu closes when no operation. 1. LENS 2. EXPOSURE 3. WHITE BAL 4. DAY NIGHT AUTO 5. 3DNR 6.
- Page 3 www.nitedevil.com Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules Menu Settings LENS When the SETUP menu screen is displayed, select LENS by using the UP & DOWN buttons so that the arrow 1. LENS MANUAL selects LENS. 2. EXPOSURE 3. WHITE BAL Select the connected type by using the LEFT &...
- Page 4 www.nitedevil.com Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules BLC / HSBLC MENUS This menu allows a selected area of the picture to be viewed GAIN more clearly in varying light conditions. DEFAULT GAIN LOW / MIDDLE / HIGH Select the level of gain by selecting low, middle or high. LEFT/RIGHT ____I_____ DEFAULT Press SET button to select default option.
- Page 5 www.nitedevil.com Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules MENU SETTINGS DAY NIGHT COLOUR / AUTO / EXT / BW 1. LENS COLOUR The option will always display in colour. MANUAL 2. EXPOSURE AUTO This option allows colour mode during day 3.
- Page 6 www.nitedevil.com Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules MENU SETTINGS SPECIAL 1. LENS MANUAL 1. CAM TITLE OFF / ON 2. EXPOSURE 3. WHITE BAL 2. D-EFFECT 4. DAY NIGHT AUTO 3. RS485 5. 3DNR 4. MOTION 6. SPECIAL 5. PRIVACY 6.
- Page 7 www.nitedevil.com Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules FREEZE OFF / ON This option if set to ON will freeze current picture. Select OFF to revert to normal video MIRROR MIRROR / ROTATE / V-FLIP / OFF This option allows the normal video displayed to be switched to vertical flip, horizontal flip, both or none. MIRROR This flips the camera view vertically on the screen.
- Page 8 www.nitedevil.com Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules PRIVACY ON / OFF SPECIAL Allows an area on screen to be hidden. PRIVACY 1. CAM TITLE OFF / ON 2. D-EFFECT AREA SELECT AREA 1 ~ 8 3. RS485 AREA DISPLAY ON / OFF 4.
- Page 9 www.nitedevil.com Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules MENU SETTINGS ADJUST 1. LENS MANUAL SHARPNESS ________ 21 2. EXPOSURE BLUE ________ 81 3. WHITE BAL 4. DAY NIGHT AUTO ________ 88 5. 3DNR 6. SPECIAL RETURN 7. ADJUST 8. RESET 9.
-
Page 10: Technical Specifications
Doc XCAM950 NiteDevil Hi-Res Covert Camera Modules TECHNICAL SPECIFICATIONS FUNCTION CAMERA MODEL Camera Model CAM950 CAM955 CAM960 Imaging Sensor 1/3” SONY Super HAD CCD 11 Signal System NTSC: 525 Lines / PAL: 625 Lines Scanning System 2:1 Interlace Scanning Frequency H:15.625Hz / V:50Hz...
