www.nitedevil.com

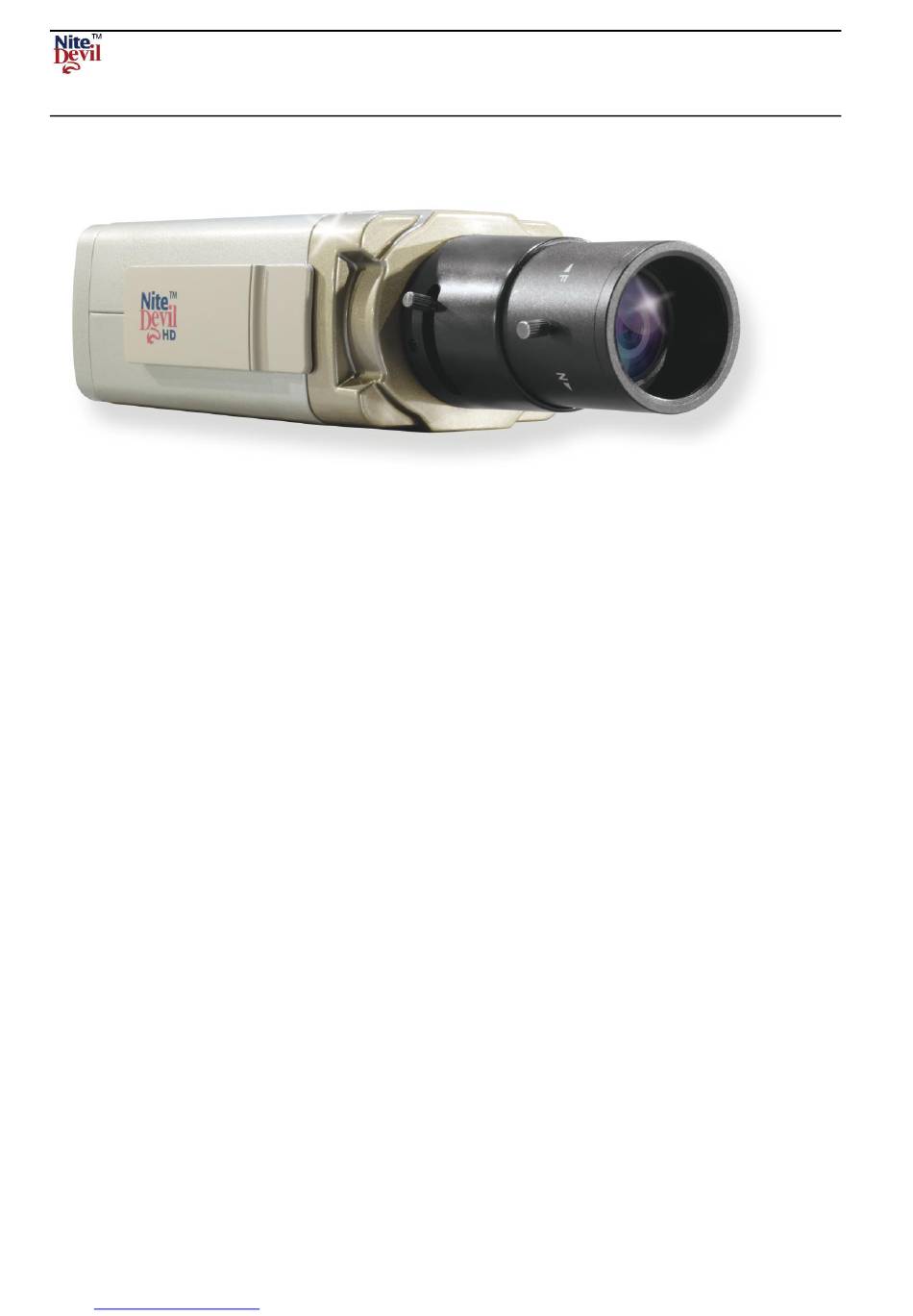

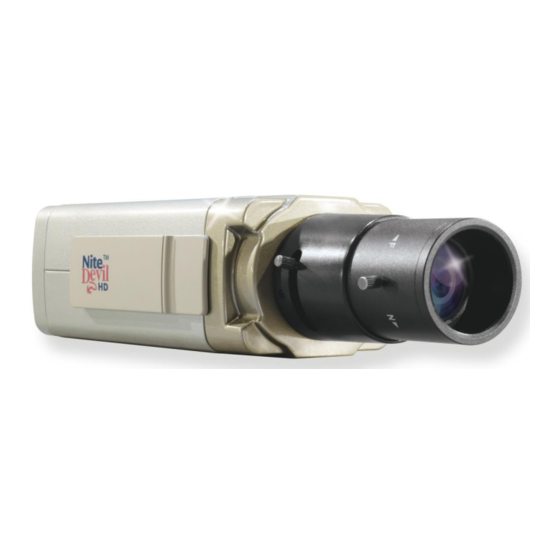

NiteDevil Traditional Wide Dynamic HD Cameras
NiteDevil SEE240 / SEE243 range
These stylish 1080p HD Multi-Format NiteDevil Cameras now available in a
traditional style. They are complimented with an OSD menu, allowing access via
camera or TVI coaxitron, privacy masking, (WDR) Wide Dynamic Range, Defog and
excellent night time pictures using the NiteDevil low light functionality. The cameras
are supplied in 12vDC or dual voltage models each with three versions without or
with, two lens options.
Model
SEE240 12v DC no lens
SEE240L 12v DC 2.8~12mm 1/2.8" lens & 2.1 Mega Pixel sensor
SEE240P 12v DC 5 ~ 50mm 1/2.8" lens & 2.1 Mega Pixel sensor
SEE243 Dual voltage 12vDC/24vAC no lens
SEE243L Dual Voltage 12vDC/24vAC 2.8~12mm 1/2.8" lens & 2.1 Mega Pixel sensor
SEE243P Dual Voltage 12vDC/24vAC 5 ~ 50mm 1/2.8" lens & 2.1 Mega Pixel sensor
Features
 1.28" CMOS sensor
 Wide Dynamic Range setting
 True Day/Night
 Built-in OSD menu
 Privacy Masking
 Electronic Shutter
 NiteDevil low light functionality
 Contrast & Sharpness adjustments
Mounting the Cameras
These cameras can be installed indoors by using camera brackets or outdoors in housings. The
cameras are fitted with ¼" UNC threads for Tripod/Camera brackets fitted above or below the
camera. When using cameras outdoors in housings, ensure the housing is large enough to take the
traditional camera plus the length of the lens assembly.
Email:
support@nitedevil.com
Multi-Format (TVI/AHD/CVI/CVBS)
 Low Light (Colour: 0.1 Lux / B&W: 0.001 Lux)
 Maximum 1.6 watts power consumption
 SENS-UP auto function 2x ~ 32x
 Digital Noise Reduction function
 Mirror/Flip options
 Motion Detection Function
 Auto Colour Enhancement (ACE)
 Defog option
XSEE240
Last Revised: 12/04/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEE240 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Nite Devil SEE240 Series

Summary of Contents for Nite Devil SEE240 Series

  • Page 1 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) NiteDevil SEE240 / SEE243 range These stylish 1080p HD Multi-Format NiteDevil Cameras now available in a traditional style. They are complimented with an OSD menu, allowing access via camera or TVI coaxitron, privacy masking, (WDR) Wide Dynamic Range, Defog and excellent night time pictures using the NiteDevil low light functionality.
  • Page 2 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) Powering Cameras (Do not power up camera until you have read this manual) SEE240 12v DC ONLY The SEE240 requires a 12v DC regulated power supply providing a minimum of 130mA. When connecting to any 12v DC power supply, always use a regulated supply.
  • Page 3 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) Fitting the Camera Lens C or CS Mount Lenses Most lenses available now are CS mount lenses. CS mount lenses are shorter and more compact than the older C mount lenses. Whether you are using CS mount or C mount lenses, either will work with these cameras without the need for a spacer ring.

  • Page 4: Accessing The Camera Menu

    www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) Connecting the camera to other equipment This traditional camera comes with a BNC for video and a 2 pin adapter for power. A short power lead (approx. 16cm long) is supplied that connects to a psu with a 2.1 power jack and terminal connections at other end, for connecting to terminal connector on back of camera.
  • Page 5 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) Menu Access via TVI DVR using Coaxitron Access to the camera menu is via the menu buttons on the camera or via the Up the Co-ax connection. Access by the menu buttons is described below. To use the Up The Coax connection, this can be accessed using the PTZ menu in the MEGA TVI or MAX TVI DVRs using the AlienTVI(Coaxitron) protocol.
  • Page 6 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) OSD Menu The SEE240 range cameras have an on screen display menu. This can be accessed using the joystick on the camera. Press the ENTER button (see arrow) to enter the menu and use Left, Right, Up and Down to move through and amend menu settings.
  • Page 7 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) DAY&NIGHT AUTO IR LED Off / On (No IRs but IR sensitive) Anti-Sat. 1 ~ 20 Default 10 (Not used when IRs off) AGC Threshold 1 ~ 20 (Def 9) AGC Margin 1 ~ 20 (Def 13) Delay –...
  • Page 8 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) MOTION OFF / ON Det Window Window Zone 0 ~ 3 (Default 0) Window Use On/Off Det H-Pos <nn> <nn> value = position (Def 1) Det V-Pos <nn> <nn> value = position (Def 1) Det H-Size <nn>...

  • Page 9: Menu Description

    www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) Menu Description The following menu description gives more in depth information about the menu options. In some instances recommendations are made to hopefully enhance the results. However every installation will be different and there will occasions when alternative solutions may be more suitable. Electronic Light Control –...
  • Page 10 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) BRIGHTNESS 0 ~ 20 (Def 10) SHUTTER Auto / Manual / / Flicker EXPOSURE Normal /Deblur (Def Auto) Manual- 1/25,1/50,1/100,1/200,1/400,1/800,1/1600,1/3200, 1/6400,1/12800,1/25600 (Def 1/25) Flicker SENS-UP Off /x2/x4/x8/x16/x32 (Def Off) 0 ~ 10 (Def 10) RETURN BRIGHTNESS 1 ~ 20 (Default = 10)
  • Page 11 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) BACKLIGHT Level 1 ~ 20 / Color – BLK/Customise WHT/YEL/CYN/GRN/MAG/RED/BLU H-Pos – V-Pos – H-Size – V-Size - Return Normal / ROI (Region of Interest) ROI – SPECIAL NOTE: Window Zone 0 ~ 3 IF USING WDR YOU Window Use ON / OFF WILL LOSE ANY CVBS...

  • Page 12: Day&Night

    www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) DAY&NIGHT AUTO IR LED Off / On (No IRs but IR sensitive) Anti-Sat. 1 ~ 20 Default 10 (Not used when IRs off) AGC Threshold 1 ~ 20 (Def 9) AGC Margin 1 ~ 20 (Def 13) Delay –...
  • Page 13 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) COLOR AWB Auto/Autoext/Preset Preset (Push) Manual Color Gain 1 ~ 20 Default 10 Color Gain 1 ~ 20 Return (Default 10) Return MANUAL C-Temp 5000K / 8000K / 3000K (Def 5000K) R-Gain 1 ~ 20 (Default 10) B-Gain 1 ~ 20 (Default 10) Return...
  • Page 14 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) IMAGE SHARPNESS CVBS / CVI / TVI / AHD - 1 ~ 10 TVI Default 4 GAMMA 0.55 / 0.65 /0.75 / 0.45 (Default 0.55) MIRROR Off / On (Default Off) FLIP Off / On (Default Off) Off / Low / Middle / High (Adaptive Colour &...
  • Page 15 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) DEFOG Off / On Mode – Auto - Level - Low / Middle / High Manual - Level - Low / Middle / High The defog option can be used to improve the captured image in poor weather conditions such as smog, fog or smoke.
  • Page 16 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) MOTION OFF / ON Det Window Window Zone 0 ~ 3 (Default 0) Window Use On/Off Det H-Pos <nn> <nn> value = position (Def 1) Det V-Pos <nn> <nn> value = position (Def 1) Det H-Size <nn>...
  • Page 17 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) SYSTEM OUTPUT Main Output Analog Out 0 / Out 1 Analog Out 0 TVI/AHD/CVI / Analog Out1 CVBS Y Gain 0 ~ 32 Def 16 / Y Gain not used CB Gain 0 ~ 32 Def 119 CB Gain not used CR Gain 0 ~ 32 Def 119...
  • Page 18 www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) Analog Out1 CVBS / TVI / Off Analog Out1 CVBS Return FRAME RATE 1080 25P / 720 25P / 720 (Crop) 50P (Select camera frame rate) Sets the camera output mode. 1080P is default. FREQ 50Hz / 60Hz (Cycles per second) COM.

  • Page 19: Technical Specifications

    www.nitedevil.com XSEE240 NiteDevil Traditional Wide Dynamic HD Cameras Multi-Format (TVI/AHD/CVI/CVBS) Technical Specifications FUNCTION CAMERA MODEL Camera Model SEE240 SEE243 Camera Options for lenses SEE240 SEE240L SEE240P SEE243 SEE243L SEE243P No Lens 2.8~12mm 5 ~ 50mm No Lens 2.8~12mm 5 ~ 50mm 1/2.8”...
