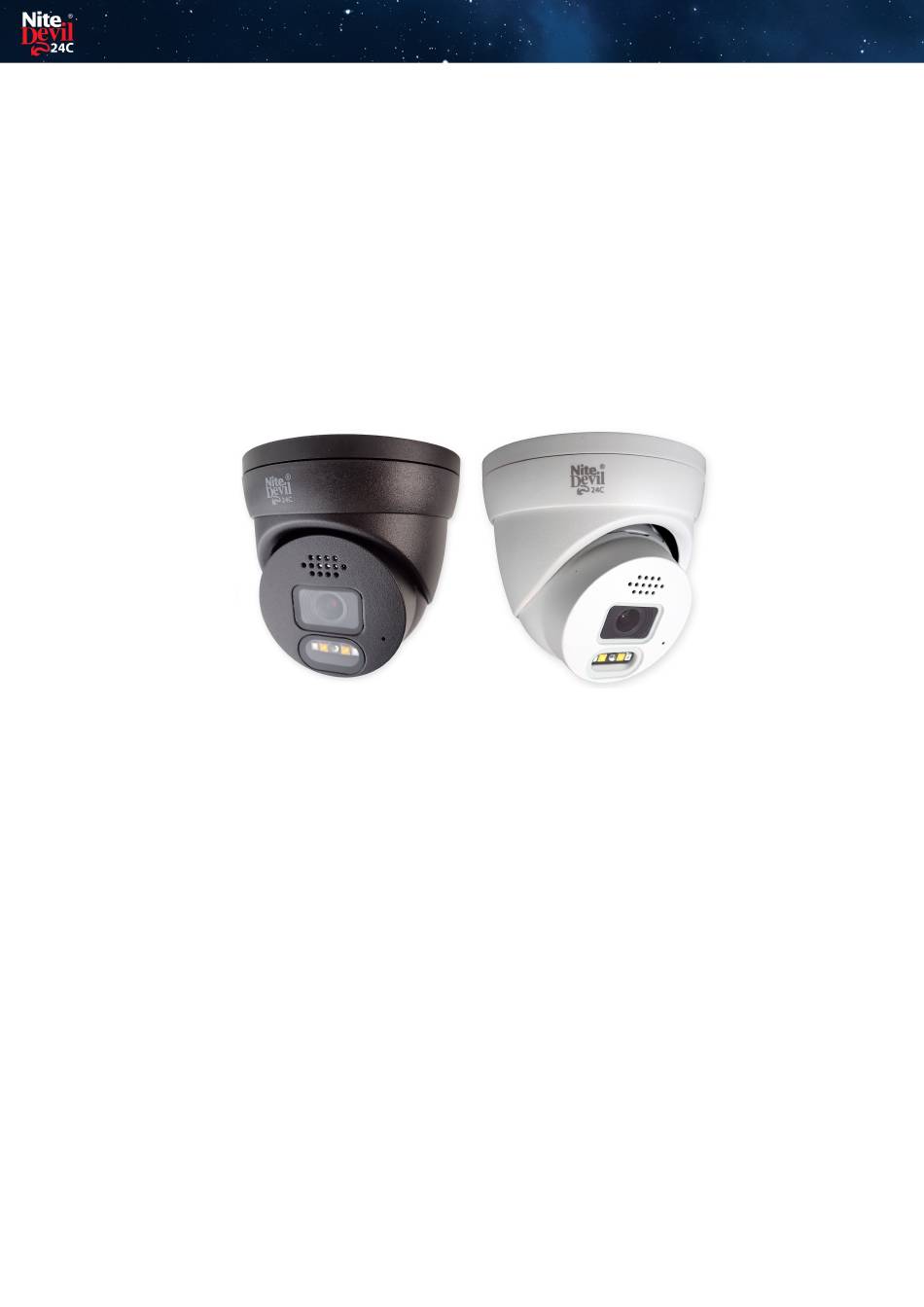

- Page 1 Instruction Manual NiteDevil 24C Camera IPCND714 © 2023 System Q Ltd NiteDevil.com...
-
Page 2: Table Of Contents
1 IPCND714 ........................9 Part 8 Customising the Day / Night Setting to IR Part 9 Turning the White Lights Off Part 10 AI Features - IPCND714 1 PID = Perimeter Intrusion Detection ................17 2 LCD = Line Crossing Detection ..................18... -
Page 3: Part 1 Introduction - Nitedevil Hero
Introduction - NiteDevil Hero Introduction - NiteDevil Hero The NiteDevil Hero can stay in full colour around the clock using its built in white light LEDs to produce superb full colour images. Up to 25m IR range (true day/night filter) and up to 20m white light range, 4MP resolution, built in PoE, H265 and H264 codec. -
Page 4: Essential Tools And Zipfinder
IPCND714 1.2 Essential Tools and ZipFinder To install this product you will need: · Laptop / Windows PC · Screwdriver · Drill · ZIP NVR or DVR · PoE Switch / 12V DC power supply · Ethernet CAT5/5e/6 Cable ZipFinder - IP Camera Configuration Tool... -
Page 5: Part 2 Connections
Connections Connections Powering the camera Option 1 - Power the camera from 12V DC (via the 2.1mm DC Socket), the current consumption is 420mA. The camera is polarity sensitive so connections must be correctly made. Option 2 - Power the camera using a PoE 48V RJ45 Socket When connecting ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch. -
Page 6: Part 3 Mounting
IPCND714 Mounting SD Card The SD Card can be found on the rear of the eyeball, a small gasket will need to be removed to install the SD card. For local recording on the camera itself an SD card must be installed. -
Page 7: Part 5 Setup Options
Setup Options Setup Options 5.1 PoE ZIP NVR When connecting to a ZIP PoE NVR plug the camera directly into the NVR's built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. The 100m distance for a camera can be increased when the PoE Mode is set to EPoE. -
Page 8: Non-Poe Zip Nvr
IPCND714 5.2 Non-PoE ZIP NVR When connecting cameras to a Non-PoE NVR, they are first connected to an external network switch which is in-turn connected to the NVR as shown below. See Extra Resources for more information on Adding IP Cameras manually to a ZIP Recorder. -
Page 9: Part 6 How To Login Via Browser
How to Login via Browser How to Login via Browser The AI smart features can be configured in a ZIP recorder or directly in the browser interface of the camera (standalone) Only one smart detection feature can be enabled at any given time. See the NVR or DVR manual for information on configuring these features with a ZIP recorder. - Page 10 IPCND714 2. Using ZipFinder on a Windows Based PC/ Laptop Search and then tick the camera 3. Select Net Mode = DCHP, then click Modify 4. Search again, to get the updated IP address. 5. Select the IP address of the camera, Internet Explorer will pop-up, and ask to download and install the plug-in.
-
Page 11: Part 7 Browser Menu Settings
Browser Menu Settings Browser Menu Settings 7.1 IPCND714 The menu be configured directly in the browser interface of the camera (standalone), in Remote Setting you will find the menu settings below:- Video Live Name Camera (user editable) Image Control Date Format... - Page 12 IPCND714 Bitrate 128 to 1024 I Frame Interval 1 to 100 Audio Enable / Disable Save / Refresh Record Record Stream Mode Mainstream / Substream Record Enable / Disable PreRecord Enable / Disable Netbreak Enable / Disable Save / Refresh...
- Page 13 Browser Menu Settings Rule Number 1 to 4 Rule Enable Enable / Disable Rule Type Save / Refresh Enable Enable / Disable Sensitivity 1 to 4 Dynamic Marking Enable / Disable Detection Type Pedestrian & Vehicle / Person / Vehicle Rule Number 1 to 4 Rule Enable...
- Page 14 IPCND714 Save / Test / Refresh RTSP RTSP Enable Anonymous Login Enable / Disable Instruction: rtsp://IP:RtspPort/ch01/A A: 0(main stream), 1(sub stream), 2(mobile stream) Save / Refresh DDNS DDNS Enable / Disable Server NO_IP / DYNDNS Hostname User-definable Username User-definable Password...
- Page 15 Browser Menu Settings Password User- Strength definable Confirm Refresh Maintain Log Log Type System / CON. / Search Alarm / Account / Record / Storage / Network / All Start Time User-definable End Time User-definable Load Default All / Video / Record/ Event / AI / Network/ Storage / System Save / Refresh Upgrade...
-
Page 16: Part 8 Customising The Day / Night Setting To Ir
IPCND714 Customising the Day / Night Setting to IR Once logged into the camera browser interface:- Go To Remote Settings > Video > Image Control > Image Settings e.g. Day / Night mode if want the camera to B&W & use the IR Suggested setting : IR Cut to Auto. -
Page 17: Part 9 Turning The White Lights Off
Turning the White Lights Off Turning the White Lights Off With the NiteDevil Hero 24C cameras the White LEDs can be set to IR LED mode instead. This setting can be controlled directly via web interface or via the menu on a compatible ZIP NVR (ZIPE204, ZIP408 &... -
Page 18: Part 10 Ai Features - Ipcnd714
IPCND714 AI Features - IPCND714 The AI smart features can be configured in a ZIP recorder or directly in the browser interface of the camera (standalone) Only one smart detection feature can be enabled at any given time. See the NVR or DVR manual for information on configuring these features with a ZIP recorder. -
Page 19: Pid = Perimeter Intrusion Detection
AI Features - IPCND714 10.1 PID = Perimeter Intrusion Detection Perimeter intrusion detection can be set to trigger an alarm event when movement is detected in a set area. Enable = Enable / Disable this AI feature. Sensitivity - Determines how much activity or movement is required to generate an event. -
Page 20: Lcd = Line Crossing Detection
IPCND714 10.2 LCD = Line Crossing Detection Line crossing detection can be set to trigger an alarm event when movement is detected across a custom line. Enable = Enable / Disable this AI feature. Sensitivity - Determines how much activity or movement is required to generate an event. -
Page 21: Part 11 General Maintenance
General Maintenance General Maintenance · Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. It is recommended to use a damp non-abrasive microfibre cloth. · Routinely check the connections for power and data to ensure no water ingress and corrosion. -
Page 22: Part 12 Specifications
IPCND714 Specifications 12.1 IPCND714 Resolution 4MP (2592 x 1520) Lens Type Wide Angle 2.8mm Fixed Video Compression H264 / H265 Bit Rate 128Kbps ~ 4Mbps Shutter 1/5 ~ 1/20000s ~ Flickerless Min. Illumination Colour 24/7 with White Light LEDs Day/Night Function... -
Page 23: Part 13 Conditions
Conditions Conditions All specifications are approximate. System Q Ltd reserves the right to change any product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible in any way for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment that these instructions refer to. -
Page 25: Index
Index Index - C - Checking and cleaning the camera Connections - D - Day / Night Setting - E - Essential Tools and software - I - Installation Installing an SD Card - L - Line Crossing Detection Login via browser interface - M - Maintenance Mounting the camera...
