Krowne ROYAL Series Installation Manual
Single hole deck mount pre-rinse
Hide thumbs
Also See for ROYAL Series:
- Instruction manual (16 pages) ,
- Installation manual (8 pages) ,
- Installation manual (8 pages)
Related Manuals for Krowne ROYAL Series
Summary of Contents for Krowne ROYAL Series

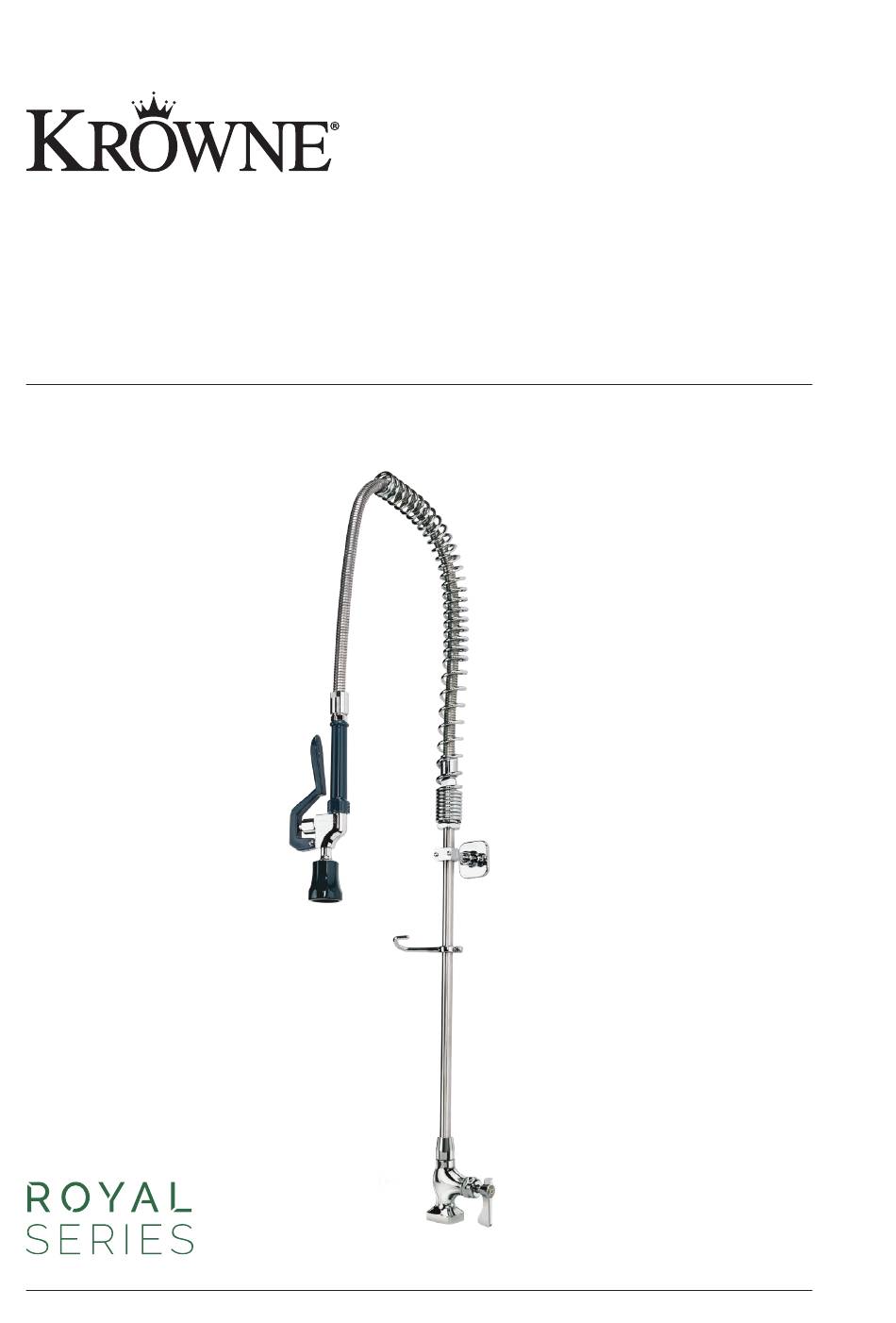

- Page 1 Single Hole Deck Mount Pre-Rinse Installation Manual 17-206WL Krowne • 100 Haul Rd. Wayne, NJ 07470 • (800) 631-0442 • krowne.com...
- Page 2 5. From the bottom of the sink, install the water supply line and tighten properly. 6. To assemble the pre-rinse, remove the riser pipe (B). Thread onto the faucet body (D) and tighten. Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com...
- Page 3 Tighten appropriately. 13. Loosen the spray head hook (K) and center it on the riser pipe. Tighten when it is in place. Figure 2 Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com...
- Page 4 Single Hole Deck Mount Pre-Rinse Installation Manual Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com...
- Page 5 21-164L Grip (1/2” NPS Male) 21-165 Hook/Screw Assembly 21-171 Spray Head Handle 21-302L Button Valve 21-179L Spray Head Repair Kit - New Style (2007 to present) 21-129L 1.15 GPM Spray Head Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com...
- Page 6 Pot Filler Spray Head 21-170 Ring 21-311 Wrist Blade Handle Kit (includes hot and cold handles) 21-198L 1/2” x 3/8” Braided Supply Hoses 21-547L Swivel Pre-Rinse Hose Connector 25-150 Thread Sealant Tape Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com...
- Page 7 Single Hole Deck Mount Pre-Rinse Installation Manual Notes Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com...
- Page 8 Warranty. Equipment covered by the Warranty shall only be warranted in connection with its original installation only. Krowne will only be obligated to honor the warranty set forth in these terms and conditions upon receipt of full payment for the equipment.
