Krowne ROYAL Series Instruction Manual

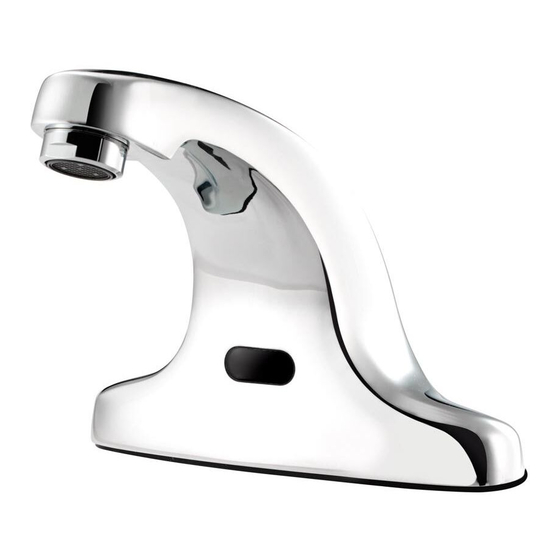

Electronic sensor faucet
Hide thumbs
Also See for ROYAL Series:
- Instruction manual (12 pages) ,
- Installation manual (8 pages) ,
- Installation manual (8 pages)
Related Manuals for Krowne ROYAL Series
Summary of Contents for Krowne ROYAL Series

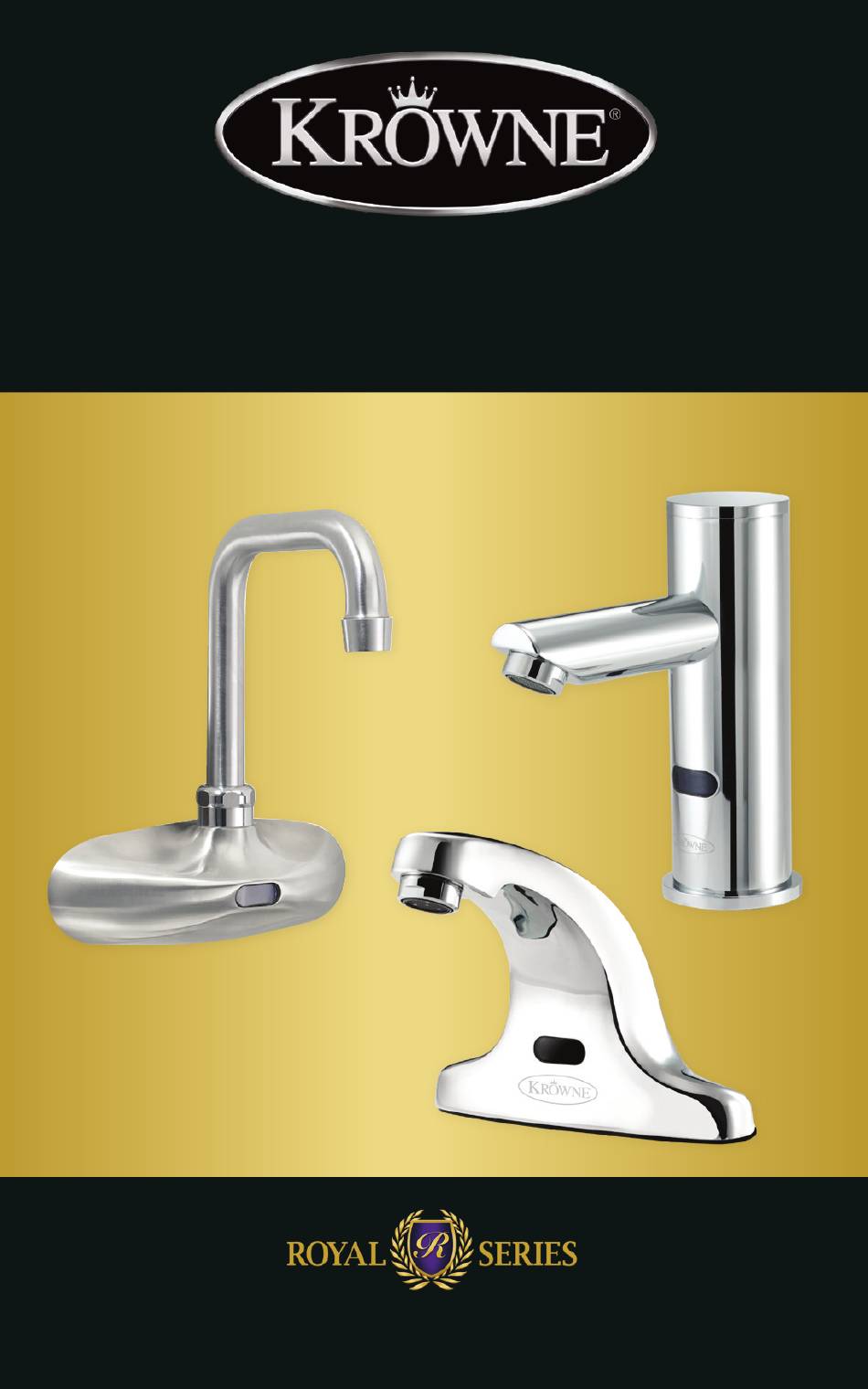

- Page 1 ELECTRONIC SENSOR FAUCET INSTRUCTION MANUAL Krowne Metal Corporation • 100 Haul Road • Wayne, NJ 07470 Toll Free: (800) 631-0442 • customerservice@krowne.com • krowne.com...
- Page 2 Electronic Faucet Parts COLD Part Model Spout Supply Hose 16-512 Control Module 16-198 Mechanical Mixing Valve 16-402L Hot & Cold Supply Hoses 16-510 AC Adapter (optional) 16-199 Thermostatic Mixing Valve (optional) 16-405L Replacement Filter 16-187 Hydro Generator (optional) 16-501...
- Page 3 Model 16-190 Model 16-191 Single Hole Wall Mount w/ 4-1/2” Swivel Single Hole Wall Mount w/ 6” Swivel Gooseneck Gooseneck No. Part Model No. Part Model 1.0 GPM Outlet 22-576L 1.0 GPM Outlet 22-576L Flat Sensor with Cable 16-505 Flat Sensor with Cable 16-505 Model 16-192 Model 16-649...
- Page 4 Model 16-650 Model 16-654 Single Hole Deck Mount w/ 6” Rigid Single Hole Deck Mount w/ Straight Spout Gooseneck No. Part Model No. Part Model 1.0 GPM Outlet 22-576L 1.0 GPM Outlet 22-577L Convex Sensor with Cable 16-506 Convex Sensor with Cable 16-506 4”...
- Page 5 Model 16-670 Model 16-675 4” Center Wall Mount with 4-1/2” Double Single Hole Wall Mount, Satin Finish Bend Spout, Satin Finish No. Part Model No. Part Model 1.0 GPM Outlet 22-576L 1.0 GPM Outlet 22-577L Flat Sensor with Cable 16-505...
-
Page 6: Tools Required
IMPORTANT • DO NOT USE PIPE DOPE AS A SEALANT. All water lines provided with faucet are compression fittings and do not require sealant. Pipe dope will damage the valve and filters and will void the warranty. • DO NOT OVERTIGHTEN. •... -
Page 7: Installation
INSTALLATION STEP 1 • INSTALL FAUCET ASSEMBLY MOUNT ON SURFACE UP TO 1” THICK • Feed sensor cable and supply inlet through base gasket and mounting hole. • Secure using lock washer and nut as shown in below. Model 16-190 Model 16-191 Brass Washer... - Page 8 INSTALLATION (con’t) Model 16-650 Model 16-654 Base Gasket Mounting Surface Base Gasket Washer Mounting Surface Lock Washer Model 16-196 Model 16-197 Base Gasket Base Gasket Mounting Surface Mounting Surface Lock Washer Lock Washer...
- Page 9 INSTALLATION (con’t) Model 16-670 Model 16-675 Brass Washer Elbow Brass Washer Elbow Mounting Surface Mounting Surface...
- Page 10 INSTALLATION (con’t) Note: Refer to below diagram for step by step installation. STEP 2 • Install Mechanical Mixing Valve Install Mechanical Mixing Valve into inlet location #1 on the Control Module, which has a compression fitting. Do not use thread sealant and do not overtighten. The Control Module is to be mounted to a wall and the Mechanical Mixing Valve must be straight as per photo below.
-
Page 11: Step 4 • Power Connection
INSTALLATION (con’t) side of the hot water supply line to the hot side of the mixing valve and tighten properly and do the same for the cold supply line. Do not overtighten. Do not use thread sealant. STEP 4 • Power Connection ƒ... -
Page 12: Things To Know
THINGS TO KNOW MANUALLY OPERATING THE FAUCET. The faucet can be manually operated without placing hands in front of the sensor. To do this, remove the front battery cover. Press on the small button for 10 seconds in order to begin the water flow. Press again to cease the water flow. If the faucet is left on, it will automatically turn off in a minute. - Page 13 TROUBLESHOOTING No water flow remedy continued 3. The stainless steel supply lines may be twisted which can twist the inside material and restrict or cut off the water flow to the spout. Turn off water supply and loosen each hose and tighten properly making sure the hose does not rotate or get kinked.
-
Page 14: Terms And Conditions
TROUBLESHOOTING Faucet Continues to Run Possible Causes a. Power Supply problem b. Debris in Solenoid Valve and/or Faulty Control Module Remedy 1. Remove the 6 screws on the battery cover and replace the batteries. If ac adapter is being used verify outlet has power 2. - Page 15 12. SHORTAGE Krowne must be notified in writing within 5 days of receipt of shipment. 13. TAXES Buyer will pay when due any and all taxes, tariffs, fees and assessments or any other similar charges imposed upon this contract, the goods covered hereby or the delivery, installation, use or resale thereof.
- Page 16 OTHER GREAT PRODUCTS BY KROWNE Krowne Metal Corporation • 100 Haul Road • Wayne, NJ 07470 Toll Free: (800) 631-0442 • customerservice@krowne.com • krowne.com...
