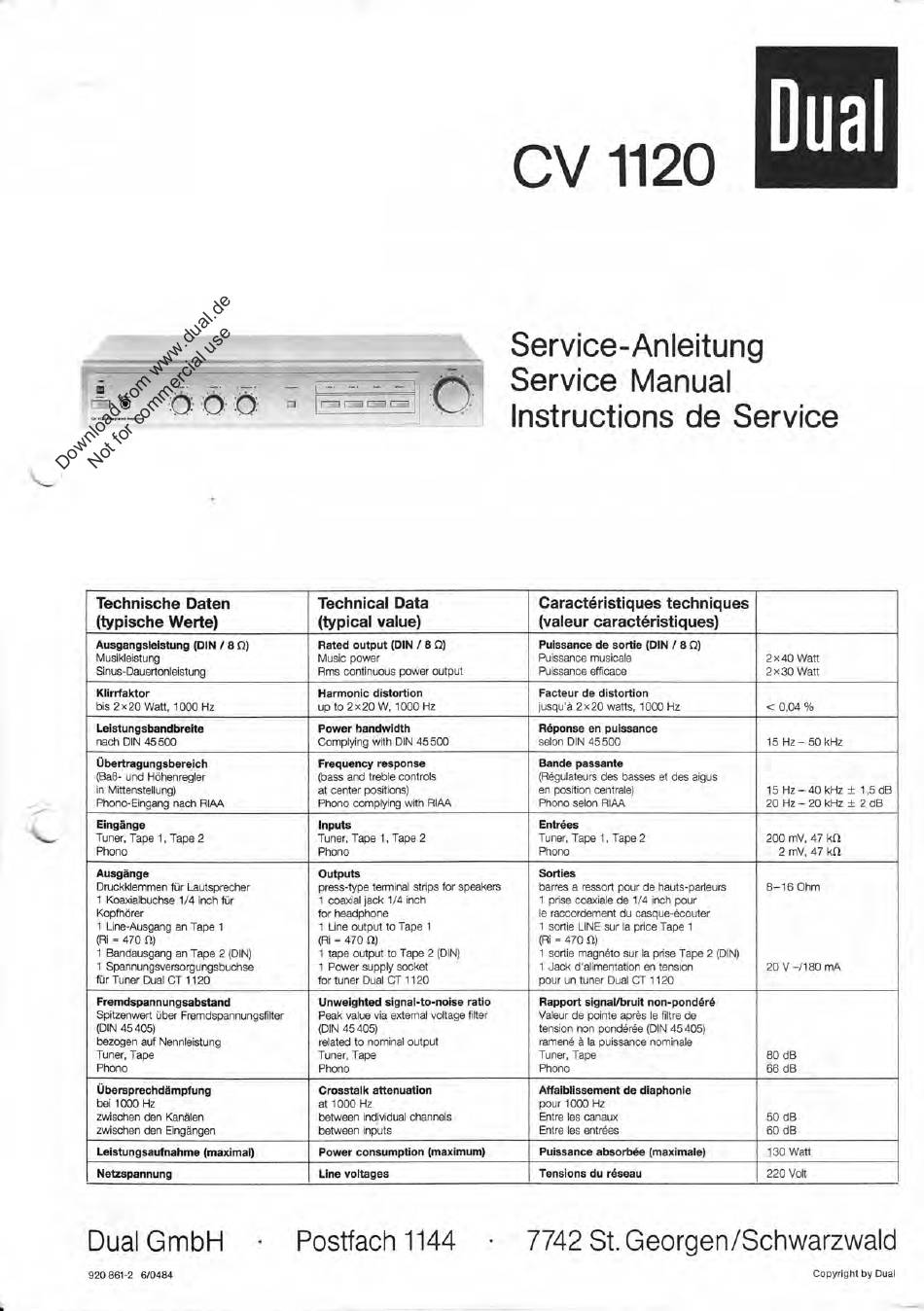

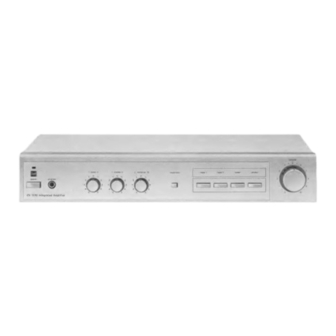

CV 1120
Dual
Service -Anleitung
Service Manual
Instructions de Service
Technische Daten
(typische Werte)
Technical Data
(typical value)
Caractöristiques techniques
(valeur caractdristiques)
Ausgangsleistung (DIN / 8 0)
Musikleistung
Sinus-Dauertonleistung
Rated output (DIN / 8 0)
Music power
Rms continuous power output
Puissance de sortie (DIN / 8 0)
Puissance musicale
Puissance efficace
2 x 40 Watt
2 x 30 Watt
Klirrfaktor
bis 2 x 20 Watt, 1000 Hz
Harmonic distortion
up to 2x20 W, 1000 Hz
Facteur de distortion
jusqu'ä 2x20 watts, 1000 Hz
< 0,04 %
Leistungsbandbreite
nach DIN 45 500
Power handwidth
Complying with DIN 45 500
Räponse en puissance
selon DIN 45 500
15 Hz —50 kHz
Übertragungsbereich
(Baß- und Höhenregler
in Mittenstellung)
Phono-Eingang nach RIAA
Frequency response
(bass and treble controls
at center positions)
Phono complying with RIAA
Bande passante
(Regulateurs des basses et des aigus
en position centrale)
Phono selon RIAA
15 Hz — 40 kHz ± 1,5 dB
20 Hz — 20 kHz ± 2 dB
Eingänge
Tuner, Tape 1, Tape 2
Phono
Inputs
Tuner, Tape 1, Tape 2
Phono
Entrdes
Tuner, Tape 1, Tape 2
Phono
200 mV, 47 k0
2 mV, 47 kfi
Ausgänge
Druckklemmen für Lautsprecher
1 Koaxialbuchse 1/4 inch für
Kopfhörer
1 Line-Ausgang an Tape 1
(Ri = 470
0)
1 Bandausgang an Tape 2 (DIN)
1 Spannungsversorgungsbuchse
für Tuner Dual CT 1120
Outputs
press-type terminal strips for speakers
1 coaxial lack 1/4 inch
for headphone
1 Line output to Tape 1
(Ri = 470 0)
1 tape output to Tape 2 (DIN)
1 Power supply socket
for tuner Dual CT 1120
Sorties
barres a ressort pour de hauts-parieurs
1 prise coaxiale de 1/4 inch pour
le raccordement du casque-ecouter
1 sortie LINE sur la price Tape 1
(Ri = 470
0)
1 sortie magneto sur la prise Tape 2 (DIN)
1 Jack d'alimentation en tension
pour un tuner Dual CT 1120
8-16 Ohm
20V —/180 mA
Fremdspannungsabstand
Spitzenwert über Fremdspannungsfilter
(DIN 45405)
bezogen auf Nennleistung
Tuner, Tape
Phono
Unweighted signal-to-noise ratio
Peak value via external voltage filter
(DIN 45405)
related to nominal output
Tuner, Tape
Phono
Rapport signaVbruit non-pondörd
Valeur de Pointe apres le filtre de
tension non ponderee (DIN 45405)
ramene ä la puissance nominale
Tuner, Tape
Phono
80 dB
66 dB
Übersprechdämpfung
bei 1000 Hz
zwischen den Kanälen
zwischen den Eingängen
Crosstalk attenuation
at 1000 Hz
between individual channels
between inputs
Affaiblissement de diaphonie
pour 1000 Hz
Entre las canaux
Entre las entrees
50 dB
60 dB
Leistungsaufnahme (maximal)
Power consumption (maximum)
Puissance absorbde (maximale)
130 Watt
Netzspannung
Line voltages
Tensions du rieseau
220 Volt
Dual GmbH
•
Postfach 1144
•
7742 St. Georgen/Schwarzwald
920 861-2 6/0484
Copyright by Dual
