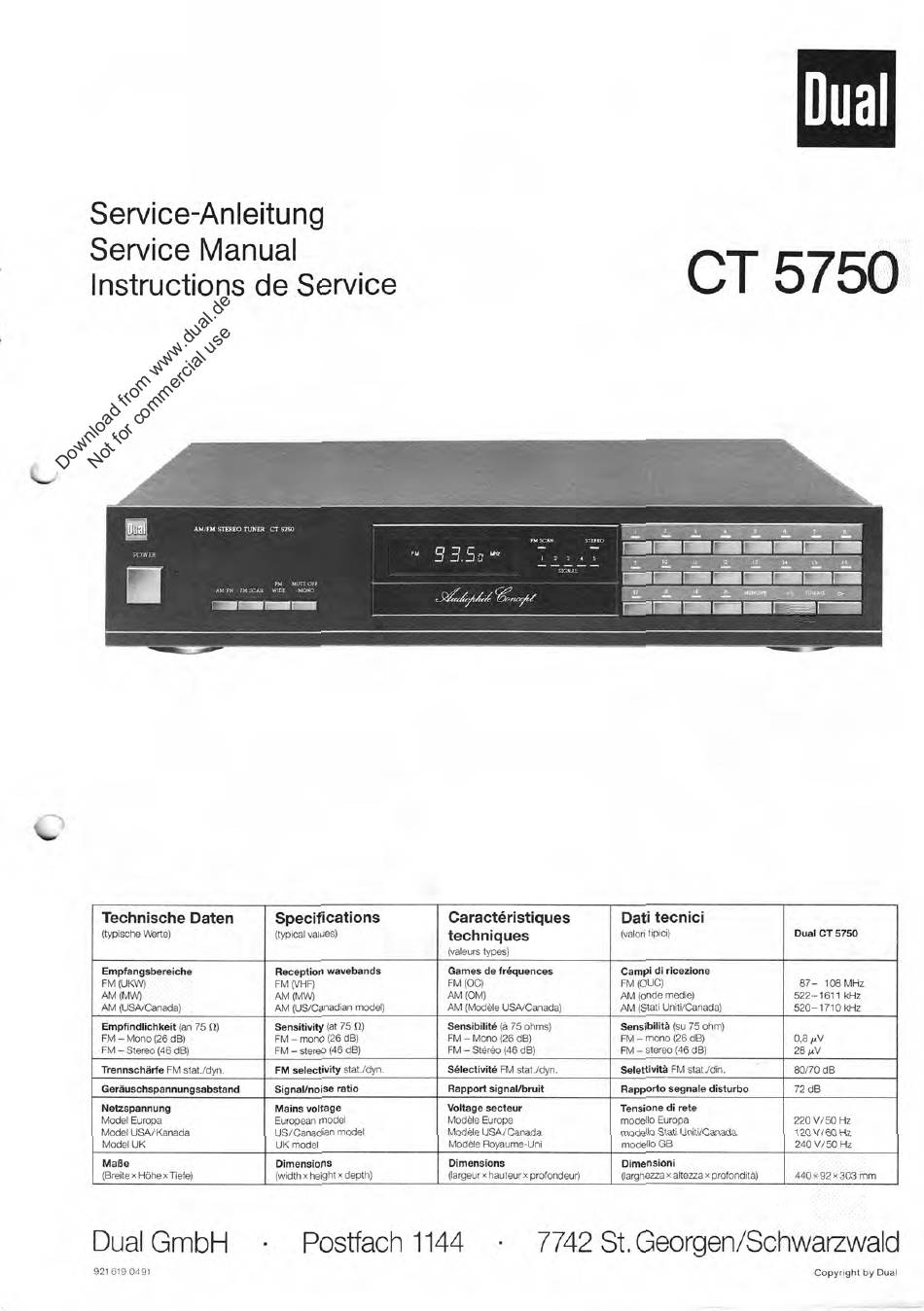

Dual CT 5750 Service Manual

Service-Anleitung
Service Manual
lnstructions de Service
POW ER

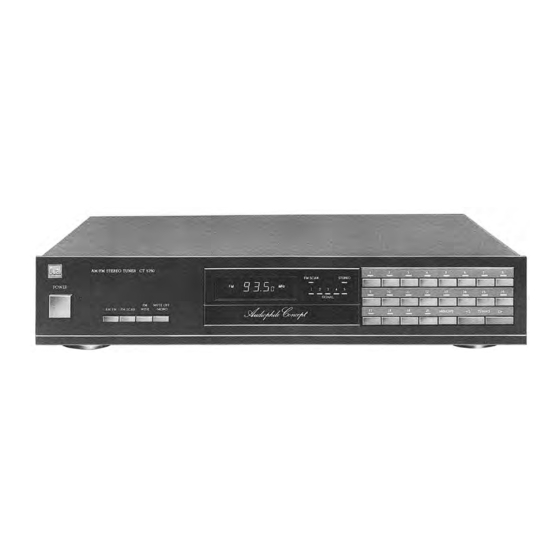

AM, P10 STEREO TUNER CT 5750
FM MUTE OFF
AFVFM FM SCAN WIDE 'MONO
5111.1111111111MIIMIX
SCAN
Dual
CT 5750
"-` 11 1 1 111 1 11111111M11111111111111M
, „
,SZeda#4
IIMMI IBM MI 1°-
SIGNAL
Technische Daten
(typische Werte)
Specifications
(typical vaiues)
Caracteristiques
techniques
(valeurs types)
Dati tecnici
(valori tipici) Dual CT 5750
Empfangsbereiche
FM (UKW)
AM (MW)
AM (USNCanada)
Reception wavebands
FM (VHF)
AM (MVV)
AM (US/Canadian model)
Garnes de fräquences
FM (OC)
AM (OM)
AM (Modele USA/Canada)
Campi di ricezione
FM (OUC)
AM (onde medie)
AM (Stati Uniti/Canada)
87— 108 MHz
522-1611 kHz
520-1710 kHz
Empfindlichkeit (an 75 0.)
FM — Mono (26 dB)
FM — Stereo (46 dB)
Sensitivity (at 75 0)
FM — mono (26 dB)
FM — stereo (46 dB)
Sensibilit6 (ä 75 ohms)
FM — Mono (26 dB)
FM — Stereo (46 dB)
Sensibilitä (su 75 ohm)
FM — mono (26 dB)
FM — stereo (46 dB)
0,8 µV
28 µV
Trennschärfe FM stat./dyn. FM selectivity stat./dyn. Sälectivitift FM stat./dyn. Selettivitä FM statidin. 80/70 dB
Geräuschspannungsabstand SignaVnoise ratio Rapport signaltbruit Rapport° segnale disturbo 72 dB
Netzspannung
Model Europa
Model USA/Kanada
Model UK
Mains voltage
European model
US/Canadian model
UK model
Voltage secteur
Modele Europe
Modele USA/Canada
Modele Royaume-Uni
Tensione di rete
modello Europa
modello Stati UnitVCanada
modello GB
220 V/50 Hz
120 V/60 Hz
240 V/50 Hz
Maße
(Breite
X
Höhe x Tiefe)
Dimensions
(width x height
X
depth)
Dimensions
(largeur
X
hauteur x profondeur)
Dirnensloni
(larghezza
X
altezza x profonditä) 440
X 92 X
303 mm
Dual GmbH •
Postfach 1144 • 7742 St. Georgen/Schwarzwald
921 619 0491
Copyright by Dual
