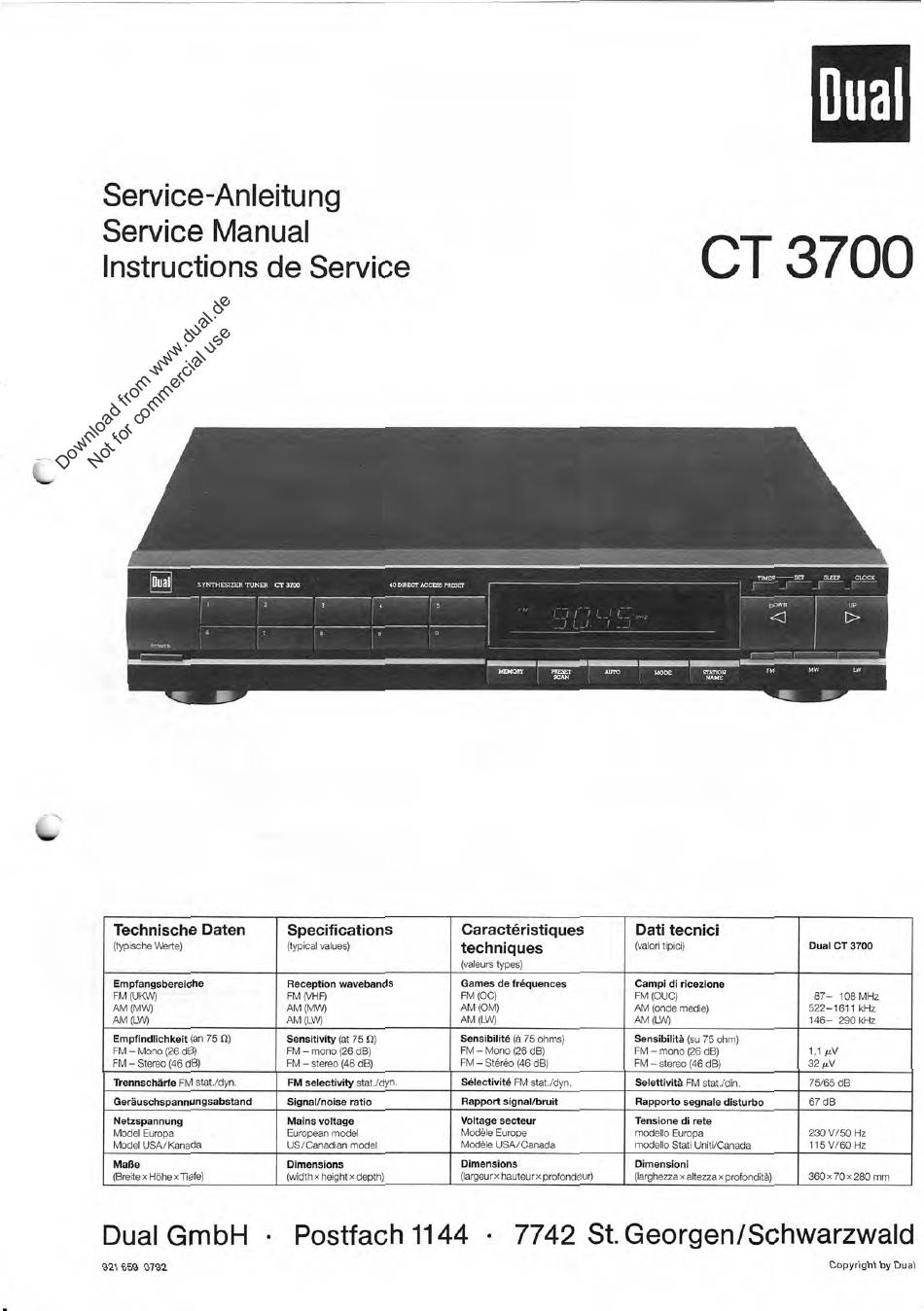

Dual CT 3700 Service Manual

Service-Anleitung
Service Manual
lnstructions de Service
Dual

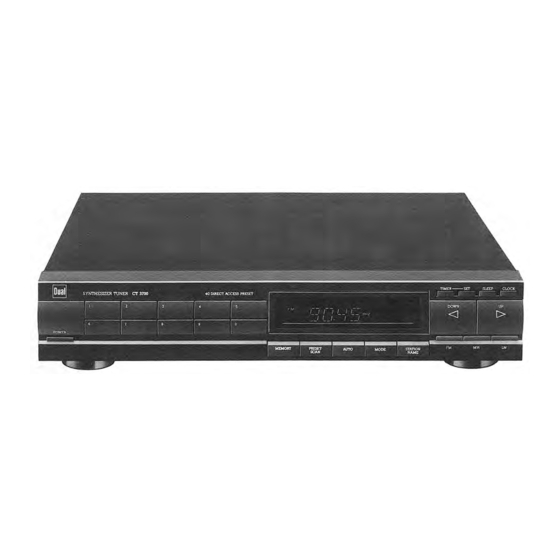

CT 3700
Technische Daten
(typische Werte)
Specifications
(typical values)
Caracteristiques
techniques
(valeurs types)
Dati tecnici
(valon tipici) Dual CT 3700
Empfangsbereiche
FM (UKW)
AM (MW)
AM (LW)
Reception wavebands
FM (VHF)
AM (MW)
AM (LW)
Garnes de freguences
FM (0C)
AM (0M)
AM (13N)
Campi di ricezione
FM (OUC)
AM (onde medie)
AM (LW)
87— 108 MHz
522-1611 kHz
146— 290 kHz
Empfindlichkeit (an 75 St)
FM — Mono (26 dB)
FM — Stereo (46 dB)
Sensitivity (at 75 11)
FM — mono (26 dB)
FM — stereo (46 dB)
Sensibilitä (ä 75 ohms)
FM — Mono (26 dB)
FM — Stereo (46 dB)
Sensibilitä (su 75 ohm)
FM — mono (26 dB)
FM — stereo (46 dB)
1,1 µV
32 µV
Trennschärfe FM stat./dyn. FM selectivity stat./dyn. Sälectivitä FM stat./dyn. Selettivitä FM stat./din.
75/65 dB
Geräuschspannungsabstand SignaVnoise ratio Rapport signal/bruit Rapporto segnale disturbo
67 dB
Netzspannung
Model Europa
Model USA/Kanada
Mains voltage
European model
US/Canadian model
Voltage secteur
Modele Europe
Modele USA/Canada
Tensione di rete
modello Europa
modello Statt UnitVCanada
230 V/50 Hz
115 V/60 Hz
Maße
(Breite x Höhe x Tiefe)
Dimensions
(width x height xdepth)
Dimensions
(largeurx hauteurx profondeur)
Dimensioni
(larghezza x altezza x profonditä) 360 x70 x 280 mm
Dual GmbH • Postfach 1144 • 7742 St. Georgen/Schwarzwald
921 659 0792
Copyright by Dual
