Introduction
Feature
Line pull:
907 kg / 2,000 lb wire rope first layer
Wire rope:
4 mm x 15.2 m (5/32" x 50') synthetic rope
Mechanical spring applied and permanent magnet motor
Brake:
dynamic brakes together
Clutch:
Turn the shifter for rapid wire rope payout
Control:
Handlebar rocker switch to power the winch
Unpacking
．Winch assembly.............................................................. 1 pc
．Handlebar rocker switch kit ............................................... 1 pc
．Hawse fairlead ................................................................ 1 pc
．Synthetic rope w/hook ...................................................... 1 pc
． Contactor pack ................................................................ 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part
Installation
Before using the winch, make sure all electrical
components have no corrosion or damaged; the
environment should be clear and dry.

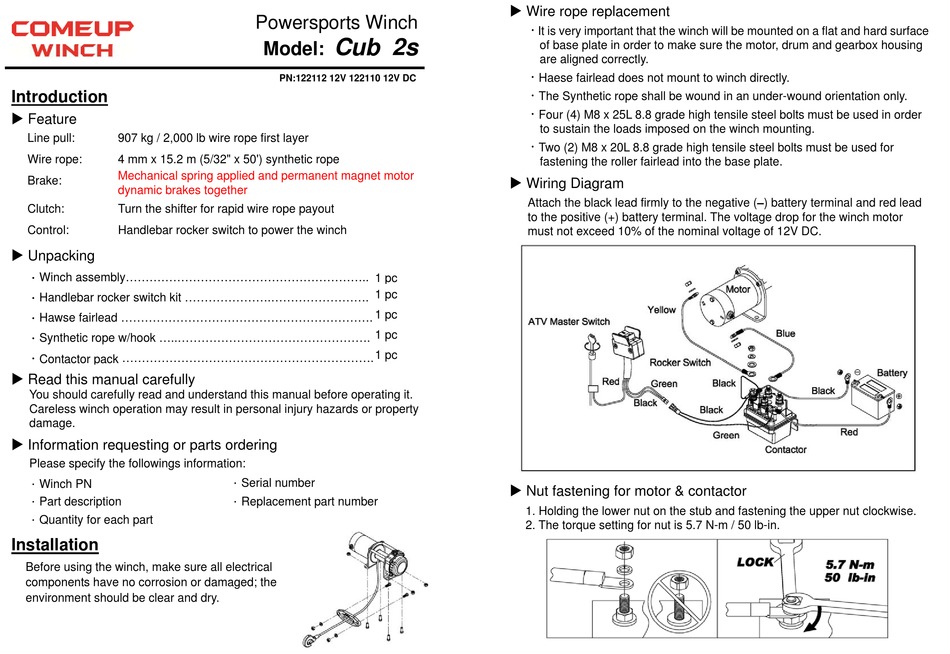

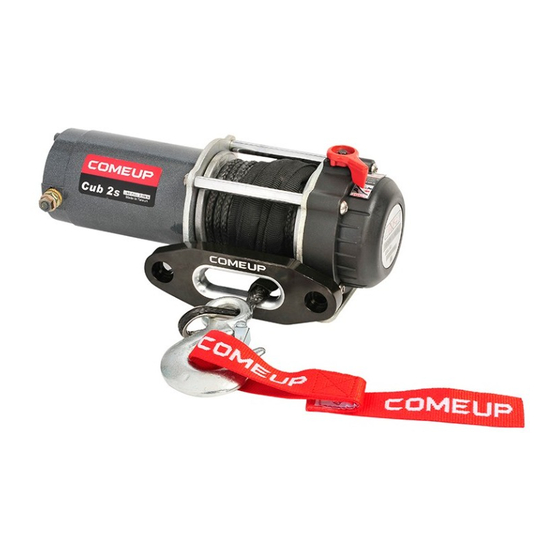

Powersports Winch
Cub 2s
Model:
PN:122112 12V 122110 12V DC
．Serial number
．Replacement part number
Wire rope replacement
． It is very important that the winch will be mounted on a flat and hard surface
of base plate in order to make sure the motor, drum and gearbox housing
are aligned correctly.
． Haese fairlead does not mount to winch directly.
． The Synthetic rope shall be wound in an under-wound orientation only.
． Four (4) M8 x 25L 8.8 grade high tensile steel bolts must be used in order
to sustain the loads imposed on the winch mounting.
． Two (2) M8 x 20L 8.8 grade high tensile steel bolts must be used for
fastening the roller fairlead into the base plate.
Wiring Diagram
Attach the black lead firmly to the negative (–) battery terminal and red lead
to the positive (+) battery terminal. The voltage drop for the winch motor
must not exceed 10% of the nominal voltage of 12V DC.
Nut fastening for motor & contactor
1. Holding the lower nut on the stub and fastening the upper nut clockwise.
2. The torque setting for nut is 5.7 N-m / 50 lb-in.
