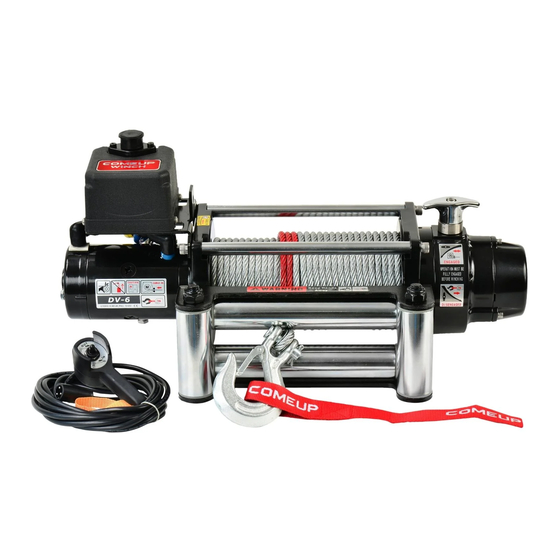

Comeup Winch DV-6 Quick Start Manual

Introduction

 Feature
2,722 kg / 6,000 lb wire rope first layer
Line pull:
Wire rope: 7.1 mm × 30.5 m (9/32" × 100') galvanized aircraft A7 × 19
Brake: Patented cone brake holds full load
Clutch: Turn the T-handle for rapid wire rope payout
Control: Handheld pendant switch powers the winch
 Unpacking
．Winch assembly.................................................................... 1 pc
．Control box ............................................................................... 1 pc
．Remote control..................................................................... 1 pc
．Wire rope with clevis hook........................................................ 1 pc
．Roller fairlead....................................................................... 1 pc
．1.8 m ( 6' ) 6 gauge battery lead............................................... 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
． Winch PN
． Part description
． Quantity for each part

Installation

Before using the winch, make sure all electrical
components have no corrosion or damaged; the
environment should be clear and dry.
 Winch and roller fairlead mountings
． It is very important that the winch will be mounted on a flat
and hard surface of mounting channel in order to make
Self-Recovery Winch
DV-6
Model:
PN: 854760 854767
． Serial number
． Replacement part number
sure the motor, drum and gearbox housing are aligned correctly.
． Roller fairlead does not mount to winch directly.
． The wire rope shall be wound in an under-wound orientation only.
． Four (4) M10 x 1.50 pitch 10.9 grade high tensile steel bolts must be used in
order to sustain the loads imposed on the winch mounting.
． Two (2) M10 x 1.50 pitch 10.9 grade high tensile steel bolts must be used
for fastening the roller fairlead into the mounting channel.
 Wiring Diagram
•Connect control ground, and cable A/F1/F2 to the motor.
•Attach the ground lead firmly to the negative (–) battery terminal and power
lead to the positive (+) battery terminal. The voltage drop for the winch
motor must not exceed 10% of the nominal voltage of 12V DC.
 Nut fastening for motor & contactor
1. Holding the lower nut on the stub and fastening the upper nut clockwise.
2. The torque setting for nut is 14 N-m/124 lb-in.
