6-3.

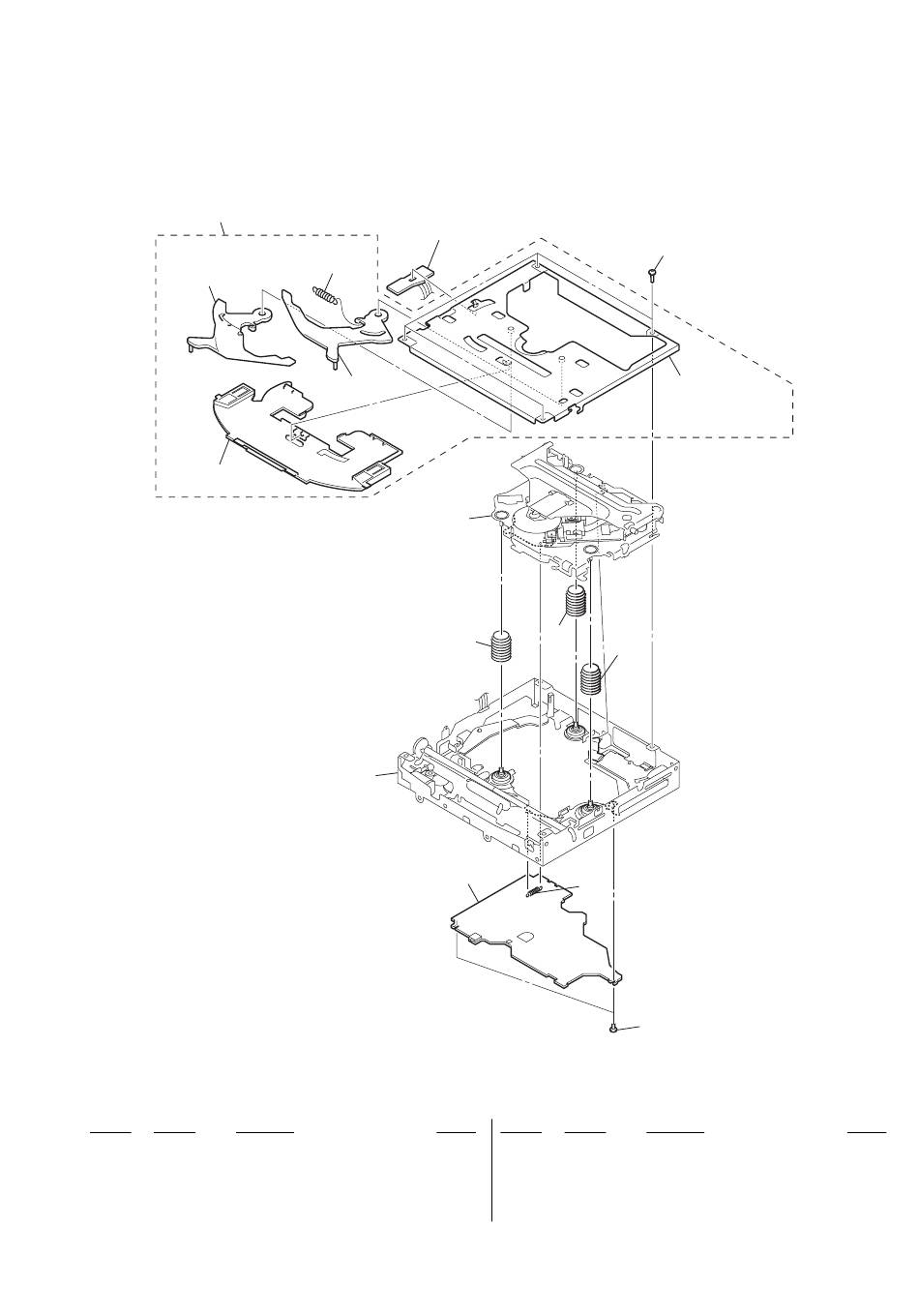

DVD MECHANISM DECK SECTION-1
(MG-612-187)
101
108
not supplied
DVD mechanism deck section-3
Ref. No.
Part No.
Description
101
A-1078-351-A CHASSIS (T) SUB ASSY
102
3-253-729-01 SPRING (LTR), TENSION COIL
103
3-253-746-14 SPRING (DAMPER), COMPRESSION
104
3-253-746-03 SPRING (DAMPER), COMPRESSION
105
2-188-954-01 SPRING (KF), TENSION
not supplied
(SENSOR board)
102
109
DVD mechanism deck section-2
103
106
Remark
#6
104
104
105
107
Ref. No.
Part No.
Description
106
A-1079-766-A SERVO BOARD, COMPLETE
107
3-352-758-31 SCREW (M1.7X2.5), TOOTHED LOCK
108
X-2050-386-1 LEVER (L) ASSY
109
X-2050-387-1 LEVER (R) ASSY
#6
7-627-552-87 SCREW, PRECISION +P1.7X2.2
MEX-R1
not supplied
Remark
57
