Installation Instructions; Required Materials (Not Supplied); Programming The Wireless Trv System Id - heat-timer TRV Installation And Operation Manual

The Wireless TRV installation process consists of the following basic steps:
1. Programming the Wireless TRV System ID.
2. Mounting the Wireless TRV.
3. Connecting power wiring.
4. Attaching an external antenna.
5. Configuring the devices.
Required Materials (Not Supplied)
The following materials/tools are required for installation, but are not supplied:
• General tool kit (screwdrivers, wire strippers, power drill, etc.)
• 18 AWG cable (Heat‐Timer p/n 703001‐01 or equivalent #18/2 cable) – used for the 8Vac Wireless TRV input power connection
Programming the Wireless TRV System ID
For the Wireless TRV to function in a network, each TRV must communicate with another nearby TRV or MSI Hub. Each wireless
network should have a unique System ID that enables all wireless components with that ID to communicate with each other.
1. Open the Wireless TRV.

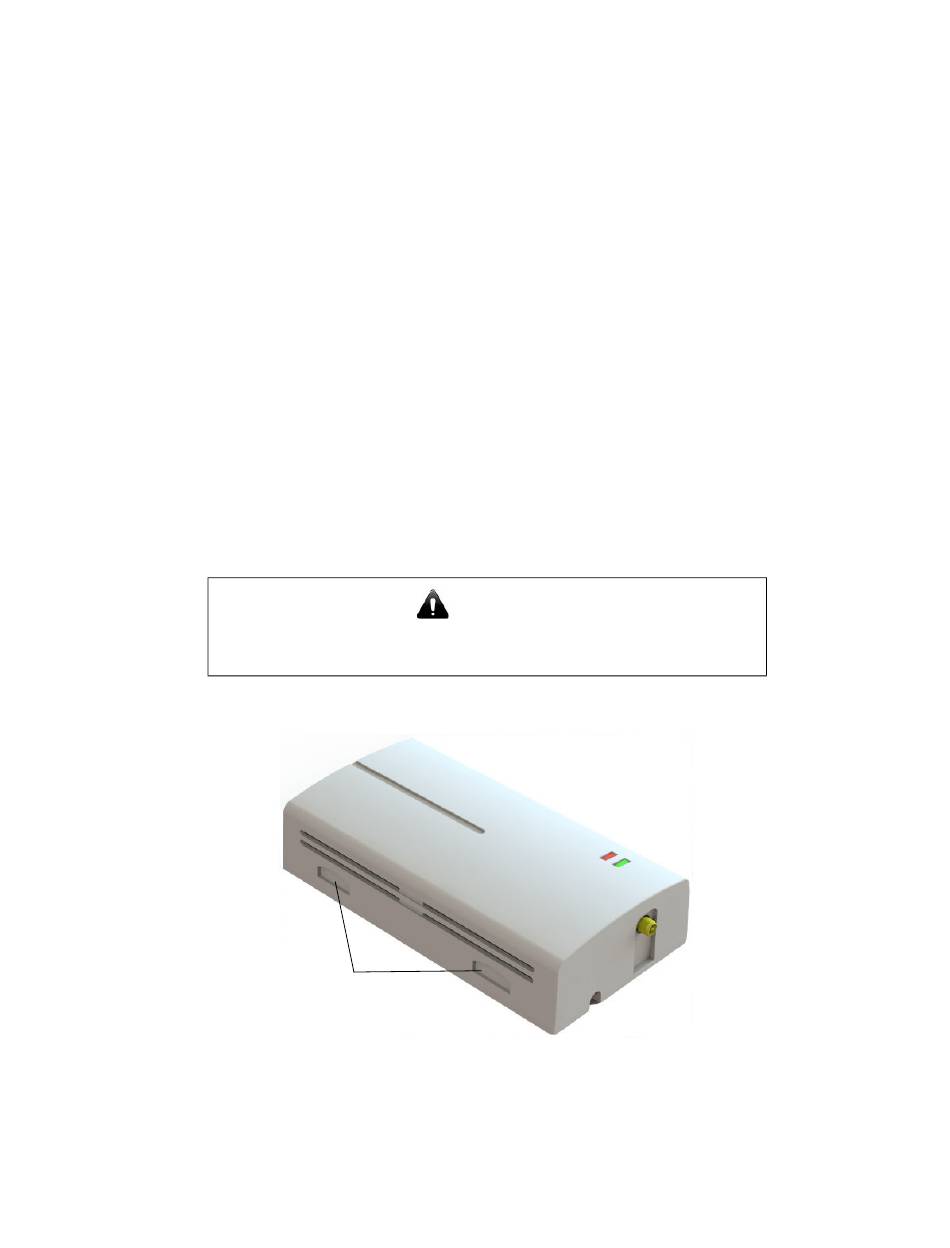

a. Locate the two rectangular locking‐tab slots (1) on the bottom of the Wireless TRV cover.
b. Gently press on the rectangular locking‐tab slots so the locking tabs release, and then remove the cover.
Heat‐Timer Corp.
Installation Instructions
Do not use excessive force when removing the Wireless TRV cover or damage
to the equipment will occur.
1
CAUTION
Installation Instructions 5
059052-00 Rev. F
