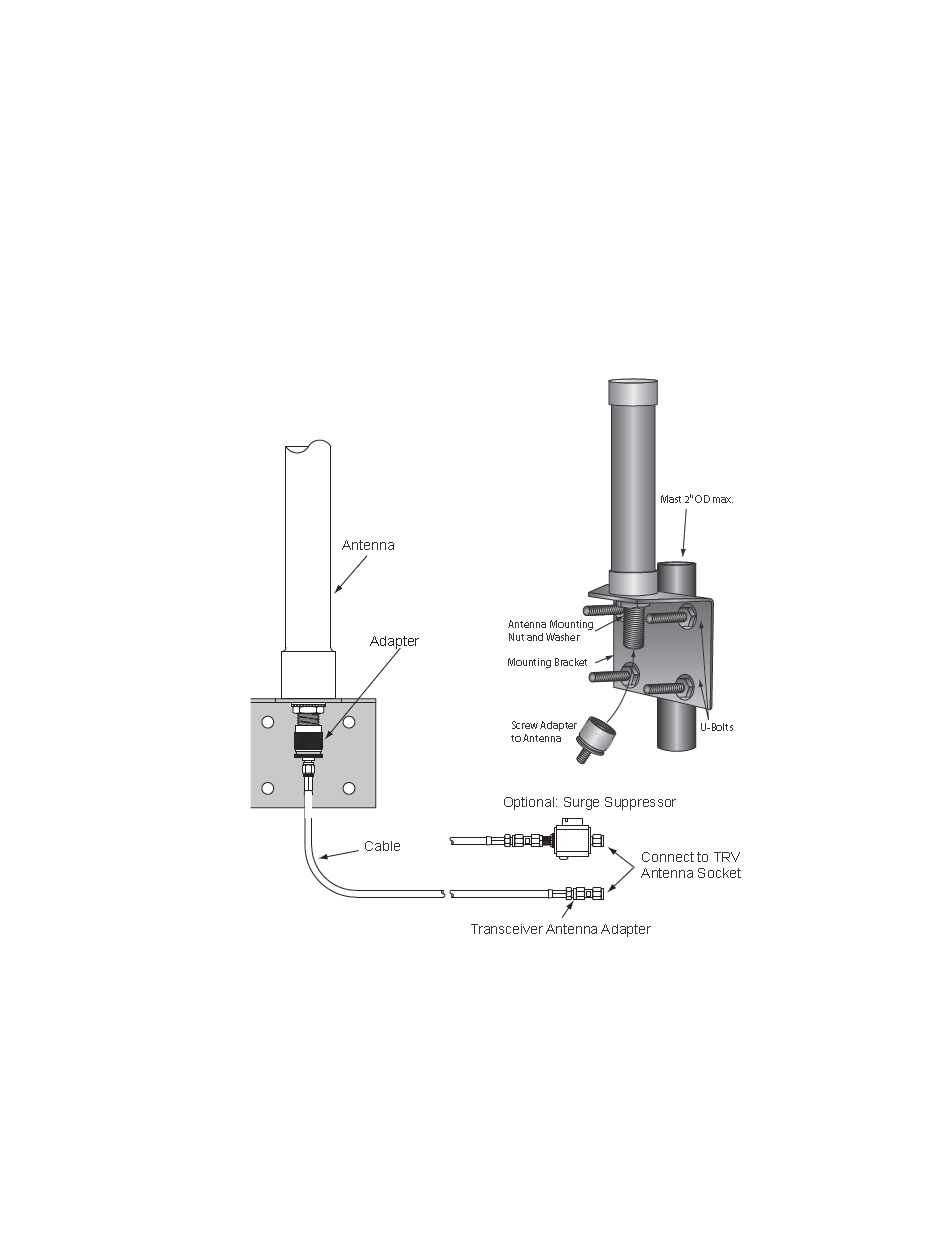

Installing an Outdoor Antenna (Optional)
1. Find an appropriate mounting location to maximize the signal reception for the Outdoor Antenna.
NOTE: To achieve the best reception, all antennas of all wireless devices must be parallel to each other.
2. Securely mount the antenna mast (2" [5cm] O.D. pipe) in the desired location. The mast must be mounted vertically.
3. Place the threaded portion of the antenna base through the hole located in the mounting bracket. Secure the antenna to the
mounting bracket using the supplied washer and mounting nut.
4. Attach the mounting bracket to the antenna mast using two U‐bolts and four washers and hex nuts. Ensure the tightened so
that the mounting plate does not move.
5. Screw the adapter onto the threaded portion of the antenna base.
6. Attach one end of the antenna cable to the antenna adapter, and then connect the other end of the cable to the external
antenna connector on the Wireless TRV. Note that an optional surge suppressor can be attached to the end of the cable before
connecting to the TRV Antenna Socket.
7. Continue with "Performing the ICMS Configuration" on page 11.
Performing the ICMS Configuration
After the Wireless TRVs have been configured and installed, they must be configured in ICMS.
1. Write the location of the Wireless TRV on the ID card provided with the device (for example, Apt. 5A).
2. Access www.HTControls.com and log in.
3. Configure ICMS with the applicable Wireless TRV installation data (device ID, name, type, and location).
4. After the ICMS configuration is complete, log out of ICMS.
