10 Wireless Transceiver Installation and Operation Manual
Attaching an External Antenna
The Wireless TRV is supplied with a rubberized external antenna that is intended only for indoor use. The antenna can be rotated
around a swivel‐point to change its direction in order to achieve the best possible signal strength.
For installations where data transmission covers a large distance, such as between buildings, install and connect an Outdoor Antenna
to the Wireless TRV. Refer to "Installing an Outdoor Antenna (Optional)" on page 11.
To cover very large distances, use multiple Outdoor Antennas, each connected to a wireless MSI Hub and transceiver.
NOTE: To achieve the best reception, the antennas of all wireless devices need to be parallel to each other.
Installing an Indoor Antenna
The Indoor Antenna must be mounted indoors. Mounting the antenna outdoors may result in damage to the equipment.

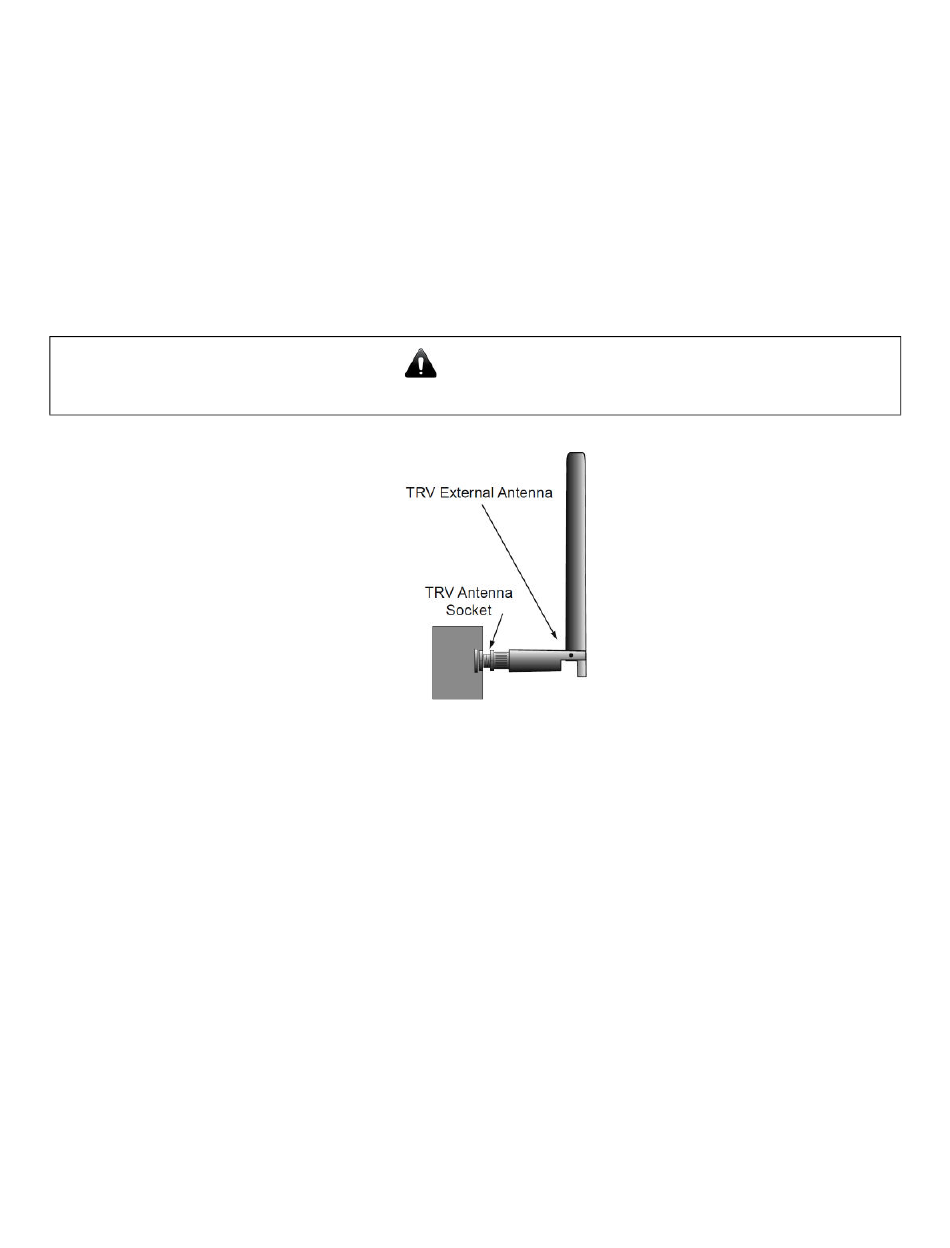

1. Screw the antenna onto the external antenna connector on the Wireless TRV.
2. Continue with "Performing the ICMS Configuration" on page 11.
059052-00 Rev. F
