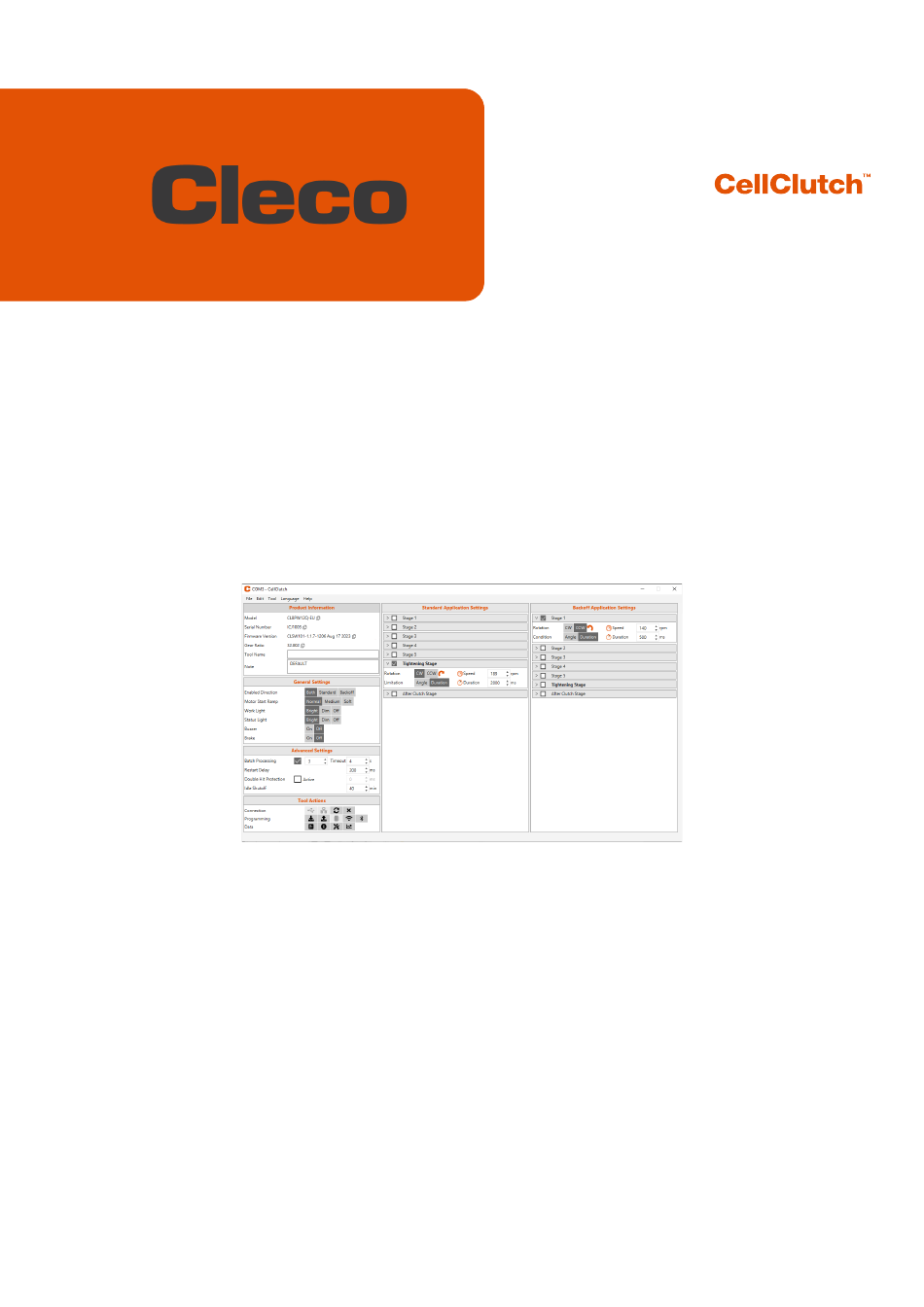

  • Page 1 Programming Manual P2570PM-EN REV K | 2023-12 CLPC100 CLBA & CLBP...
  • Page 2 Copyright © 2023 Apex Brands, Inc. All rights reserved. Disclaimer Apex Tool Group reserves the right to modify, supplement, or improve this document or the product with- out prior notice. Trademark Cleco is a registered trademark of Apex Brands, Inc.

  • Page 3: Table Of Contents

    Configuring RF settings ....................21 Configuring Bluetooth settings ..................23 Changing Settings ......................24 Performing A Firmware Update ..................25 Troubleshooting ................. 26 Error codes ........................26 Tool ..........................28 Software ........................30 Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 4: About This Document

    Indicates Filenames and paths, e.g., setup.exe. Indicates lists, level 1. • Indicates lists, level 2. Indicates options. Indicates results.  1. (...) Indicates action steps. 2. (...) ► Indicates single action steps. P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 5: Product Description

    WLAN Dual band: 2,4 GHz/5 GHz Standard IEEE 802.11 a/b/g/n CellClutch tool Integrated access point mPro400GCD CellClutch tool mPro200GC-AP access point Fig. 2-1: System layout with mPro200GC-AP Fig. 2-2: System layout with mPro400GCD Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 6: Tool Data

    The tools work in the license-free 2.4 GHz/5 GHz ISM band. Band Channel Frequency in World Europe USA/ China Canada World 2.4 GHz 2.412 IEEE802.11b/g 2.417 2.422 2.427 2.432 2.437 2.442 2.447 2.452 2.457 2.462 2.467 – – 2.472 – – P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 7: Cell Planning For Access Point

    To minimize interference between different radio cells that share the same RF channel, it is advisable to physically separate them. Note that for multistory buildings, it is necessary to consider both higher and lower floors. Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 8: Bluetooth Communication

    SSID 6 SSID 7 SSID 8 SSID 9 Fig. 2-4: Idealized radio cells = Range of use of the tools, channel 60 Bluetooth communication Tool Standard CLBA & CLBP Bluetooth 4.2 P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 9: Initial Operation

    Connect the tool to the laptop/PC via a Micro-B USB cable. Fig. 3-1: Remove battery Fig. 3-2: Connect Micro-B USB cable Determine the serial port (COM port) of the tool in the device manager of the laptop/PC. Fig. 3-3: Device Manager Apex Tool Group P2570PM | REV K | 2023-12...
  • Page 10 Start the CLPC100 PC software. Fig. 3-4: PC software Select under Tool Actions the COM port in the drop-down menu. Details see chapter 4.2.4 Tool Actions, page 15. Confirm the input with <OK>. P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 11: Operation

    Fig. 4-1: User interface with exemplary settings The individual areas of the user interface are described below. 4.2.1 Product Information The Product Information area displays information about the tool. Fig. 4-2: Product Information Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 12: General Settings

    Work Light Setting for the brightness of the work light. Bright: The work light is bright. • Dim: The work light is dim. • Off: The work light is off. • P2570PM | REV K | 2023-12 Apex Tool Group...
  • Page 13 Maintenance alarm ▬ ▬ ▬ ▬ Until the end of the event ▬ Battery low status ▬ ▬ Until the end of the event ▬ ▬ Search WLAN/Bluetooth ▬ ▬ Until connected Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 14: Advanced Settings

    0 ms – seconds can be defined. If the clutch is triggered again 32,000 ms within this time, a NOK error is generated. In this way, screws are detected that are already tightened. P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 15: Tool Actions

    Read Settings: If the check box is activated, the settings off the tool are auto- • matically displayed in the user interface after a connection has been estab- lished. If the check box is deactivated, the current settings of the user inter- face is retained. Apex Tool Group P2570PM | REV K | 2023-12...
  • Page 16 Settings for the WLAN configuration of the tool, see chapter 4.3 Configuring RF settings, page 21. Settings for the Bluetooth configuration of the tool, see chapter 4.4 Configuring Bluetooth settings, page 23. P2570PM | REV K | 2023-12 Apex Tool Group...
  • Page 17 Batch Timeout: The Batch Processing was aborted be- • cause the timeout expired. Batch Counter Number of the single rundown of a batch. Batch Size Number of rundowns belonging to a batch. Apex Tool Group P2570PM | REV K | 2023-12...
  • Page 18 Calibration Warning (Clutch Activations): Number of rundowns after which • the warning message for the next calibration of the clutch should be dis- played. Value range: 0 – 250 000. Fig. 4-10: Service Information P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 19: Application Settings

    Angle/Dura- tored. tion With angle monitoring, the reached angle is sent. • The angle is not monitored during time-control. As a • result, the angle "0" is sent to the controller. Apex Tool Group P2570PM | REV K | 2023-12...
  • Page 20 . The stage is com- 30° – 65,535° pleted when the configured value is reached or the start trigger is released. Duration: 50 ms – 32,000 ms P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 21: Menu Bar

    5th position of the name and ends with a country abbreviation: • EU: Europe • NA: North America • CN: China 00: Rest of the world • Example: Tool model without WLAN Tool model with WLAN CLBP04Q CLBPW04Q-EU Apex Tool Group P2570PM | REV K | 2023-12...
  • Page 22 Enter the network key. The network key must be identical to the access point. User Enter a username. Password Enter a password. Regulatory Domain Specifies country-specific channel settings. This setting is stored in the tool. P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 23: Configuring Bluetooth Settings

    Bluetooth-compatible CellClutch tools in conjunction with a controller of the mPro200GC(-AP) series. The Model name of Bluetooth-capable tools has a "W" in the 5th position of the name and ends with a country abbreviation. Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 24: Changing Settings

    The connected tool is displayed in the header and in the Product Information area.  Make settings in the PC software. Changed settings are marked with an orange asterisk.  Die ausgewählten Optionen sind dunkelgrau dargestellt. Unselected options are light gray.  P2570PM | REV K | 2023-12 Apex Tool Group...

  • Page 25: Performing A Firmware Update

    The firmware update is finished when the progress bar has reached 100%.  To program the tool again after the firmware update, disconnect and reconnect the Micro-B USB cable without pressing the start button. Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 26: Troubleshooting

    Center. An overrun in the receive Communication is disrupted. ► Check USB port. buffer has occurred. When communicating with the tool, the data was sent too fast and cannot be processed. P2570PM | REV K | 2023-12 Apex Tool Group...
  • Page 27 Insulation of the motor phase connections. Servo is defective. Current offset error. Error in the calibration of the ► Send the tool to a Sales & current measurement. Service Center for repair. Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 28: Tool

    Tool not recognized. Software is incorrect. ► Check CLPC100 laptop/PC software. Connection to laptop/PC ► Check USB cable. is not available. ► Check PC driver. Tool is defective. ► Change tool. P2570PM | REV K | 2023-12 Apex Tool Group...
  • Page 29 Battery voltage is too ► Change battery. low. Warning that the next ► Send the tool to a Sales & Service Center maintenance is due. for maintenance. Apex Tool Group P2570PM | REV K | 2023-12...

  • Page 30: Software

    No model number is stored ► Send the tool to a Sales & Service Center, area, Not available is dis- on the tool. see reverse. played. No serial number is stored on the tool. P2570PM | REV K | 2023-12 Apex Tool Group...
  • Page 32 Fax: +1 (803) 358-7681 Fax: +52 (800) 685 5560 EUROPE | MIDDLE EAST | AFRICA FRANCE GERMANY HUNGARY Apex Tool Group SAS Apex Tool Group GmbH Apex Tool Group 25 Avenue Maurice Chevalier - ZI Industriestraße 1 Hungária Kft. 77330 Ozoir-La-Ferrière 73463 Westhausen Platánfa u.
