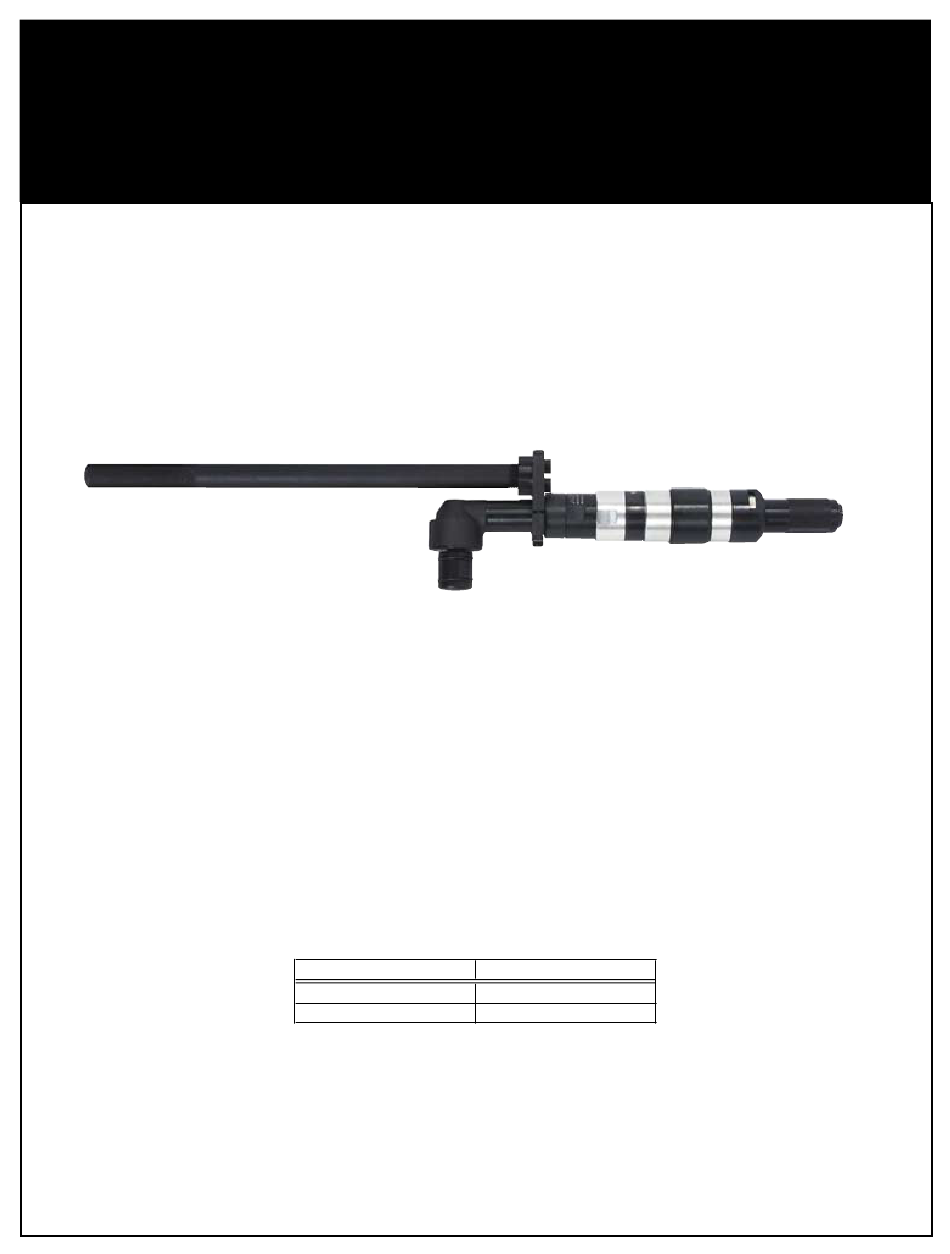

- Page 1 Operating & Service Manual Airetool ® 90020-IM 05/25/2011 2055-R Series Airetrol Rolling Motor Model Number Part Number (Order) 2055-R-90 2055-R-190 For additional product information visit our website at http://www.apextoolgroup.com...
-
Page 2: Safety Recommendations
Safety Recommendations For your safety and the safety of others, read and under- stand the safety recommendations and operating instruc- tions before operating an Airetrol. When using right angle Airetrols, be sure the throttle is positioned relative to the angle head so that the throttle will not become wedged against an adjacent object in the “ON”... - Page 3 Safety Recommendations ADDITIONAL SAFETY RECOMMENDATIONS FOR USE OF RIGHT ANGLE AIRETROLS * Tasks should be performed in such manner that the wrists are maintained in a neutral position, which is not flexed, hyperextended, or turned side to side. * Stressful postures should be avoided and can be controlled through tool selection and work location.
- Page 4 OPERATING INSTRUCTIONS The 2055 Clutch Type Airetrol is designed to operate on LUBRICATION 90 psig maximum air pressure but does not depend on controlled air pressure to maintain accurate torque. Accu- An automatic in-line filter-lubricator is recommended as it rate torque is achieved by setting the clutch to the desired increases tool life and keeps the tool in sustained opera- torque on the application.
-
Page 5: Gear Train
GEAR TRAIN The complete gear train may be slipped out of the rear of To assemble the motor, install the rear rotor bearing into the gear case. By driving the idler gear pins out of the rear the rear bearing plate. Make sure the outer bearing race is of the spiders, the idler gears can be removed from the firmly seated in the bearing plate. - Page 6 P A R T S L I S T For Right Angle Head ITEM # PART NO. DESCRIPTION QUAN. 882661 Spindle Needle Bearing 867507 "T" Right Angle Head 382633 Spindle Protector 867521 * Housing Lock Nut 867522 * Housing Clamp Ring 867546 Grease Plug 867512...
- Page 7 REACTION BAR BRACKET ASSEMBLY PARTS LIST For reaction bar bracket assembly ITEM # PART NO. DESCRIPTION QUAN. 202319 Reaction Bracket 202320 Reaction Bar Clamp 842554 5/16"-18 x 1 3/4' Socket Head Cap Screw N O T S H O W N 8566413 Handle Grip 8566412...
- Page 8 GEAR TRAINS #3 & #6 PARTS LIST For # 3 and # 6 GEAR TRAINS ITEM # PART # DESCRIPTION QUAN QUAN 864544 Gear Case 50T 203107 2nd Reduction Gear 15T (includes 3203062) 203062 2nd Reduction Gear Bearing 864671 2nd Reduction Gear Pin 203105 2nd Reduction Gear Spider 861485 1st Reduction Gear Spider 19T (includes pin) 861486 1st Reduction Gear Spider 19T (includes pin)
- Page 9 CLECOMATIC CLUTCH PARTS LIST For Clecomatic Clutch ITEM # PART # DESCRIPTION QUAN. ITEM # PART # DESCRIPTION QUAN. 867674 Drive Shaft Washer 867681 Clutch Housing 865436 Spiral Ring (includes 3864711, 867673 Ball Retainer 3864712 & 3869263) 869670 Trip Sleeve Spring 864712 Pin Spring 202056...
- Page 10 ROLL THROTTLE HANDLE ASSEMBLY ITEM # PART # DESCRIPTION QUAN. ITEM # PART # DESCRIPTION QUAN. 869933 Inlet Bushing 844077 5/16" Steel Ball 869965 Throttle Sleeve 869964 Valve Rod 622062 "O" Ring 7/8" x 1 1/16" 869659 Reversing Valve 869931 Throttle Valve Seat 619164 "O"...
-
Page 12: Sales & Service Centers
Tel: +52 (442) 211-3800 Fax: +55 15 2383260 Fax: +36 96 66 1135 Fax: +52 (442) 103-0443 Apex Tool Group, LLC Airetool 1000 Lufkin Road ® Apex, NC 27539 Phone: 919-387-0099 Fax: 919-387-2614 www.apextoolgroup.com 90020-IM/Printed in USA 05/2011/Copyright © Apex Tool Group, LLC...
