Simplicity 7100 Series Operator's Manual page 47

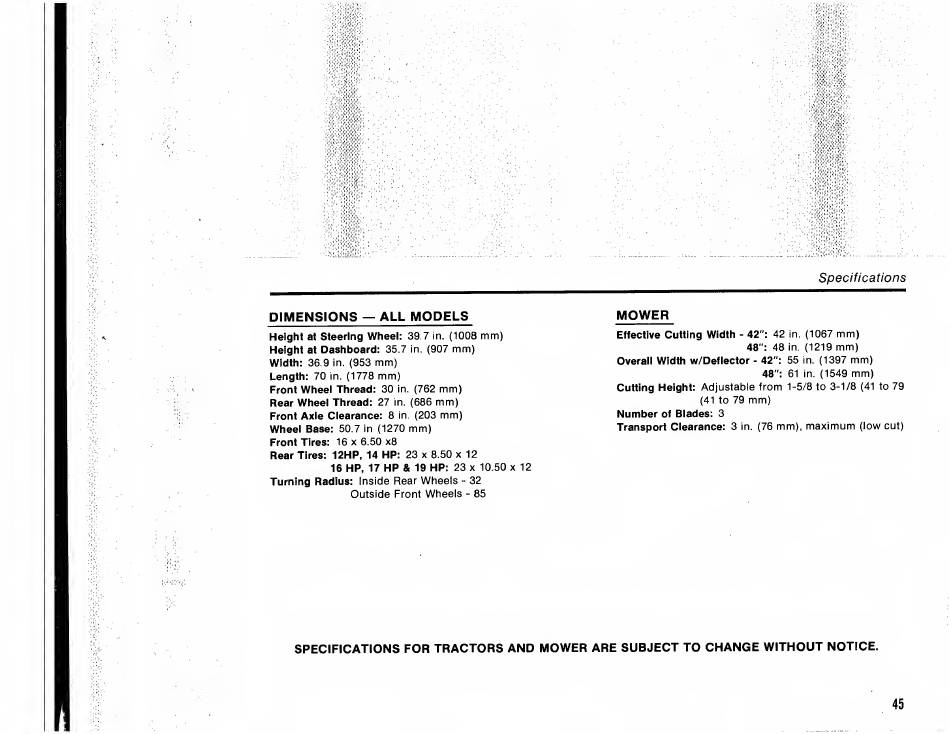

Specifications
DIMENSIONS — ALL MODELS
Height at Steering Wheel: 39.7 in. (1008 mm)
Height at Dashboard: 35.7 in. (907 mm)
Width: 36.9 in. (953 mm)
Length: 70 in. (1778 mm)
Front Wheel Thread: 30 in. (762 mm)
Rear Wheel Thread: 27 in. (686 mm)
Front Axle Clearance: 8 In. (203 mm)
Wheel Base: 50.7 in (1270 mm)
Front Tires: 16 x 6.50 x8
Rear Tires: 12HP, 14 HP: 23 x 8.50 x 12
16 HP, 17 HP & 19 HP: 23 x 10.50 x 12
Turning Radius: Inside Rear Wheels - 32
Outside Front Wheels - 85
MOWER
Effective Cutting Width - 42": 42 in. (1067 mm)
48": 48 in. (1219 mm)
Overall Width w/Deflector - 42": 55 in. (1397 mm)
48": 61 in. (1549 mm)
Cutting Height: Adjustable from 1-5/8 to 3-1/8 (41 to 79
(41 to 79 mm)
Number of Blades: 3
Transport Clearance: 3 in. (76 mm), maximum (low cut)
SPECIFICATIONS FOR TRACTORS AND MOWER ARE SUBJECT TO CHANGE WITHOUT NOTICE.
45
