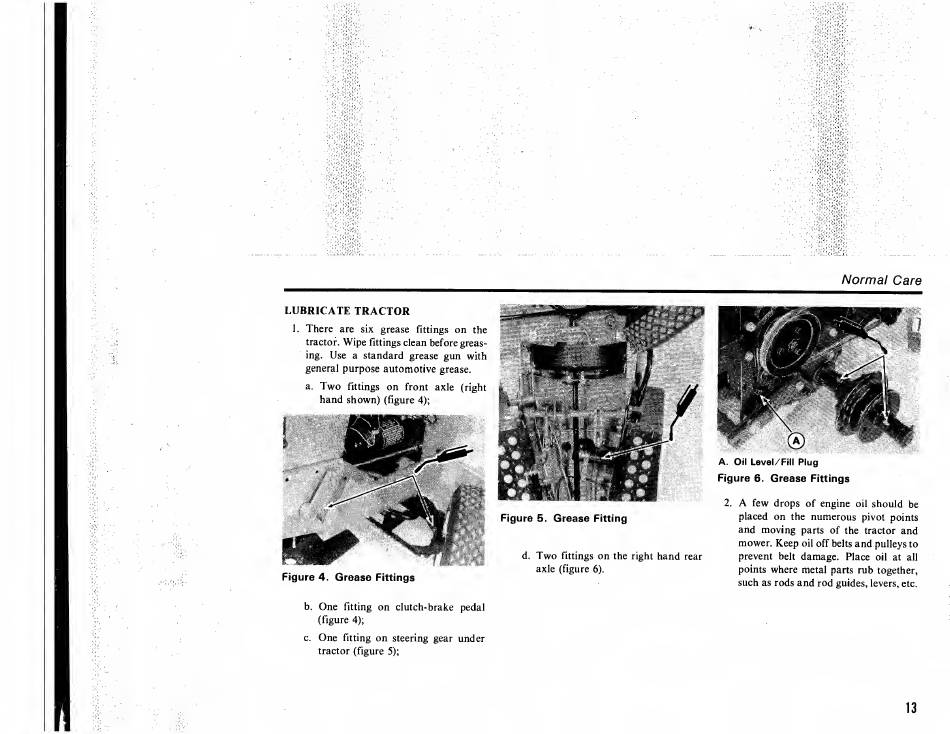

LUBRICATE TRACTOR
1. There are six grease fittings on the
tractor. Wipe fittings clean before greas¬
ing. Use a standard grease gun with
general purpose automotive grease.
a. Two fittings on front axle (right
hand shown) (figure 4);
Figure 4. Grease Fittings
b. One fitting on clutch-brake pedal
(figure 4);
c. One fitting on steering gear under
tractor (figure 5);
Normal Care
Figure 5. Grease Fitting
d. Two fittings on the right hand rear
axle (figure 6).
2. A few drops of engine oil should be
placed on the numerous pivot points
and moving parts of the tractor and
mower. Keep oil off belts and pulleys to
prevent belt damage. Place oil at all
points where metal parts rub together,
such as rods and rod guides, levers, etc.
A. Oil Level/Fill Plug
Figure 6. Grease Fittings
