A. Bolt
B. 1/8" Clearance
C. Front Belt Guard
D. Pivot Pin
E.
Lock Pin
F.
Brake Rod
G. Brake Pin
H. Clutch Rod

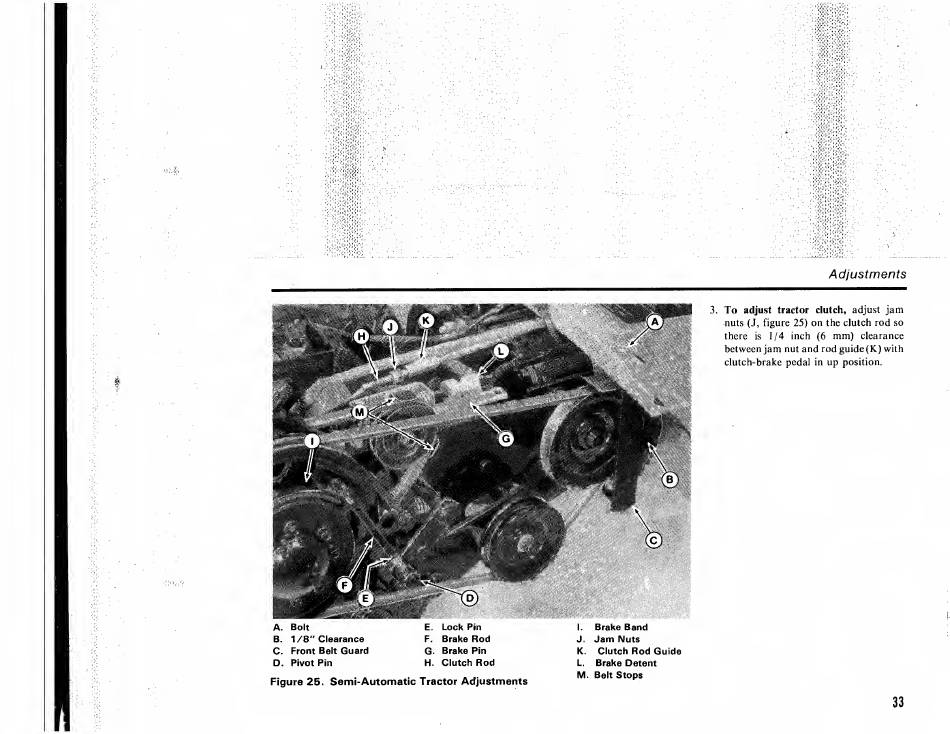

Figure 25. Semi-Automatic Tractor Adjustments
I.
Brake Band
J.
Jam Nuts
K.
Clutch Rod Guide
L.
Brake Detent
M. Belt Stops
3. To adjust tractor clutch, adjust jam
nuts (J, figure 25) on the clutch rod so
there is 1/4 inch (6 mm) clearance
between jam nut and rod guide(K) with
clutch-brake pedal in up position.
33
