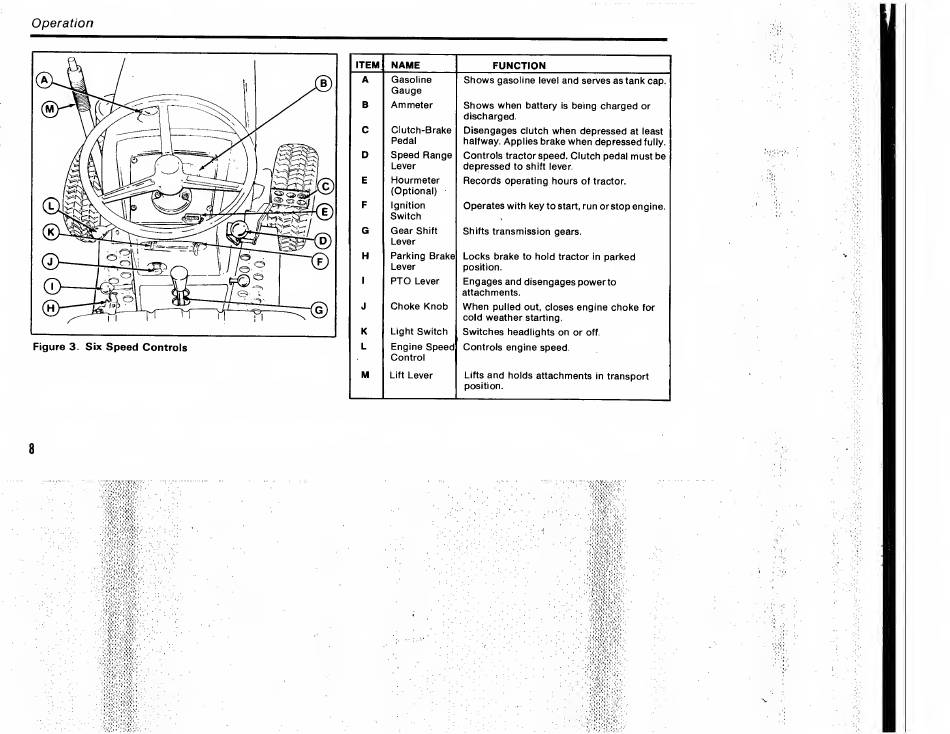

Operation
ITEM NAME
FUNCTION
A
Gasoline
Gauge
Shows gasoline level and serves as tank cap.
B Ammeter Shows when battery is being charged or
discharged.
C Clutch-Brake
Pedal
Disengages clutch when depressed at least
halfway. Applies brake when depressed fully.
D Speed Range
Lever
Controls tractor speed. Clutch pedal must be
depressed to shift lever.
E Hourmeter
(Optional)
Records operating hours of tractor.
F
Ignition
Switch
Operates with key to start, run or stop engine.
G Gear Shift
Lever
Shifts transmission gears.
H Parking Brake
Lever
Locks brake to hold tractor in parked
position.
1 PTO Lever
Engages and disengages power to
attachments.
J Choke Knob When pulled out, closes engine choke for
cold weather starting.
K Light Switch Switches headlights on or off.
L Engine Speed
Control
Controls engine speed.
M
Lift Lever
Lifts and holds attachments in transport
position.
8
