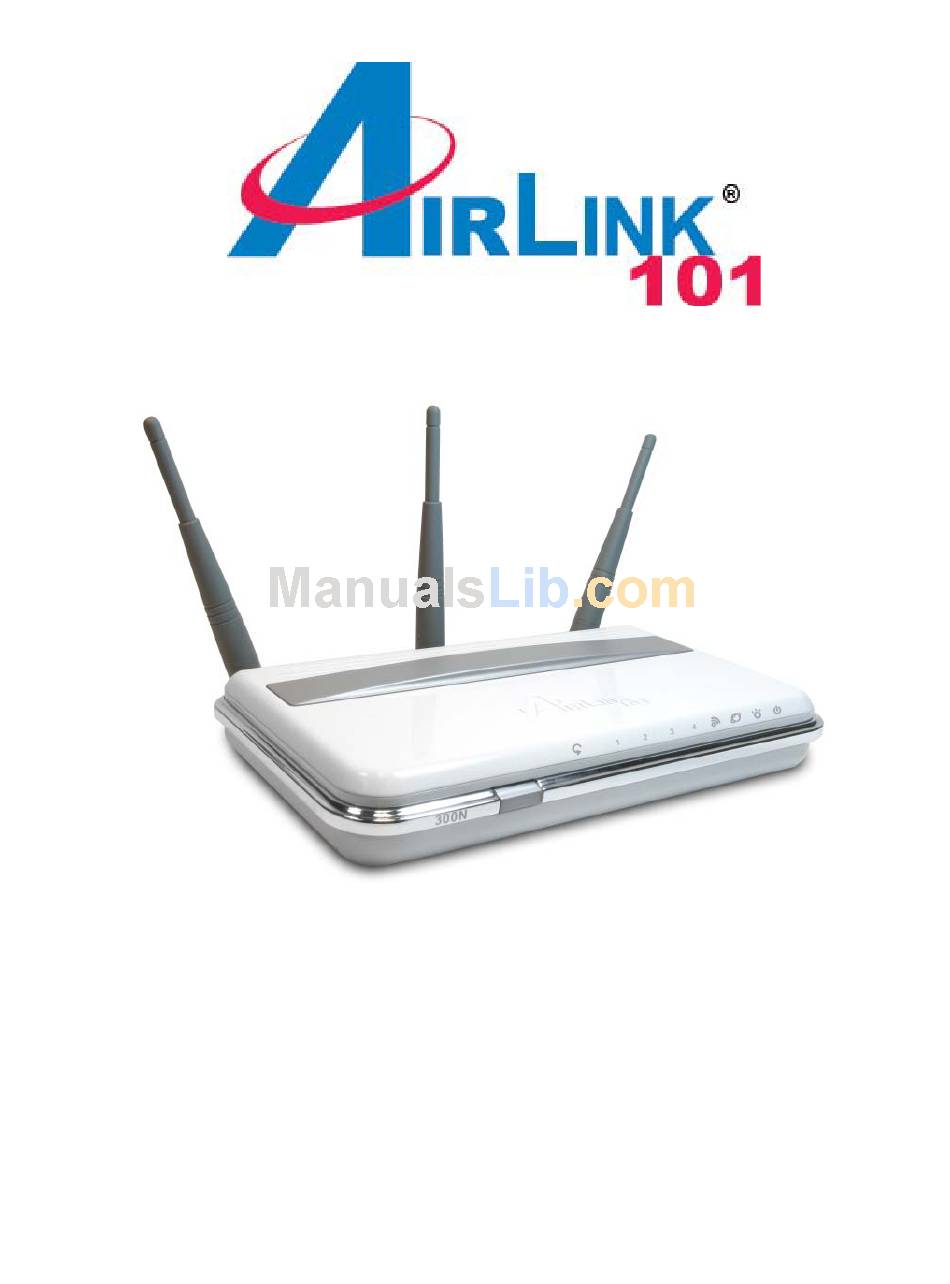

- Page 1 300N Draft 802.11n Wireless Router Model # AR680W Quick Installation Guide Ver. 1A...
-
Page 2: Connecting The Router
Section 1 Section 1 This Quick Installation Guide only provides the basic instructions. For more detailed information, please refer to the User’s Manual on the supplied CD. Connecting the Router Note: Prior to connecting the router, be sure to power off your computer, DSL/Cable modem, and the router. -
Page 3: Verifying Connection To The Router
Section 2 Verifying Connection to the Router Step 1 Go to Start, Run, type command (for Windows 95/98/ME) or cmd (for Windows 2000/XP) and click OK. You will see the command prompt as below. Step 2 Type ping 192.168.1.1 and press Enter. You should get four reply responses back. Step 3 If you get Request timed out, or Destination host unreachable, double-check the... - Page 4 Step 5 Type ipconfig/renew and press Enter. You should get an IP address of 192.168.1.x (where x is a number between 2 - 254). Proceed to Section 3, Configuring the Router. If you don’t get an IP address, reset the router by holding in the reset button on the back of the router for 10 seconds while it is ON and try ipconfig/renew again.
-
Page 5: Configuring The Router
Step 8 After your IP address is released, click 192.168.1.x (where x is a number between 2 - 254). If you don’t get an IP address, reset the router by holding in the reset button on the back of the router for 10 seconds while it is ON and try Renew again. -
Page 6: Cable Modem
Step 3 Select the proper region, North America or South America, and click Warning: Incorrectly selecting the current region of operation may result in illegal operation and may cause harmful interference to other systems. You can refer to the user manual on the provided CD for more details. -
Page 7: Dsl
For DSL users, follow the steps below to configure the router. Step 1 Select PPPoE from the drop-down menu. Step 2 Enter your username and password provided by your ISP. Note: Depending on the ISP, you may need to include the domain name with your username. Example: username@sbcglobal.net... -
Page 8: Connecting Router Wirelessly
Step 3 Click Apply and OK to save the setting. Go to the Status tab, Internet connection section to verify that you are getting valid IP address information. If you have trouble connecting to the Internet, please go through the Troubleshooting section at the end of this installation guide. -
Page 9: Wi-Fi Protected Setup
Go to the computer with the Airlink101 300N wireless adapter and open the Wireless Monitor. Click on the WPS Connect button. Note: If you do not see the WPS Connect button, you can go to www.airlink101.com to download the latest utility and driver. - Page 10 Step 2 Choose your configuration method, either Push Button or Pin Code, and click Next. Step 3a Write down the PIN if you choose Pin Code method and click Next. Step 3b If you choose Push Button method, click on the Wi-Fi Protected Setup button.
- Page 11 Step 4 Go to your routers configuration screen and click on Wireless. Then click Wireless security. Make sure that the Wi-Fi Protected Setup Enable box is checked. Then click the Add Wireless Device Wizard button. If you are using Pin Code method, enter the Pin Code in the Pin Number box and click connect.
- Page 12 After a few moments both the router configuration screen and the adapter configuration screen should show a message telling you that you are connected. Step 5 Click Finish on the adapter screen. Step 6 Click Continue on the router configuration screen.
-
Page 13: Troubleshooting
Section 6 Troubleshooting If you have trouble connecting to the Internet, try the following steps. Step 1 Power off the Cable/DSL modem, router, and computer and wait for Step 2 Turn on the Cable/DSL modem and wait for the lights on the modem to settle down. Step 3 Turn on the router and wait for the lights on the router to settle down. -
Page 14: Technical Support
(e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Copyright ©2007 E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Web Site: www.airlink101.com...
