Airlink101 AR695W Quick Installation Manual

Wireless n 300 gigabit green router
Hide thumbs Also See for AR695W:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version

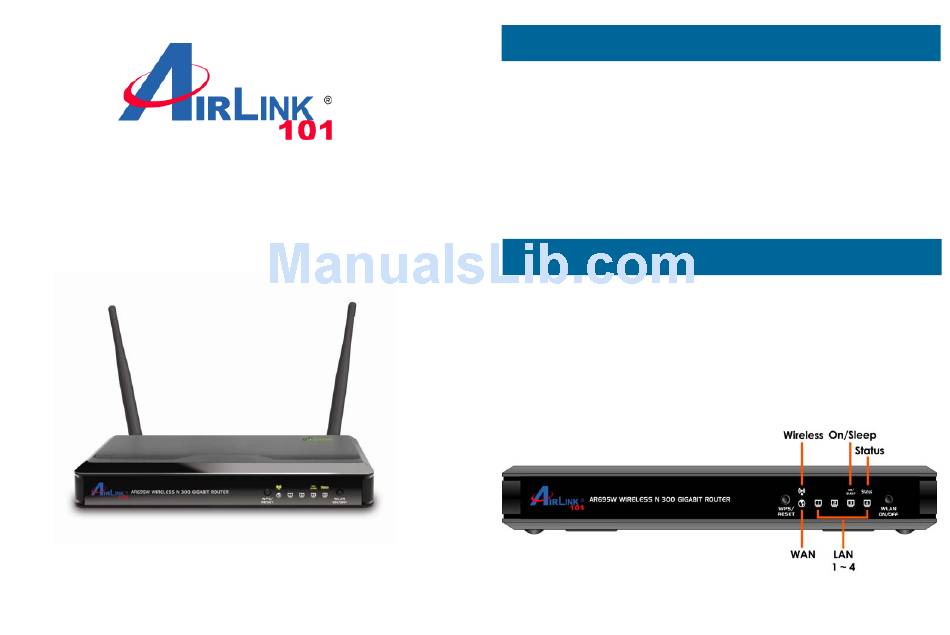

Quick Installation Guide

Wireless N 300 Gigabit Green Router
Model # AR695W
Ver. 1A
Package Contents
Before you begin the installation, please check the items in the package:
•
Wireless N 300 Gigabit Green Router
•
Two Antennas
•
Power Adapter
•
Setup CD
•
Quick Installation Guide
•
Ethernet Cable
Section 1
This Quick Installation Guide only provides basic instructions. For detailed
information on using this product, please refer to the User's Manual on the
supplied CD.

Hardware Introduction

A. Front Panel
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR695W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airlink101 AR695W

Summary of Contents for Airlink101 AR695W

  • Page 1: Quick Installation Guide

    Quick Installation Guide Wireless N 300 Gigabit Green Router Model # AR695W Ver. 1A Package Contents Before you begin the installation, please check the items in the package: • Wireless N 300 Gigabit Green Router • Two Antennas • Power Adapter •...

  • Page 2: Configuring The Router

    LEDs Status Description Status Blinking (Green) Device status is working properly On (Green) Router is on. On/Sleep Router is at power saving mode. On (Green) Network device is connected Blinking Data access On (Green) Network device is connected LAN 1~4 Blinking Data access On (Green)
  • Page 3 Step 3 With another network cable, connect one end of the cable to your computer’s Ethernet port and connect the other end to one of the LAN ports of the router. (After setup finishes, you can remove the network cable between the computer and router if you want to use wireless connection.) Step 4 Plug the power adapter to the router and connect it to an electrical...
  • Page 4 Note: If the autorun menu does not show up on your monitor, please go to Computer CDROM drive Wizard, and execute “EZWizard.exe”. Step 9 Select your language and click Next. Step 10 Click on Wizard. Step 11 Please make sure your computer is connected to the LAN port of the router, and your modem is connected to the WAN port of the router.
  • Page 5 Step 13 Configure the SSID (wireless network name, i.e. myHome), Channel, Security and Key. It is suggested to select WPA2-PSK for best wireless security. Enter 8~63 characters into Key box, then click Next. Step 14 Click Next and the wizard will detect your WAN settings, or you can select your WAN type manually by checking “Let me select WAN service by myself”.
  • Page 6 For PPPoE settings, please enter the username and password provided by your ISP (Internet Service Provider). Note: Depending on the ISP, you may need to include the domain name with your username. Example: username@sbcglobal.net Step 16 Verify the settings you have configured. Click Next to save the settings and reboot the router.
  • Page 7 You will see the status of the router on the web configuration page brought up by the web browser. Valid numbers should be assigned to IP Address, Subnet Mask and Gateway, instead of all 0’s. Congratulations! Your router is configured successfully. Section 3 Connect to the Router Wirelessly You must configure your wireless computer in order to establish a wireless...

  • Page 8: Troubleshooting

    Step 2 Enter the key you configured in Step 13 if you have enabled the wireless security, then click OK. The wireless connection should be now established. Section 4 Troubleshooting A. Diagnosing problems from LED indicators: 1. If the WAN LED is off, but Status LED is lit, please check if the modem is powered on, and the network cable from the modem is plugged into the WAN port of the router.

  • Page 9: Technical Support

    Section 5 Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Website: www.airlink101.com *Theoretical maximum wireless signal rate derived from IEEE standard 802.11 specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.
