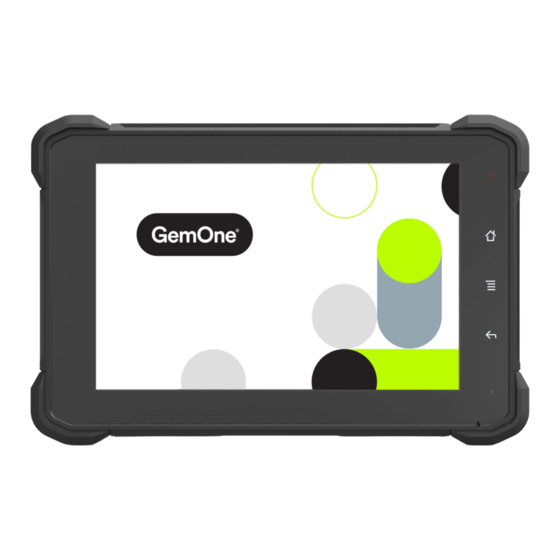

GemOne Sapphire V2SC Procedures Manual
Hide thumbs
Also See for Sapphire V2SC:
- Hardware installation (33 pages) ,
- Procedures manual (26 pages) ,
- Hardware operation manual (13 pages)
Related Manuals for GemOne Sapphire V2SC
Summary of Contents for GemOne Sapphire V2SC
- Page 1 Sapphire V2SC Scale Installation & Calibration Procedure Manual Version 1.1 - March 2024...
-
Page 2: Table Of Contents
Content 1 - Safety Precautions 2 - Introduction - Purpose - Scope 3 - Weight Sensor - Components Required - Installation of Transducer Electrical Specifications Electrical Connections Wiring Diagram 4 - Calibrating Weight Indicator - Hardware Required - Calibration Process Overview Procedure - Setting Overweight Alert... -
Page 3: Safety Precautions
Abnormal Conditions Should the transducer display become hot, start to emit smoke, or a strange odor; immediately turn the power off and contact GemOne. Continued usage is dangerous and may result in fire or electrical shock. Power Supply Do not install the transducer with any voltage other than that specified. -
Page 4: Introduction
2 - Introduction Purpose This document is to be used as a guide to install the hydraulic pressure transducer with a Sapphire V2SC. This can be installed onto various types of equipment, whether they are internal combustion or electric equipment. Scope This document is to be used by a trained and authorized person(s) with the necessary PPE as a guide for the installation, operation, and management of the transducer. -
Page 5: Weight Sensor
Connected To Black Ground Black wire from 3 pin male connector. Power IN Yellow wire from 3 pin male connector. White Power OUT Connect to the red analog input wire found on the main display harness. Sapphire V2SC Hardware Operation... -
Page 6: Wiring Diagram
Sapphire V2SC Hardware Operation... -
Page 7: Calibrating Weight Indicator
The first point will be without any weight. This steps the reference point for the known weights. Lifting the forks above the set point will read a higher weight. Lowering the forks below the set point will read a lower weight. Sapphire V2SC Hardware Operation... -
Page 8: Procedure
6. Wait 10 seconds before pressing the Set button. The distance between the top marker and the bottom marker should be 6 inches or 15cm. Lower the weight at a steady rate. Sudden drops will cause big fluctuations in the weight measured. Sapphire V2SC Hardware Operation... - Page 9 9. Raise up the forks so the sticker aligns with the top sticker on the cylinder then slowly lower the forks so the sticker aligns with the bottom sticker on the cylinder. 10. Wait 10 seconds before pressing the Set button. 11. Enter 1000lb and hit set. Sapphire V2SC Hardware Operation...
-
Page 10: Setting Overweight Alert
Any reading over the set threshold, will prompt the user they are overweight while closing a normally open relay. The normally open relay can be connected to certain areas of the equipment to prevent or activate a certain feature. Please contact GemOne staff for additional information. Sapphire V2SC Hardware Operation... -
Page 11: Setting Debounce
Log into the sapphire module using an operator or driver code to access the weight screen. This screen will change values as the forks are raised and lowered. It is important to wait 10 seconds before reading the weight. This allows the weight to stabilize. Sapphire V2SC Hardware Operation... -
Page 12: Using The Scale
5 - Using the Scale The Sapphire V2SC scale can be accessed by logging into the device under a driver. The Weight Icon will load the scale screen. Using the reference points from earlier, raise the forks 6 inches or 15 cm above the reference point, slowly lower the weight, and wait 10 seconds before taking the reading. -
Page 13: Support
+32 56 93 01 08 +1 (844) 656-1156 support_emea@gemone.com techservice@gemone.com EMEA Spinnerijstraat 99/23 US 16355 South Elm Rd 8500 Kortrijk Olathe, Kansas 66062 Belgium ASEA +61 1300 848 415 support_apac@gemone.com 735 Boundary Road Richlands, QLD 4077 Australia Sapphire V2SC Hardware Operation... - Page 14 US: techservice@gemone.com EMEA: support_emea@gemone.com ASEA: support_apac@gemone.com www.gemone.com ©2024 - GemOne NV, Spinnerijstraat 99/23, BE- 8500 KORTRIJK. All rights reserved. No part of this publication may be reproduced or communicated in any form or by any means, electronic or mechanical, including copying, recording or use in an information storage or retrieval system, without prior and explicit permission of GemOne NV.
