Sapphire V2SC
Hardware Operation
Procedure Manual
Version 1.0 - March 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sapphire V2SC and is the answer not in the manual?

Questions and answers

Related Manuals for GemOne Sapphire V2SC

Summary of Contents for GemOne Sapphire V2SC

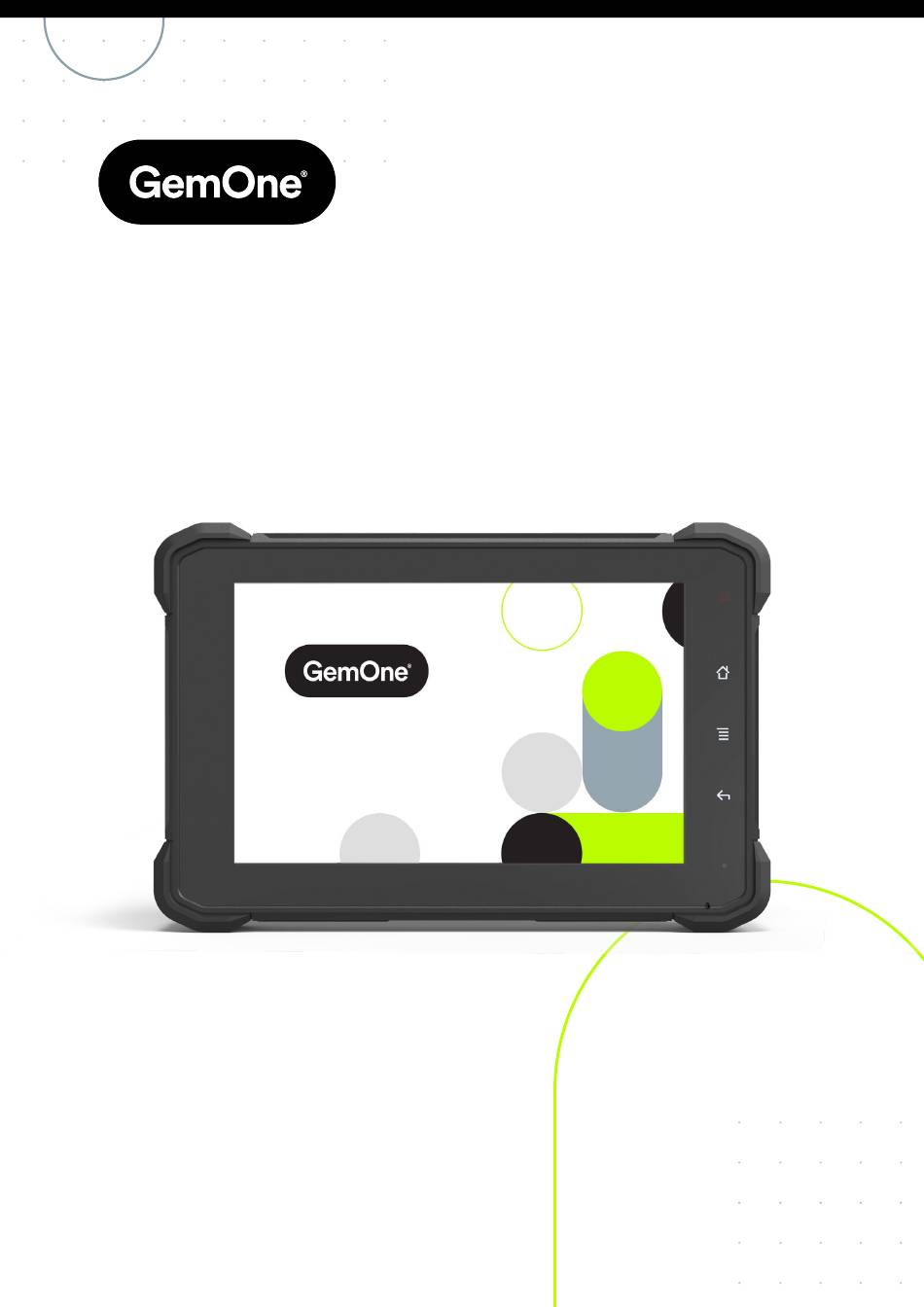

  • Page 1 Sapphire V2SC Hardware Operation Procedure Manual Version 1.0 - March 2024...

  • Page 2: Table Of Contents

    3 - Logging In - RFID Access 4 - Answering Checklist Questions 5 - Logging out of the Equipment 6 - Locking a Sapphire V2SC Module - Lockout via Impact - Changing Impact Threshold - Lockout via Critical Question - Lockout via Lockout Feature...

  • Page 3: Introduction

    1 - Introduction Purpose The purpose of this document is to explain how to use the Sapphire V2SC to allow access to a piece of equipment. Scope This will affect personnel who use the Sapphire V2SC module to access equipment.

  • Page 4: Turning On The Equipment

    Do not attempt to start the equipment without logging into the Sapphire module. Once powered on, the Sapphire Logo will appear on the screen. It will say TOUCH SCREEN TO START on the display. Touch the display to bring up the keypad. Sapphire V2SC Hardware Operation...

  • Page 5: Logging In

    The module will try to authenticate the attempt by connecting to the server. Contact GemOne staff if the PIN or card does not work. If access is granted and a checklist is due, the module will go directly to the checklist questions.

  • Page 6: Rfid Access

    Pre-start questions must be answered before the machine can be started. The machine can be started after pre-start questions have been completed. Post-start questions must be answered after the machine has been started. The back arrow can be used to go back to the previous question. Sapphire V2SC Hardware Operation...

  • Page 7: Logging Out Of The Equipment

    5 - Logging out of the Equipment This is controlled via the ignition sense from the Sapphire V2SC cable. Assuming the GemOne yellow wire is connected to the key switch, turning the key to Off will log the operator out of the module.

  • Page 8: Locking A Sapphire V2Sc Module

    6 - Locking a Sapphire V2SC Module The Sapphire V2SC module will lock out if any of the following occur: 1. Impact exceeding threshold. 2. Answering critical question unexpectedly. 3. Using Lockout feature. Lockout via Impact If an impact occurs above the set threshold, the following image will appear on the...

  • Page 9: Lockout Via Critical Question

    An override code must be used to unlock the equipment. Lockout via Lockout Feature The Sapphire V2SC module can be locked out via the Lockout feature if a supervisor code is used to log into the screen. 1. Log in as a Supervisor.
  • Page 10 If yes is selected again, the module will be locked out. The following will occur when locked out: • Normal driver codes will not allow access to the module. • An override code must be used to unlock the equipment. Sapphire V2SC Hardware Operation...

  • Page 11: Unlocking A Sapphire V2Sc Module

    Ensure to turn the key Off to log out of the session. A checklist will be required for the first operator that logs back into the module if it was locked out. Sapphire V2SC Hardware Operation...

  • Page 12: Support

    +32 56 93 01 08 +1 (844) 656-1156 support_emea@gemone.com techservice@gemone.com EMEA Spinnerijstraat 99/23 US 16355 South Elm Rd 8500 Kortrijk Olathe, Kansas 66062 Belgium ASEA +61 1300 848 415 support_apac@gemone.com 735 Boundary Road Richlands, QLD 4077 Australia Sapphire V2SC Hardware Operation...
  • Page 13 US: techservice@gemone.com EMEA: support_emea@gemone.com ASEA: support_apac@gemone.com www.gemone.com ©2024 - GemOne NV, Spinnerijstraat 99/23, BE- 8500 KORTRIJK. All rights reserved. No part of this publication may be reproduced or communicated in any form or by any means, electronic or mechanical, including copying, recording or use in an information storage or retrieval system, without prior and explicit permission of GemOne NV.
