CLEAR PRO KD 3/4" - 1 1/4"
KERZENFILTER MIT DRUCKMINDERER
MONTAGE- UND BETRIEBSANLEITUNG
CARTRIDGE FILTER WITH PRESSURE REDUCER
OPERATING INSTRUCTIONS
CLEAR PRO K 3/4" - 1 1/4"
KERZENFILTER
MONTAGE- UND BETRIEBSANLEITUNG
CARTRIDGE FILTER
OPERATING INSTRUCTIONS
DE
EN

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLEAR PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Conel CLEAR PRO

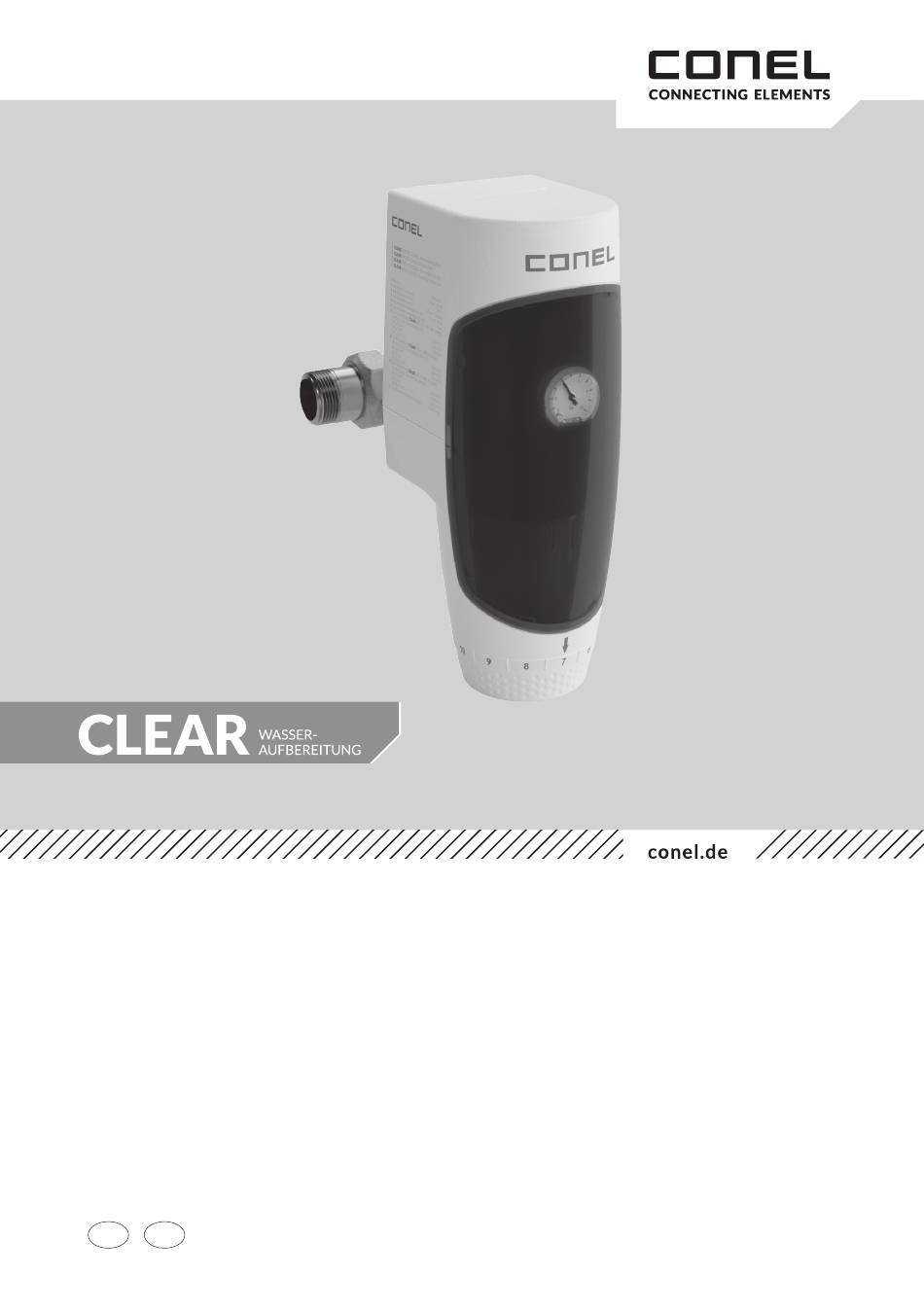

  • Page 1 CLEAR PRO KD 3/4“ - 1 1/4“ KERZENFILTER MIT DRUCKMINDERER MONTAGE- UND BETRIEBSANLEITUNG CARTRIDGE FILTER WITH PRESSURE REDUCER OPERATING INSTRUCTIONS CLEAR PRO K 3/4“ - 1 1/4“ KERZENFILTER MONTAGE- UND BETRIEBSANLEITUNG CARTRIDGE FILTER OPERATING INSTRUCTIONS...
  • Page 2: Table Of Contents

    VERWENDUNGSBEREICH VERWENDETE SYMBOLE ANFORDERUNGEN VERWENDETE WERKSTOFFE AUSFÜHRUNG MONTAGE 6.1 Anschlussflansch montieren 6.2 Kerzenfilter CLEAR PRO KD / Kerzenfilter CLEAR PRO K montieren AUSGANGSDRUCK EINSTELLEN WARTUNG 8.1 Manuelle Absperrung 8.2 Leckageschutz (optional) 8.3 Wechsel des Filterelementes 8.4 Wartung Druckminderer TECHNISCHE DATEN...
  • Page 3: Verwendungsbereich

    VERWENDUNGSBEREICH Der Kerzenfilter CLEAR PRO KD nach DIN EN 13443-1 / DIN EN 1567 und der Kerzenfilter CLEAR PRO K nach DIN EN 13443-1 werden als Armaturen für Trinkwasserinstallationen nach DIN 1988 verwendet. VERWENDETE SYMBOLE Die in der Betriebsanleitung verwendeten Symbole bzw. Sicherheitshinweise sind wie folgt zu verstehen: Achtung! Dieses Zeichen weist auf einen Punkt hin, der für einen zuverlässigen Betrieb sorgt,...
  • Page 4: Ausführung

    Metallische Werkstoffe erfüllen die Anforderungen der DIN 50930-6 („Beeinflussung der Trinkwasser- beschaffenheit“) und die Bewertungsgrundlage für metallene Werkstoffe, kurz: UBA BWGL-Metalle, des Umweltbundesamtes. AUSFÜHRUNG CLEAR PRO K ist ein Feinfilter (Abb. 5.1) mit / auswechselbarer Filtereinheit / Flansch [a] / Monatsring [b] (markiert nächste Filterwartung)
  • Page 5: Kerzenfilter Clear Pro Kd / Kerzenfilter Clear Pro K Montieren

    6.2 Kerzenfilter CLEAR PRO KD / Kerzenfilter CLEAR PRO K montieren Es ist zu beachten, dass die Hauptachse senkrecht ausgerichtet ist (Abb. 6.3). Die Installation darf nur von geeignetem Fachpersonal durchgeführt werden. Den Filter in Pfeilrichtung [a] an den Flansch heranführen und positionieren Innensechskant-Schrauben M6 x 25 [b] mit dem Sechskant-Stiftschlüssel [c] in...
  • Page 6: Wartung

    WARTUNG Vor Beginn der Wartungsarbeiten müssen alle bauseitigen Absperrungen vor und hinter dem CLEAR PRO KD oder dem CLEAR PRO K geschlossen werden. Darüber hinaus ist immer eine Druckentlastung erforderlich. Zusätzlich muss die Absperrung des Filters geschlossen werden, wie nachfolgend beschrieben.
  • Page 7: Wechsel Des Filterelementes

    8.3 Wechsel des Filterelementes Das Filterelement muss bei einer Verringerung des Wasserdurchflusses, jedoch spätestens alle 6 Monate, gemäß DIN EN 806-5 getauscht werden, um einen einwandfreien Betrieb zu gewährleisten. Gemäß Kapitel 8.1 die Absperrung schließen Druckentlastung durch Öffnen einer beliebigen Zapfstelle nach dem Filter herbeiführen, eine geringe Wassermenge entnehmen und Zapfstelle wieder schließen Positionieren eines geigneten Auffangbehälters, wie z.
  • Page 8: Wartung Druckminderer

    25 Nm eingehalten wird. 8.4 Wartung Druckminderer Bei dem Kerzenfilter CLEAR PRO KD ist der eingestellte Ausgangsdruck gemäß DIN EN 806-5 jährlich zu überprüfen und die Patrone ggf. zu reinigen oder zu ersetzen. Gehen Sie wie folgt vor: Gemäß...
  • Page 9 Abb. 8.14: Kartusche [e] mit dem Gleitring [f] entnehmen die Kartusche [e] unter klarem, kalten Wasser reinigen, ggf. austauschen (siehe Kapitel 11 Ersatzteile) Kerzenfilter CLEAR PRO KD in umgekehrter Reihenfolge montieren und gemäß Kapitel 6.2 an den Flansch schrauben ACHTUNG - NICHT VERGESSEN: Nach vollständigem Zusammenbau Anleitung Kapitel 7 Ausgangsdruck einstellen folgen Abb.
  • Page 10: Technische Daten

    Durchlassweite oben 125,0 µm Druckminderer einstellbar von/bis 1,5 - 6,0 bar Druckminderer werksseitig eingestellt 4,0 bar Durchflussleistung Kerzenfilter CLEAR PRO KD DN 20 (3/4“) DN 25 (1“) DN 32 (1 1/4“) Δp 1,1 bar, nach DIN EN 1567 2,27 m³/h 3,60 m³/h...
  • Page 11: Abmessungen

    ABMESSUNGEN Abb. 10.1 Abmessungen Kerzenfilter CLEAR PRO KD und Kerzenfilter CLEAR PRO K DN 20 (3/4“) DN 25 (1“) DN 32 (1 1/4“) 164,0 mm 164,0 mm 167,0 mm 162,0 mm 170,0 mm 196,0 mm 100,0 mm 100,0 mm 110,0 mm...
  • Page 12: Ersatzteile

    ERSATZTEILE Abb. 11.1 Ersatzteile Kerzenfilter CLEAR PRO KD DN 20 DN 25 DN 32 Pos. Bezeichnung (3/4“) (1“) (1 1/4“) CLEAR Manometer 10 bar YSK233200901 YSK233200901 YSK233200901 CLEAR Druckminderer DN20-32 YSK233200903 YSK233200903 YSK233200903 CLEAR Ersatzfilterelement (2 St.) YSK233200941 YSK233200941 YSK233200941...
  • Page 13: Table Of Contents

    SYMBOLS USED REQUIREMENTS MATERIALS USED DESIGN MOUNTING 6.1 Mounting conncection flange 6.2 Mounting CLEAR PRO KD cartridge filter / CLEAR PRO K cartridge filter SETTING OUTPUT PRESSURE MAINTENANCE 8.1 Manual shut-off 8.2 Leakage protection (optional) 8.3 Changing the filter element 8.4 Maintenance of the pressure reducing valve...
  • Page 14: Field Of Application

    / The room for installation must be dry and frost-free. / The CLEAR PRO KD as well as the CLEAR PRO K must not be exposed to strong impacts. / A shut-off valve must be installed upstream of the cartridge filters! This allows the water supply to be interrupted during installation, maintenance or repair.
  • Page 15: Design

    UBA BWGL-Metalle, of the Federal Environment Agency. DESIGN CLEAR PRO K is a cartridge filter (Fig. 5.1) with / exchangeable filter unit / flange [a] / monthly ring [b] (marks next filter maintenance)
  • Page 16: Mounting Clear Pro Kd Cartridge Filter / Clear Pro K Cartridge Filter

    6.2 Mounting CLEAR PRO KD cartridge filter / CLEAR PRO K cartridge filter Note that the main axis is aligned vertically (Fig. 6.3) Installation may only be carried out by suitable qualified personnel. Move the filter towards the flange in the...
  • Page 17: Maintenance

    Fig. 8.1: Release the flap [a] by pressing lightly on the two snap hooks [b] on the outer edge. Remove the flap. The handle [c] is now freely accessible. It is used to manually shut off the CLEAR PRO KD cartridge filter and the CLEAR PRO K cartridge filter.
  • Page 18: Changing The Filter Element

    8.3 Changing the filter element The filter element must be replaced in accordance with DIN EN 806-5 when the water flow is reduced, but at the latest every 6 months, in order to ensure proper operation. close the shut-off according to chapter 8.1 relieve the pressure by opening a tap downstream of the filter, remove a small amount of water and close it again position a suitable collection container, such as a bucket,...
  • Page 19: Maintenance Of The Pressure Reducing Valve

    8.4 Maintenance of the pressure reducing valve With the CLEAR PRO KD cartridge filter, the set outlet pressure must be checked annually in accor- dance with DIN EN 806-5 and the cartridge cleaned or replaced if necessary. Proceed as follows:...
  • Page 20 Fig. 8.14: Remove cartridge [e] with the slide ring [f] clean the cartridge [e] under clear, cold water, replace if necessary (see chapter 11 Spare parts) mount the CLEAR PRO RD domestic water unit in reverse order and screw it to the flange according to chapter 6.2 ATTENTION - DON‘T FORGET:...
  • Page 21: Technical Data

    Pressure reducer adjustable from/to 1.5 - 6.0 bar Pressure reducer adjusted at the factory 4.0 bar Flow rate CLEAR PRO KD cartridge filter DN 20 (3/4“) DN 25 (1“) DN 32 (1 1/4“) Δp 1,1 bar, acc. to DIN EN 1567 2.27 m³/h...
  • Page 22: Dimensions

    DIMENSIONS Fig. 10.1 Dimensions CLEAR PRO KD cartridge filter and CLEAR PRO K cartridge filter DN 20 (3/4“) DN 25 (1“) DN 32 (1 1/4“) 164.0 mm 164.0 mm 167.0 mm 162.0 mm 170.0 mm 196.0 mm 100.0 mm 100.0 mm 110.0 mm...
  • Page 23: Spare Parts

    SPARE PARTS Fig. 11.1 Spare parts CLEAR PRO KD cartridge filter DN 20 DN 25 DN 32 Item Description (3/4“) (1“) (1 1/4“) CLEAR Pressure gauge 10 bar YSK233200901 YSK233200901 YSK233200901 CLEAR Pressure reducer DN20-32 YSK233200903 YSK233200903 YSK233200903 CLEAR Spare filter element (2 pcs.)
  • Page 24 CONEL DER BESTE FREUND DES INSTALLATEURS. Montage- und Bedienanleitung CLEAR PRO KD und CLEAR PRO K/1.0/07-23/© CONEL GmbH / Margot-Kalinke-Straße 9 / 80929 München Sämtliche Bild-, Produkt-, Maß- und Ausführungsangaben entsprechen dem Tag der Drucklegung. Technische Änderungen vorbehalten. Modell- und Produktansprüche können nicht geltend gemacht werden.
