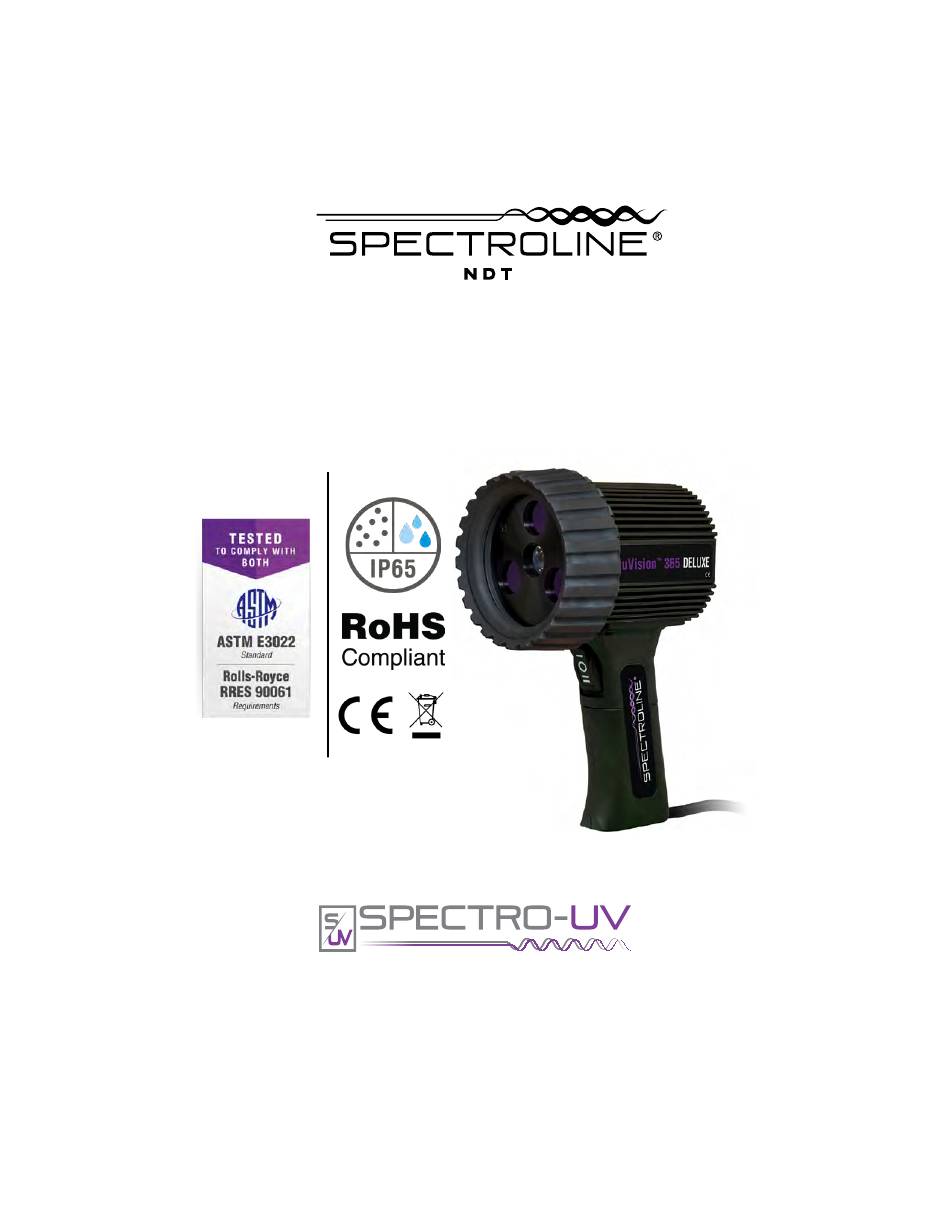

- Page 1 uVision™ Series UV-A/White Light LED NDT Inspection Lamp Part No. UV-365SBLC; UV-365MSBLC 06/22 AM17029ML-7 PRINTED U.S.A GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Operation
WARNING UV emitted from this product. Avoid eye and skin exposure to unshielded products. FOR PROFESSIONAL EXAMINATION USE ONLY IMPORTANT SAFETY INSTRUCTIONS (Read all instructions) Do not operate the uVision™ Series UV-A/White Light LED NDT Inspection Lamp • (UV-365SBLC/UV-365MSBLC) if the lamp has been damaged. Do not look directly into the light. -
Page 3: Environmental Specifications
DISASSEMBLING THE FILTER PROTECTOR FOR MAINTENACE The outer rubber cover/filter holder may be removed periodically to clean the Borofloat ® glass filter. To disassemble the Borofloat Filter Protector (FP-600), first remove the front ® rubber cover/filter holder. Peel the rubber cover/filter holder toward the front portion of the lamp. - Page 4 • The indicator light on the charger will show Red while it is charging and Green when the battery is charged. A full charge will take approximately 2 hours. • After the battery is charged, unplug the charger from the outlet first. Unplug the charger from the battery pack.
- Page 5 UV-365SBLC Technical Details KEY FEATURES • Nominal steady state intensity of 4,500 µW/cm at 15 inches (38cm). • Large 6-inch diameter coverage area at 15 inches (38cm) with a minimum UV-A intensity of 1,200 µW/cm (ASTM E3022-15 / Rolls Royce RRES 90061). •...
- Page 6 UV-365SBLC POWER SUPPLY INFORMATION CORD PART LAMP COUNTRY VOLTAGE LENGTH NUMBER UV-365SBLC 130260 UV-365SBLC/F 130261 UV-365SBLC/FA 130262 UV-365SBLC/FB 130263 UV-365SBLC/FBR 220-240 8’ 130501 CORD PART LAMP COUNTRY VOLTAGE LENGTH NUMBER UV-365SBLC/20 130264 UV-365SBLC/20/F 130265 UV-365SBLC/20/FA 130324 UV-365SBLC/20/FB 130325 UV-365SBLC/20/FBR 220-240 130500 *All power cords include the lower portion of the handle.
- Page 7 TECHNICAL SPECIFICATIONS uVision™ Series UV-365MSBLC UV-A (365nm) and white light Height 7.5 inches Length 4.25 inches Width 3.75 inches Weight 4.29lb. (1,946 g) with power supply; 1.94 lb. (880 g) without power supply. Light Source 3 UV-A LEDs, 1 white light LED ELECTRICAL SPECIFICATIONS Input: 100-240V AC, 0.9, 50-60 Hz Output: 15V DC, 2.4A...
- Page 8 UV-365SBLC EXPLODED VIEW AND REPLACEMENT PARTS Replacement Parts ITEM PART NO. DESCRIPTION FP-600 BOROFLOAT FILTER PROTECTOR 128196 FRONT COVER PLATE / FILTER ASSEMBLY 128385 FRONT COVER GASKET UL-110 UV-A LENS 130336 LAMP HOUSING ASSEMBLY 130260 POWER SUPPLY, 8', 120V, US 130261 POWER SUPPLY, 8', 230V, EU 130262...
- Page 9 UV-365MSBLC EXPLODED VIEW AND REPLACEMENT PARTS Replacement Parts ITEM PART NO. DESCRIPTION FP-600 BOROFLOAT FILTER PROTECTOR LIGHT ASSEMBLY 128196 FRONT COVER PLATE / FILTER ASSEMBLY ITEM PART NO. DESCRIPTION FP-600 FILTER PROTECTOR ASSEMBLY 128385 FRONT COVER GASKET 128196 FRONT COVER PLATE FILTER ASSEMBLY UL-110 UV-A LENS 128385...
