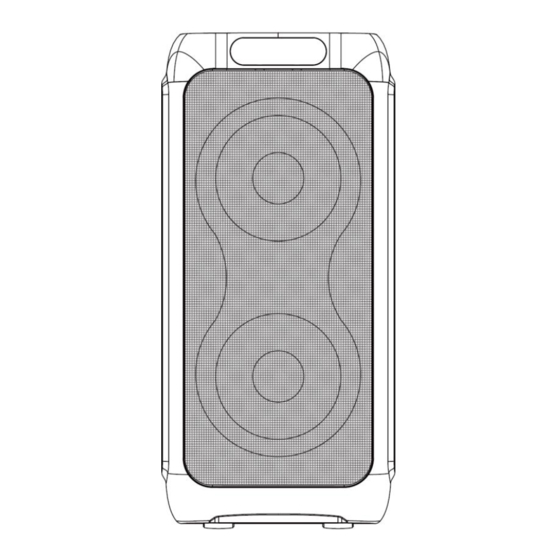

- Page 1 QULA-28 Active Portable PA with LED Light Show Order ref: 178.882UK User Manual VERSION 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing a QULA-28 for your sound system. This active portable PA has been designed to provide powerful sound output with a dynamic light show for commercial and home activities. Please read the following guide to get the most from your product and avoid incorrect operation.
- Page 3 Rear panel Power switch – Battery / Off / AC Fig.8 (C8) mains power inlet 12Vdc power inlet terminals FM Antenna Top panel Microphone volume control USB2 port TF or microSD card slot USB1 port +5V power output Line in - 3.5mm stereo jack Wired Mic input - 6.3mm mono jack Guitar input - 6.3mm mono jack Main volume control...
- Page 4 Connections If a wired microphone or guitar is to be used with the QULA-28 unit, these may be connected to the relevant 6.3mm jack input (10, 11) on the top panel. For a line level input, this may be connected by 3.5mm mini jack (9). Your QULA-28 can operate from battery power when the power switch (1) is set to BAT.
- Page 5 Similarly, inserting a microSD (or TF) card into the TF card slot (7) will start playback of mp3 tracks stored on it (ensure that the card is formatted to FAT32 and no larger than 32GB) Pressing the MODE button (13) steps through the input types for the media player. These are USB, TF, Bluetooth®, FM tuner and Aux input.
- Page 6 Select one of these options and use the rotary VOLUME control to adjust the specific setting. For MIC PRIORITY, this sets the microphone to override the music playback when selected. LED Light Show Pressing the LIGHT button will step through the pre-set multi-colour LED light show patterns, which are also sound-activated for additional dynamic effect.
- Page 7 The full text of the EU declaration of conformity for 178.882UK is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/178882UK%20CE.pdf Errors and omissions excepted. Copyright© 2023. AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, QULA-28 User Manual...
