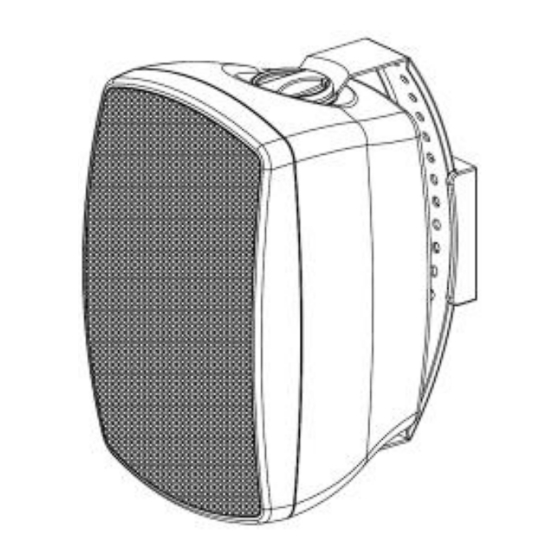

Avsl adastra BHV Series User Manual

BHV SERIES
Background Speakers
Introduction
Thank you for choosing the Adastra BHV series speakers for your sound installation.
These durable cabinets deliver reliable, high quality sound output for music and
announcements. Please read the following guidance notes for correct installation.
Contents
BH series background speaker
Steel speaker bracket
Plastic wall plate
Specifications
Model BH3V
White stock ref. 952.610UK
Black stock ref. 952.611UK
Impedance 16Ω
IP rating IP44
Dispersion 120°
100V tappings 2, 4, 6, 8W
Power max 60W
Power rms 30W
Freq. response 110Hz - 20kHz
LF driver
75mmØ (3")
HF driver 13mmØ (0.5")
Sensitivity 86dB
Dimensions 164*107*102mm
Weight 1.06kg
2 x cross-head screws
2 x speaker screw caps
BH4V BH5V
952.612UK 952.614UK
952.613UK 952.615UK
2.5, 5, 10, 20W 5, 10, 20, 30W
60W 100W
30W 50W
100Hz - 20kHz 80Hz - 20kHz
100mmØ (4") 135mmØ (5.25")
13mmØ (0.5") 13mmØ (0.5")
88dB 89dB
195*127*126mm 255*163*160mm
1.64kg 2.45kg
User Manual
BH6V BH8V
952.616UK 952.618UK
952.617UK 952.619UK
10, 20, 30, 40W 20, 30, 40, 50W
140W 160W
70W 80W
50Hz - 20kHz 30Hz - 20kHz
165mmØ (6.5") 200mmØ (8")
25mmØ (1") 25mmØ (1")
90dB 90dB
290*195*190mm 378*244*240mm
3.27kg 4.67kg
