- Page 1 PGA2.1ZpZtAoGb / PG310300B INSTRUCTION MANUAL ELECTRIC-GAS HOB IO-HOB-1119 / 8508077 (11.2021 / v2)
-
Page 2: Basic Information
DEAR CUSTOMER, Your hob is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality. Before using the appliance, please read these Operating Instructions carefully By following these instructions carefully you will be able to avoid any problems in using the appliance. -
Page 3: Table Of Contents
TABLE OF CONTENTS Basic Information....................2 Safety instructions....................4 Description of the appliance..............9 Specification..................9 Installation (instructions for the installer)............10 Operation.........................17 Cleaning and maintenance..................21 Troubleshooting.....................23... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS FOR USE Note.The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concern-... - Page 5 SAFETY INSTRUCTIONS FOR USE Note.Do not use unsuitable hob guards that prevent children from accessing hob. Use of unsuitable hob guards can cause accidents. Caution: The cooking process has to be supervised. A short term cooking process has to be supervised continuously. Warning: Use only hob guards designed by manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob...
- Page 6 NOTES ON SAFETY ● Do not allow young children and persons who have not read the operating instructions to use the appliance. ● IF YOU SUSPECT A GAS LEAK, DO NOT: light matches, smoke, turn on or off any electrical devices (door bell, light switch, etc.) and use other electrical or mechanical equipment that can produce an electrical or impact spark.
- Page 7 HOW TO SAVE ENERGY Using energy responsibly not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: ● Use proper pans for cooking. Pans with thick, flat bases can save up to 1/3 on electric energy.
- Page 8 DISPOSAL OF THE APPLIANCE UNPACKING The appliance was packed In accordance with European to protected it from damage Directive 2012/19/UE and Pol- during of transport. After ish legislation regarding used unpacking, please dispose electrical and electronic goods, of all elements of packaging this appliance is marked with in a way that will not cause the symbol of the crossed-out...
-
Page 9: Description Of The Appliance

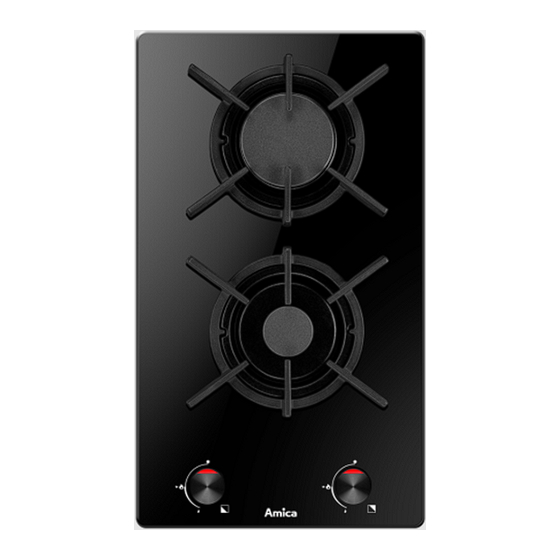

DESCRIPTION OF THE APPLIANCE Gas hob 1,2 - burners 3 - grids 4 - burner knobs SPECIFICATION height 52 mm depth 520 mm width 290 mm weight of the appliance 5,5 kg The appliance is equipped with burners: 1 - large burners, heat load - 2,8 kW 2 - small burner, heat load - 1,0 kW... -
Page 10: Installation (Instructions For The Installer)
INSTALLATION The following instructions are intended for a qualified professional installer. These instructions are intended to provide the most professional installation and maintenance of the appliance. l Before you install the appliance, make sure that the local distribution conditions (gas type and pressure) and the appliance configuration is appropriate. l Configuration details are given on the appliance nameplate. - Page 11 INSTALLATION Install gas hob B/B* 500x20 mm 500x10 mm 500x10 mm min 30 mm *optional...
- Page 12 INSTALLATION ● prepare an opening in the worktop of a kitchen cabinet, as per the installation drawing ● connect the hob to a gas and electrical system in accordance with the instructions supplied, ● loosely attach fixing brackets to the bottom of the hob, ●...
- Page 13 INSTALLATION The appliance has an G 1/2" threaded pipe Tips for the installer connector to connect it to the gas system. The LPG (propane-butane) hob version has The installer must: the connector terminated with a hose tip Have appropriate qualification ●...
- Page 14 INSTALLATION Adapt the hob to a particular type of gas This may be performed by an installer with the appropriate qualifications only. If the gas, which the hob will be supplied with is different from the gas type specified by the manufacturer, i.e.
- Page 15 INSTALLATION Somipress burner. (indicated "Somipress" on the burner body) Burner Type of gas auxiliary medium large G20 2H 20 mbar 0,72 0,98 1,17 0,55 + 2 x 0,75 G20 2H 25 mbar G30 3B/P 37 mbar 0,52 0,67 0,83 0,37 + 2 x 0,55 Once converted, place a sticker indicating the gas type for which the appliance is intended.
- Page 16 INSTALLATION Adjust the valves To adjust the valves turn the burner knob to "economic flame" position and ignite the flame. For COPRECI valves, remove the hob and adjust the size of an economic flame with a screwdriver. In order to check the flame, heat up the burner on a full flame for about 10 min., and then turn the burner knob to an economic flame position.
-
Page 17: Operation
OPERATION Cookware lid: Burner operation Lid prevents heat from escaping and thus reduces heating time. To achieve significant energy savings, use the appliance as instructed in these operating instructions, make the appropriate adjustments and use suitable pots. Do not use cookware that protrude Potential energy savings: over the edges of the hob. - Page 18 OPERATION Using the hob equipped with igniter knobs Repeat the above step if flame does ("Zp" model) not ignite. If flame is extinguished, the flame- ● push down the knob of a selected burner failure device will cut off gas supply until you feel resistance and turn left to within about 60 seconds.
- Page 19 OPERATION Adjust flame Flame from a properly adjusted burner is pale blue with a clearly outlined inner cone. You can adjust flame by setting the knob to different positions. large flame small flame ( "economic") lburner off (no gas supply) Wrong Right This example shows you and to operate the...
- Page 20 OPERATION In the event a gas leak risk 1 gas system 2 gas system shut-off valve A valve "open" B valve "closed" In the event of a fault ● turn off the burners ● close the gas system shut-off valve ●...
-
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE Make sure that burner is correctly re- Proper routine maintenance and cleaning assembled after cleaning. of the appliance can significantly extend its trouble-free operation. CORRECT B e f o r e c l e a n i n g o r o t h e r maintenance work, always unplug the appliance or use the main electrical system circuit breaker... - Page 22 CLEANING AND MAINTENANCE Do not use any descaling agents to Cleaning after each use clean the hob. ● Wipe light stains with a damp cloth without Special cleaners are available in supermar- detergent. The use of dishwashing liquid kets, electrical and home appliance shops, may cause a bluish surface discoloura- drug stores, as well as retail food shops and tion.
-
Page 23: Troubleshooting
TROUBLESHOOTING In the event of any fault: ● turn off the appliance ● disconnect the power supply ● have the appliance repaired ● based on the instructions given in the table below, some minor issues can be corrected by the user. Please check the consecutive points in the table before you refer the repair to customer service.
